• Radiofyrar FBO Instrument Landing Charts

Fernmeldebetriebsordnung für die Verkehrsflugsicherung (FBO) Bordausgabe, 1938
  - Teil 2 Anhang XVI Schlechtwetterbestimmungen - mit Instrumentlandekarten, Europa   - New webpage, Jan 2020 -

Telecommunication Manual for Civil Aviation, Germany 1938, Onboard-version
  - Part 2 Section XVI Bad Weather Regulations - with Instrument Landing Charts, Europe

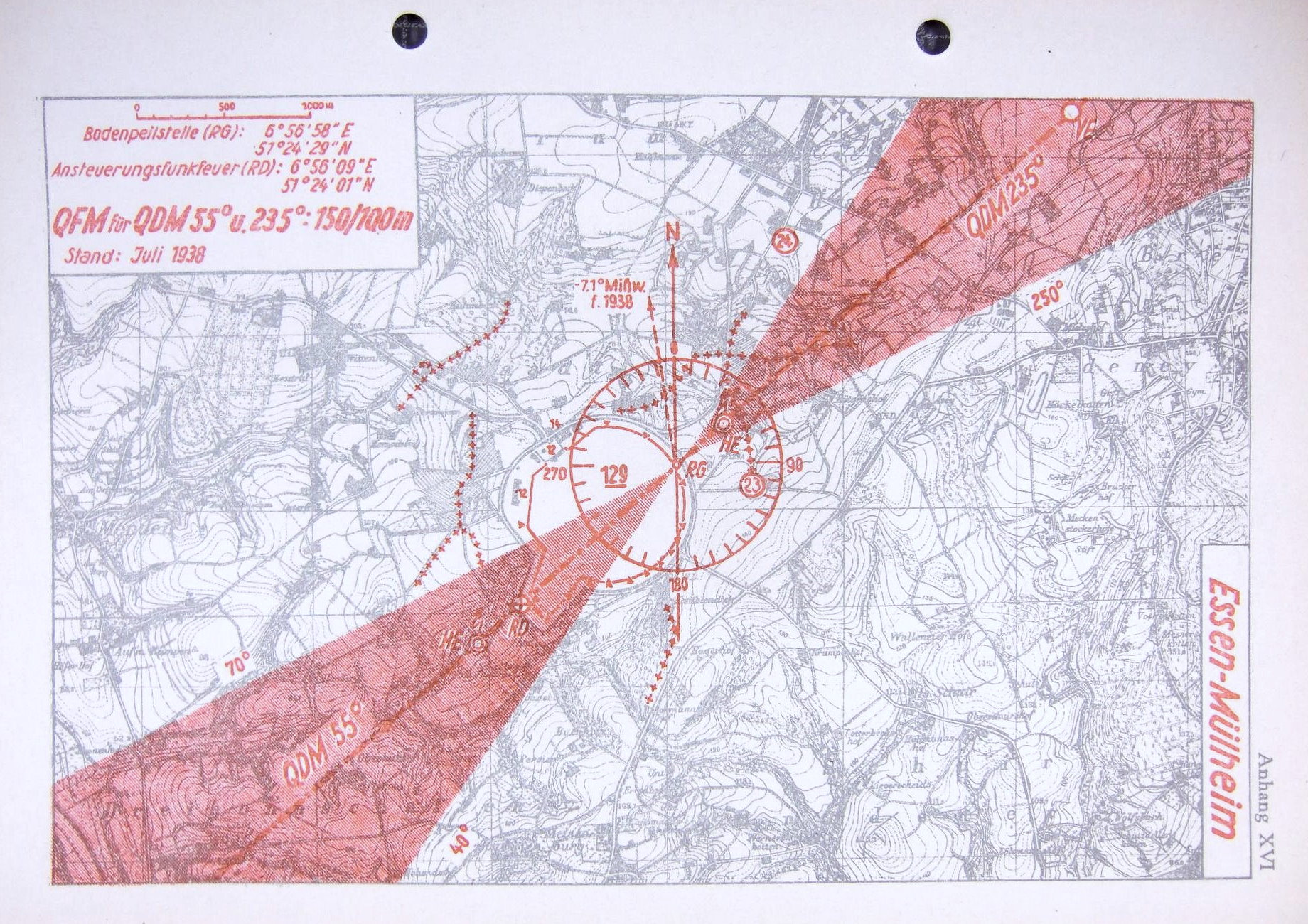

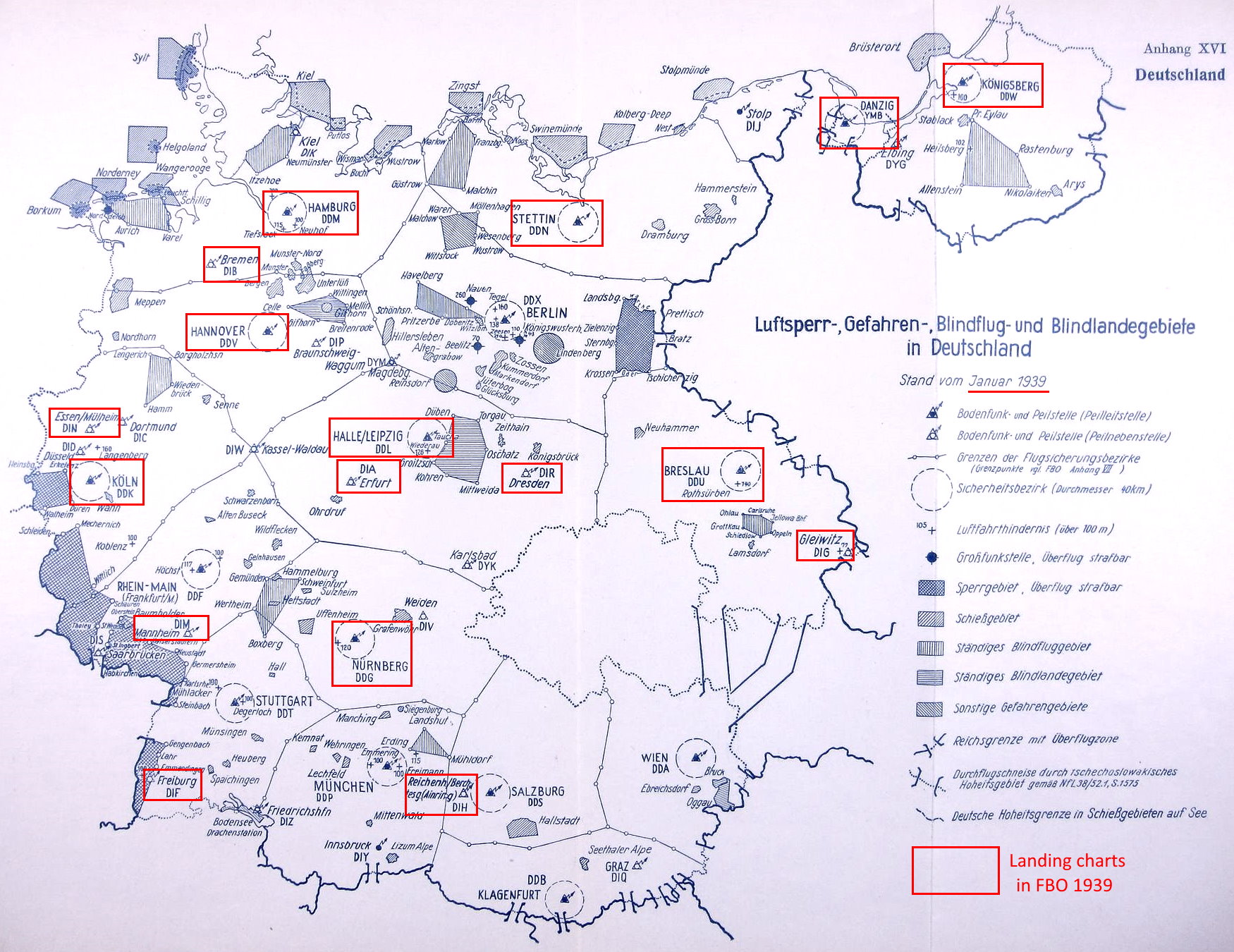

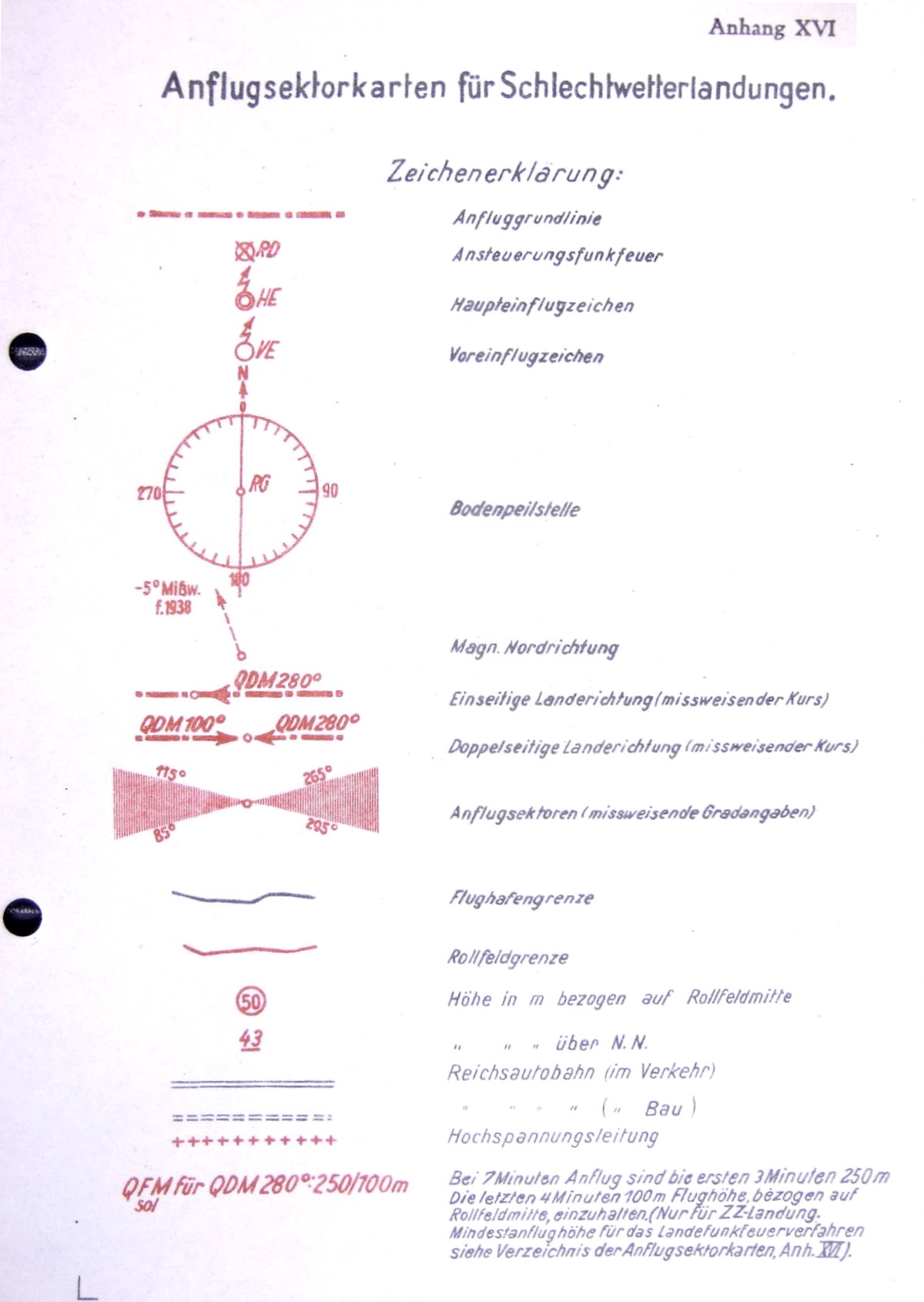

• FBO Teil 2 Anhang XVI,  all 99 pages, pdf file 49MB FBO 1938 ca 250 pages, 20x25cm Copy in Military Archives Stockholm	Landing charts in FBO, DE map 1939	Sample: Essen-Mülheim  - Click for larger images -	Legend. QDM=heading QFM=height above airport

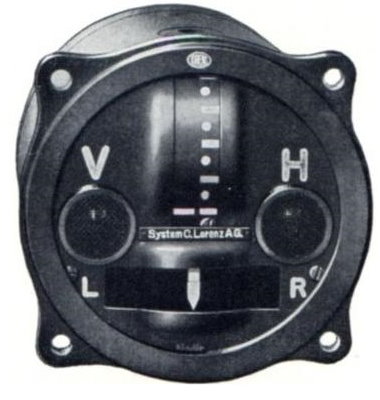

Lorenz Landefunkfeuer, = Standard Beam Approach, SBA - was an early blind landing system. It had horizontal beams, but no glidepath beams, as later ILS. Photos Refs b. and c. • System description of Lorenz system, SBA, in Swedish	Lorenz beam sender, gives   two horizontal lobes	Landing principles: Keep height H until V,   then descend at specified rate.	Outer/Inner radio markers (V,H),   and onboard instrument  V,H lamps Left/Right needle

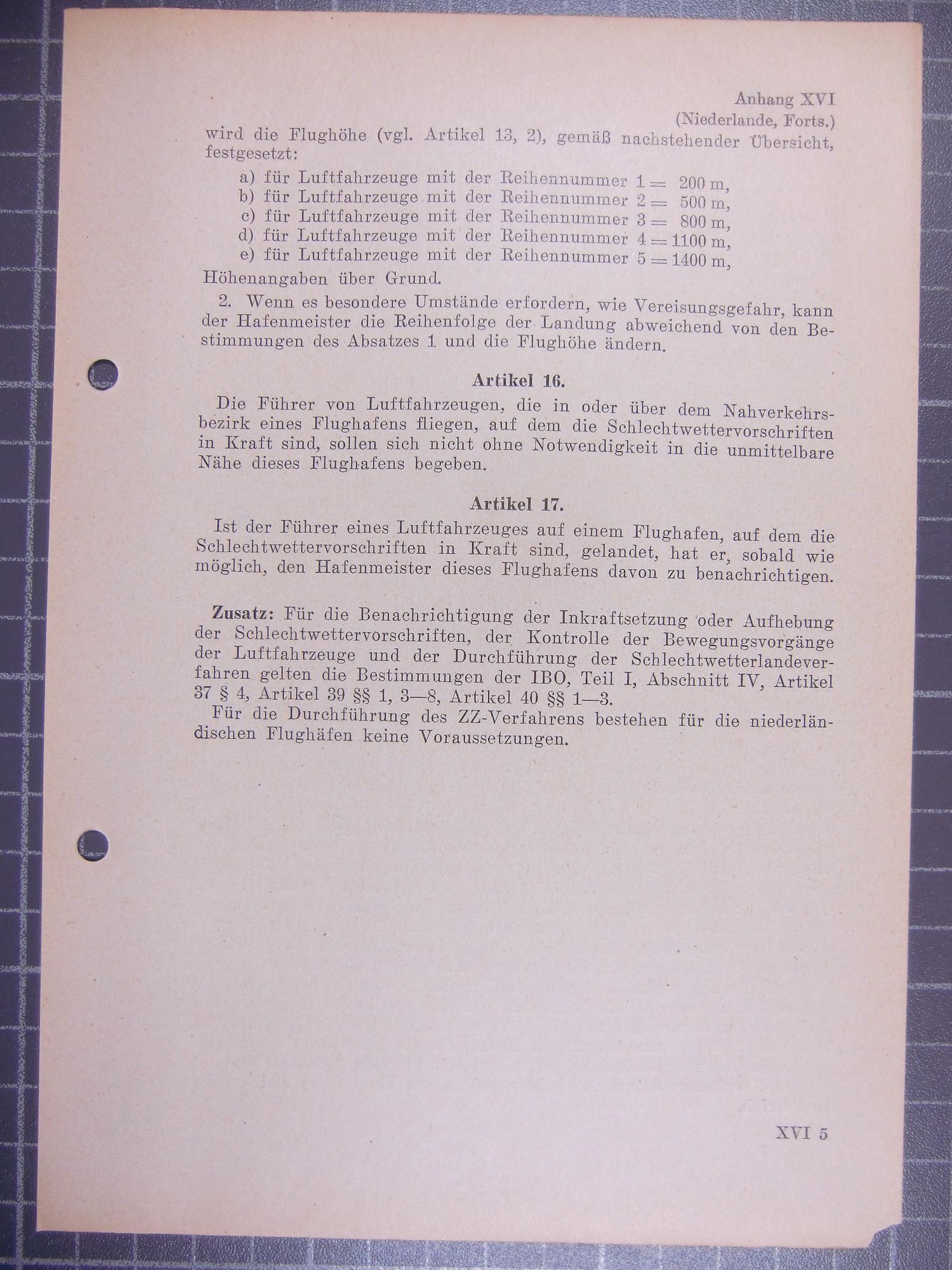

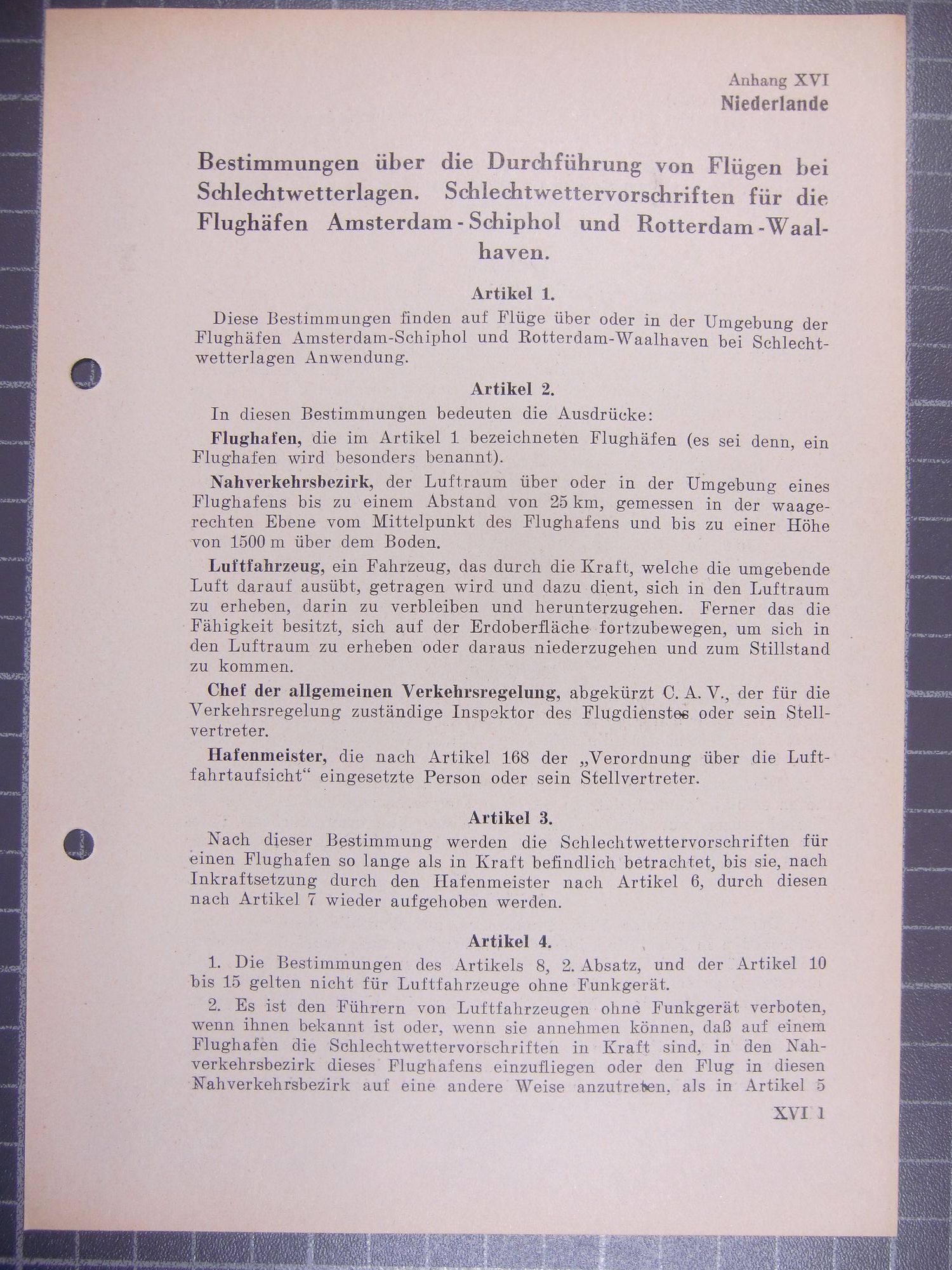

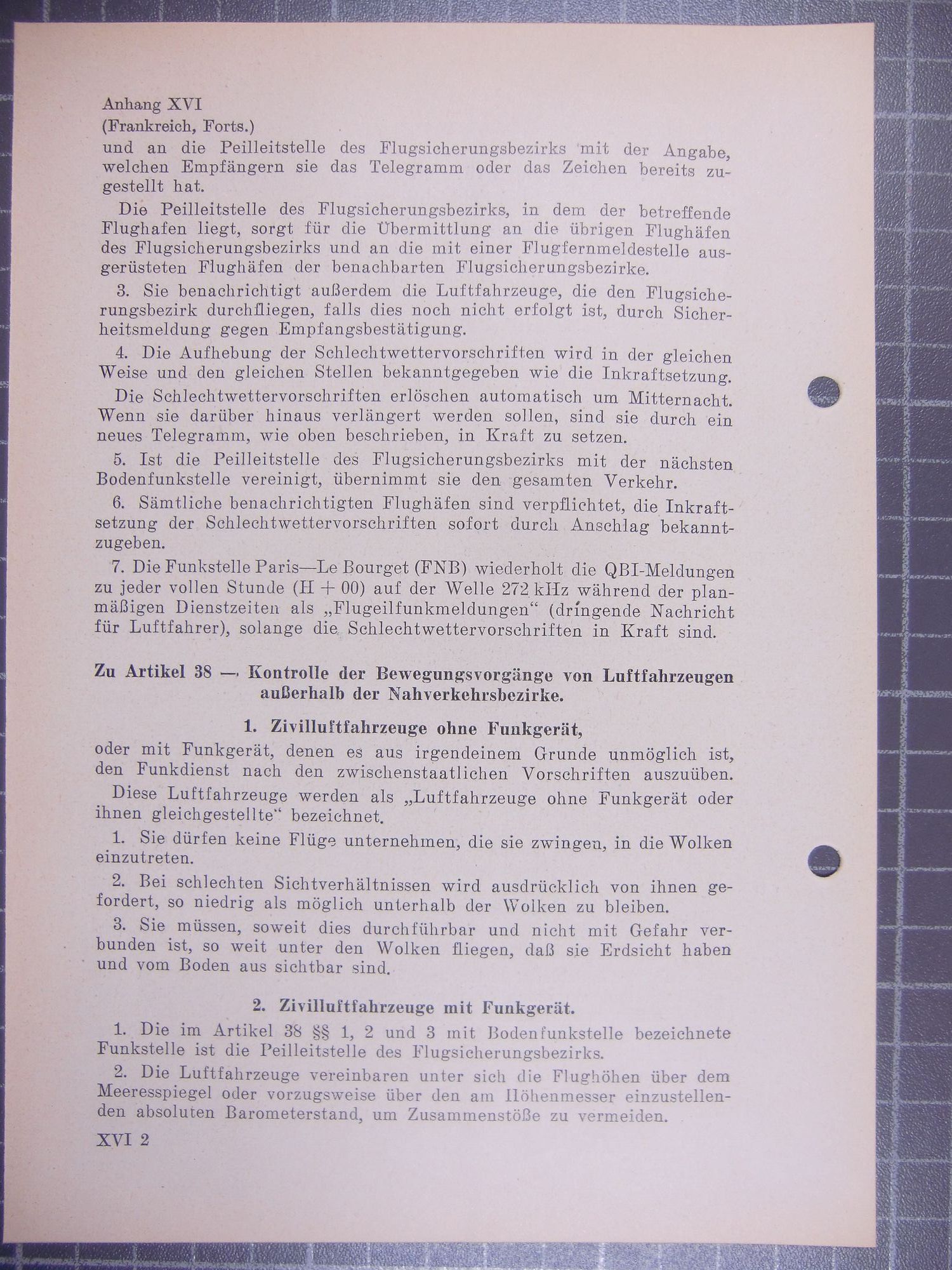

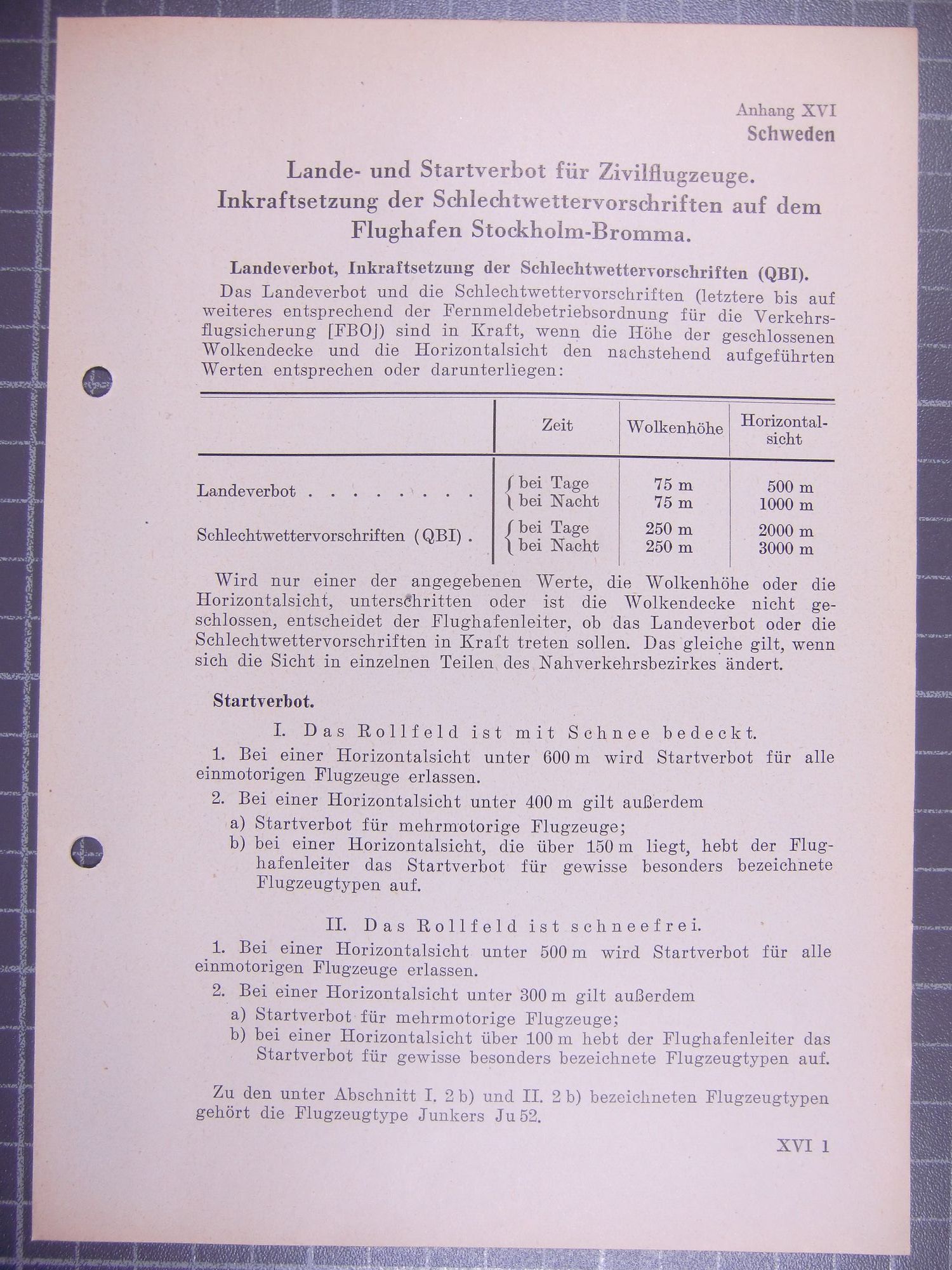

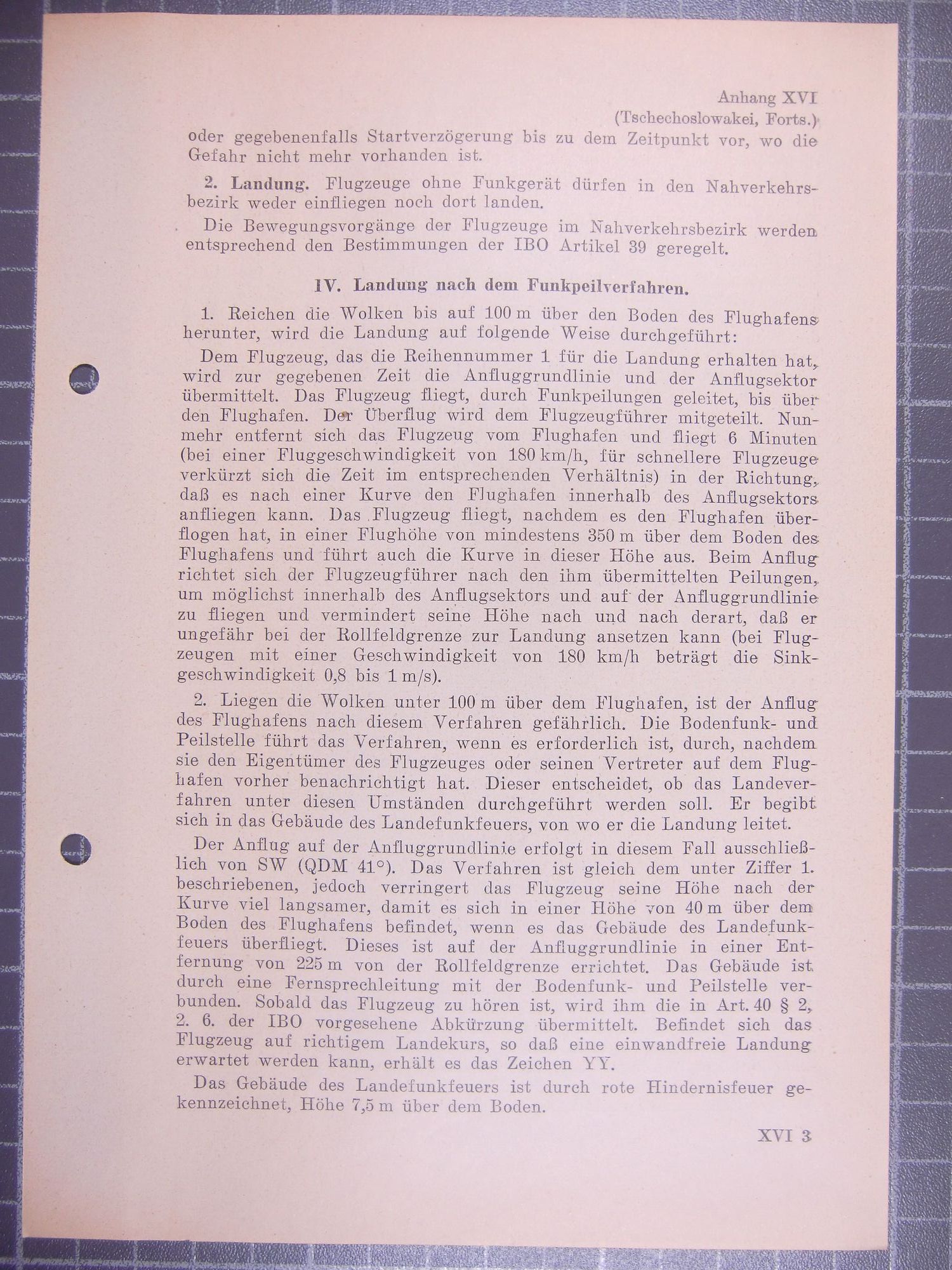

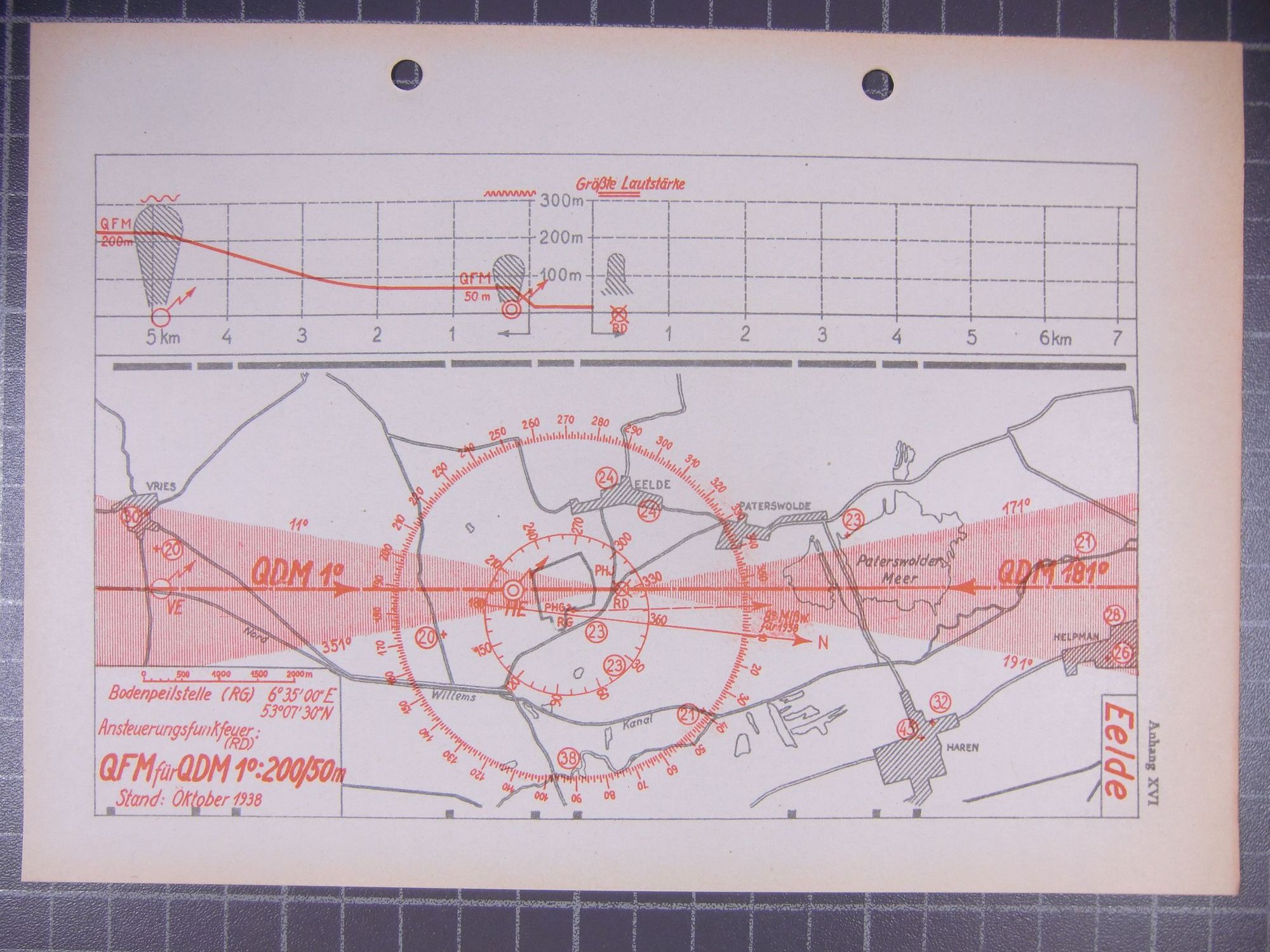

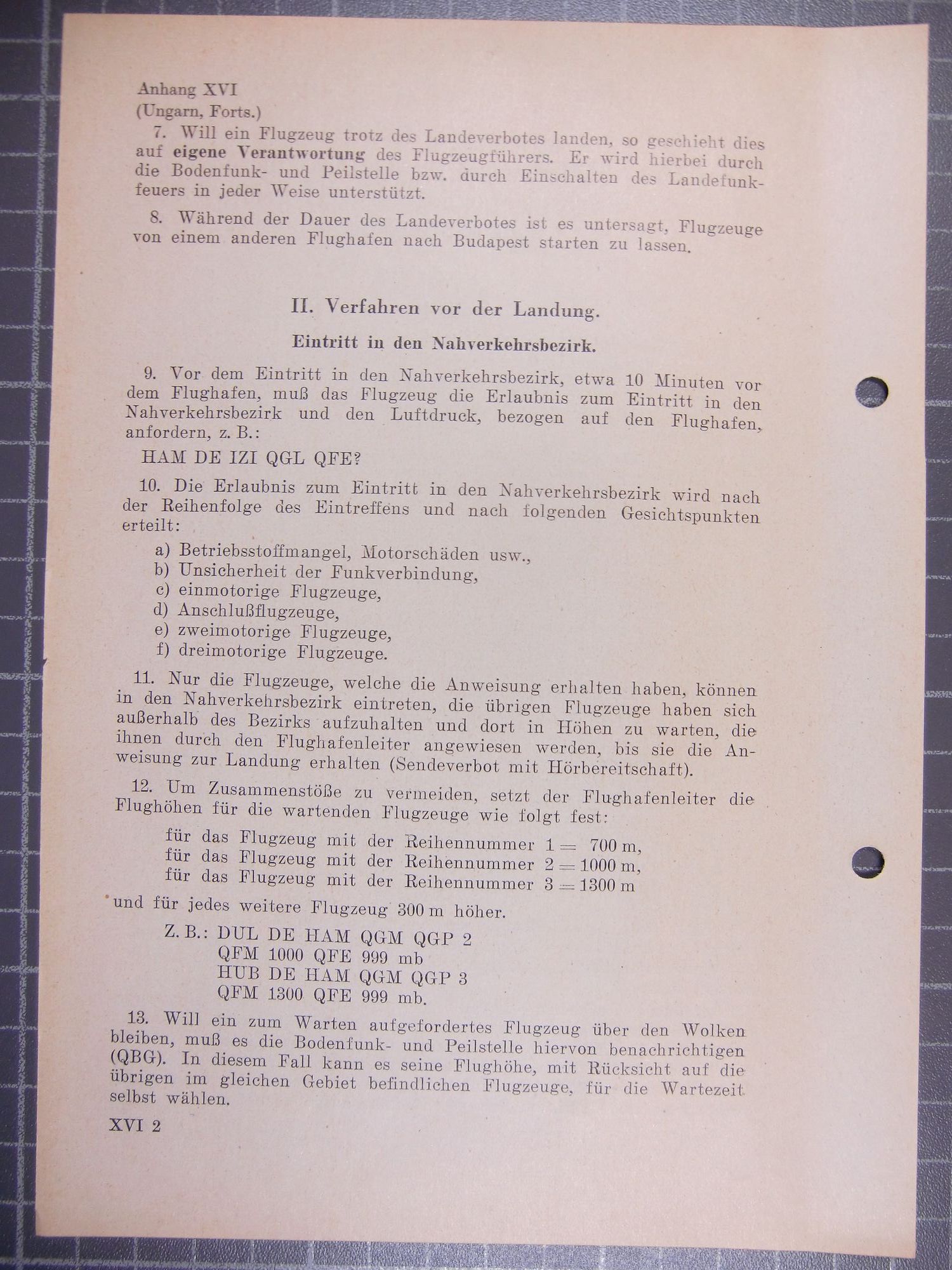

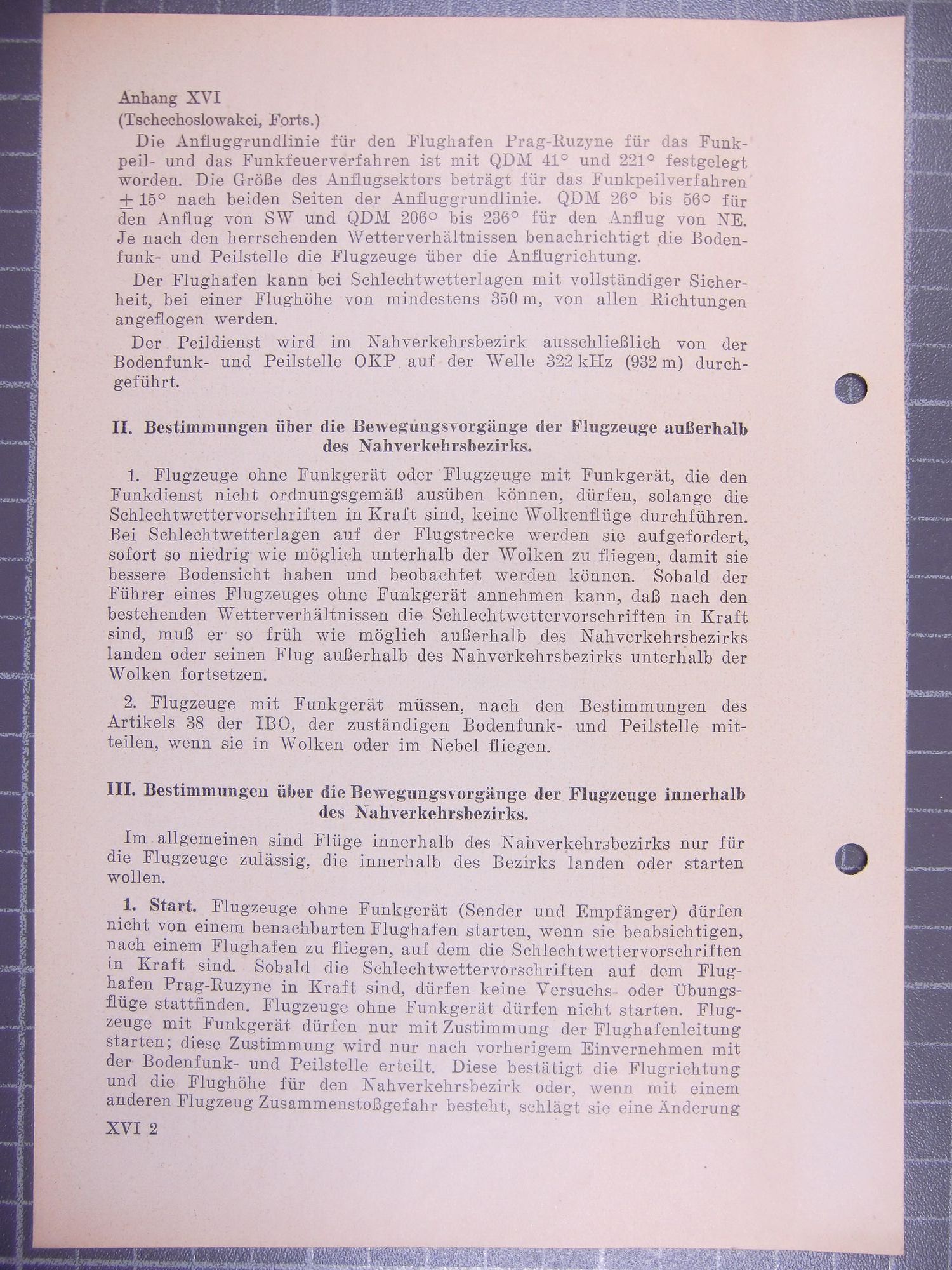

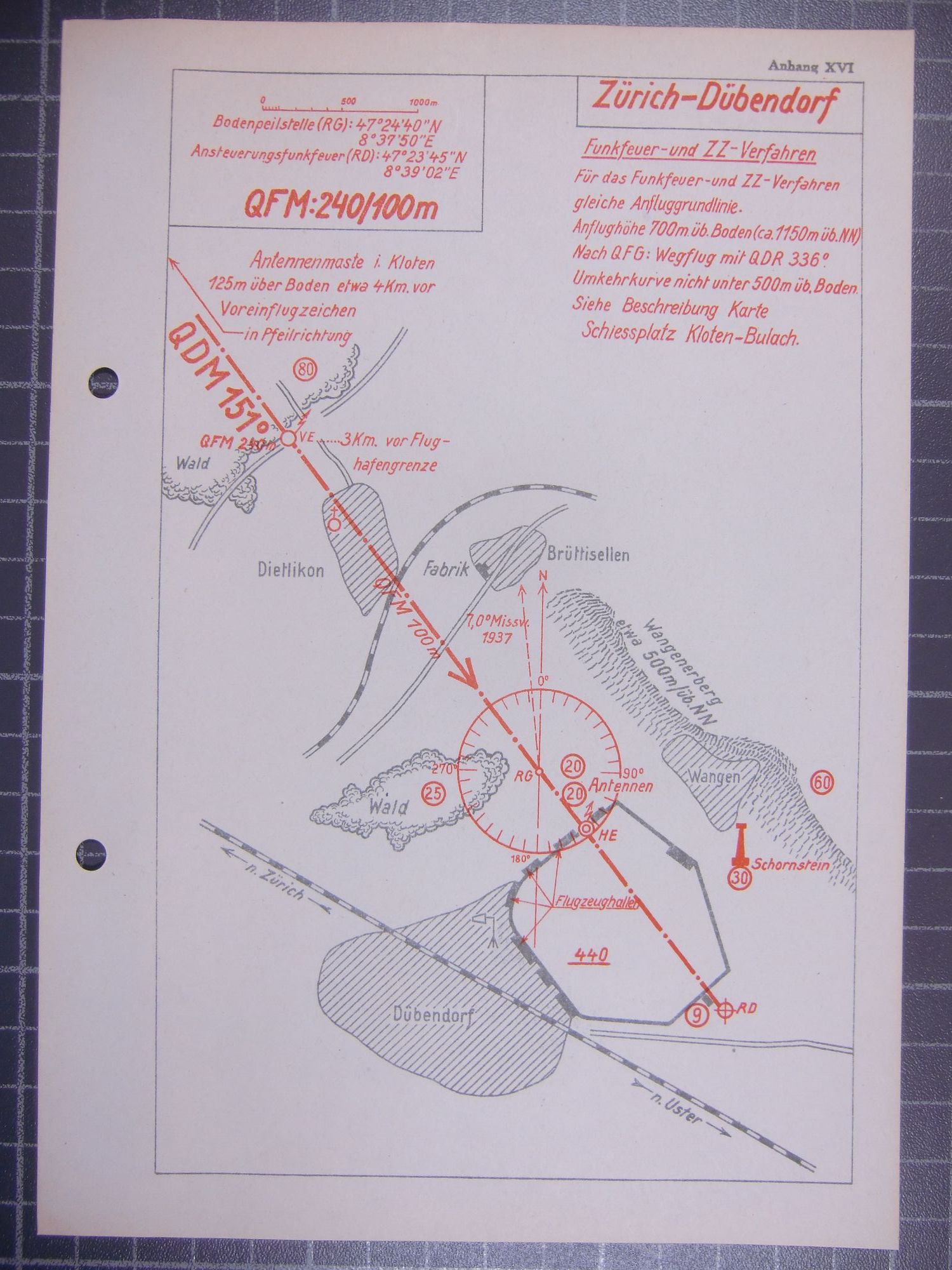

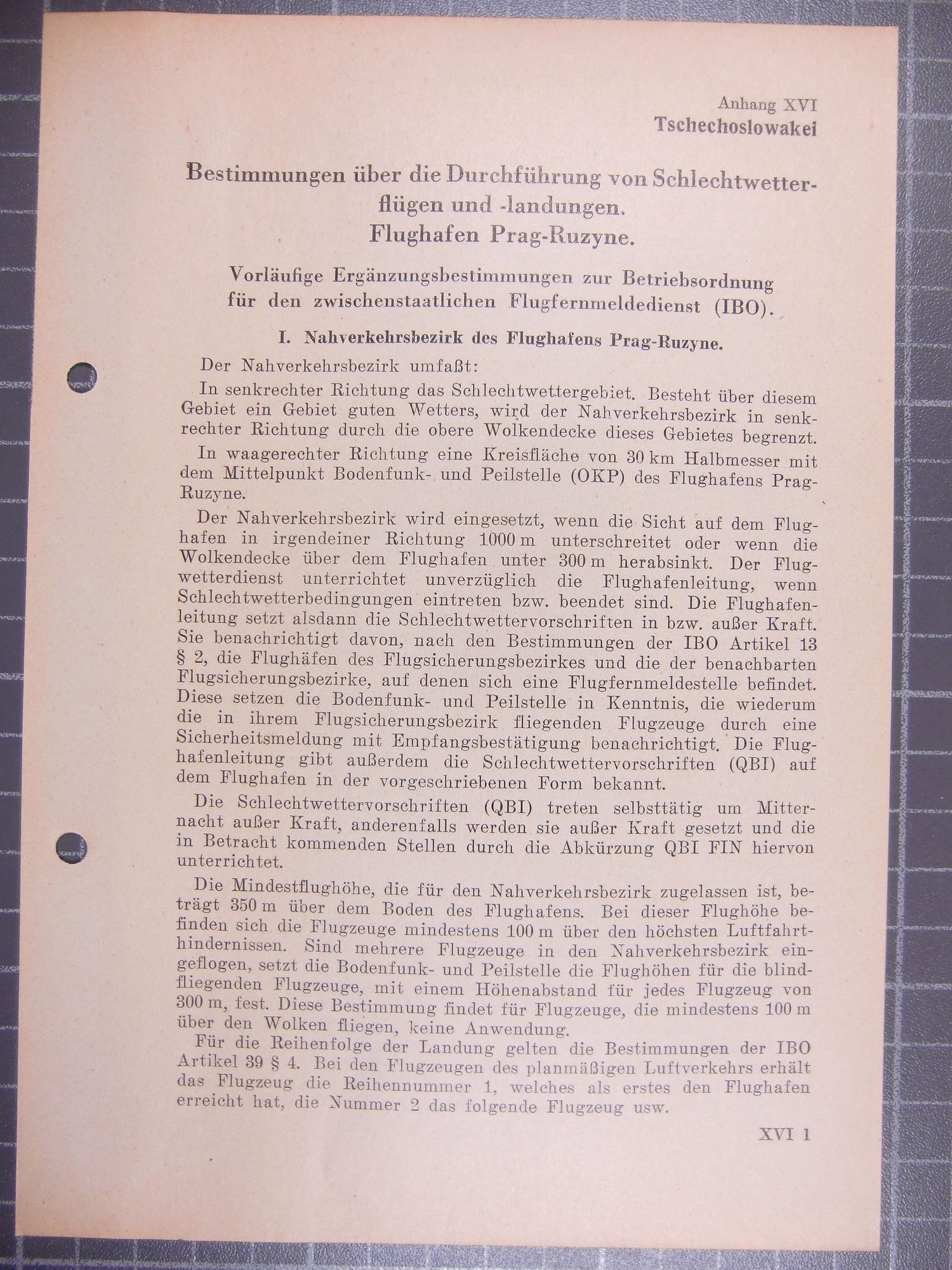

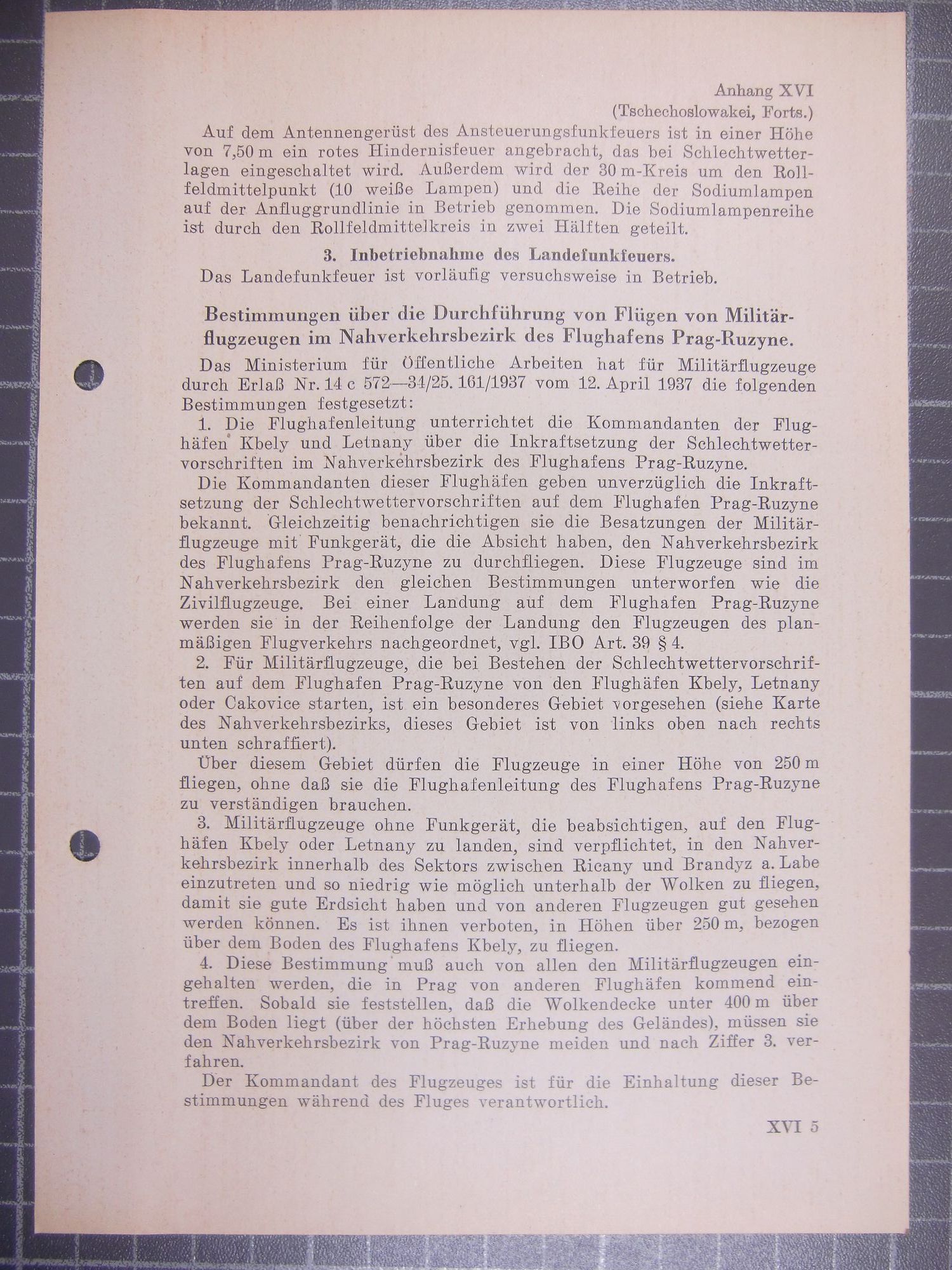

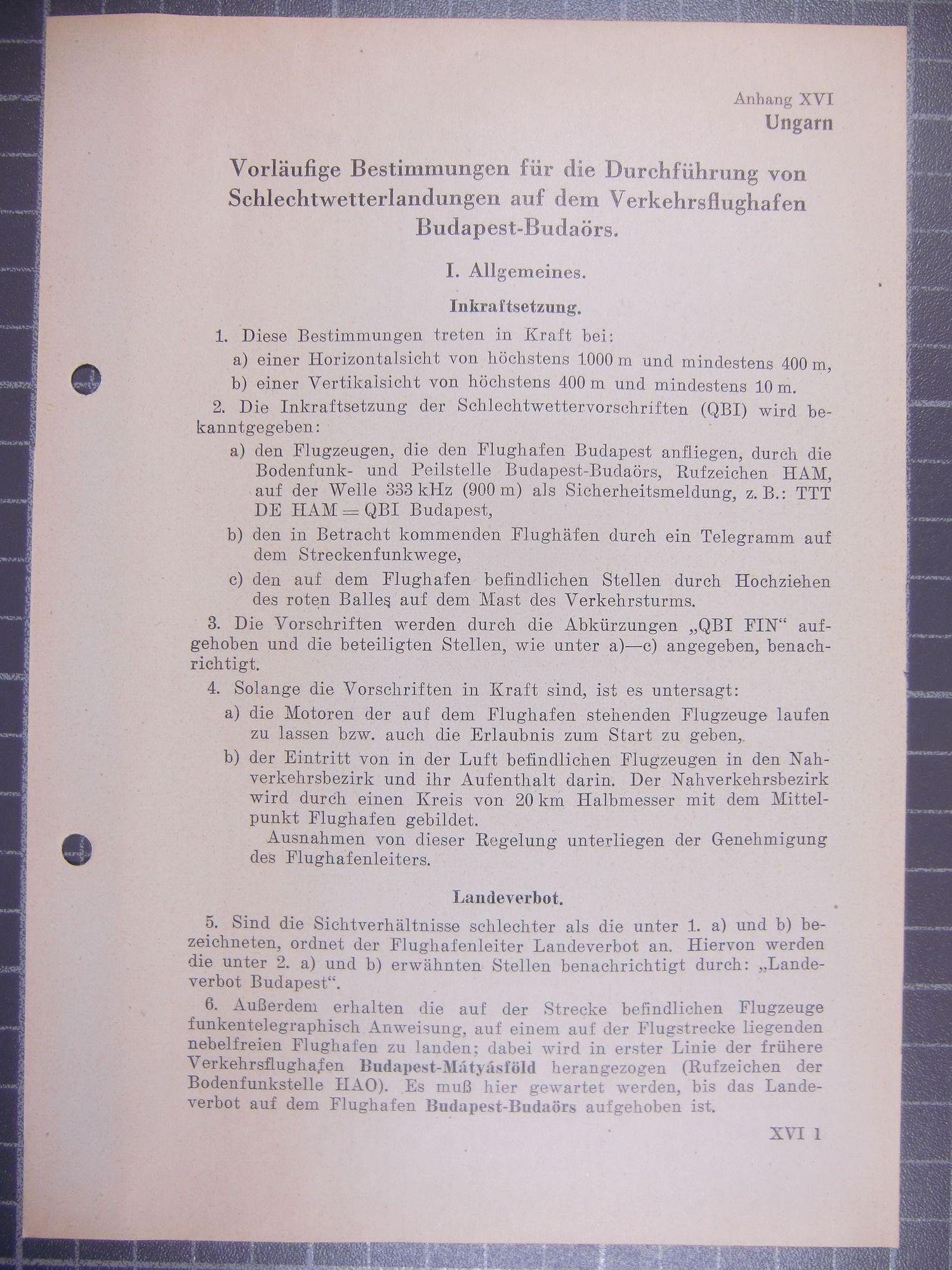

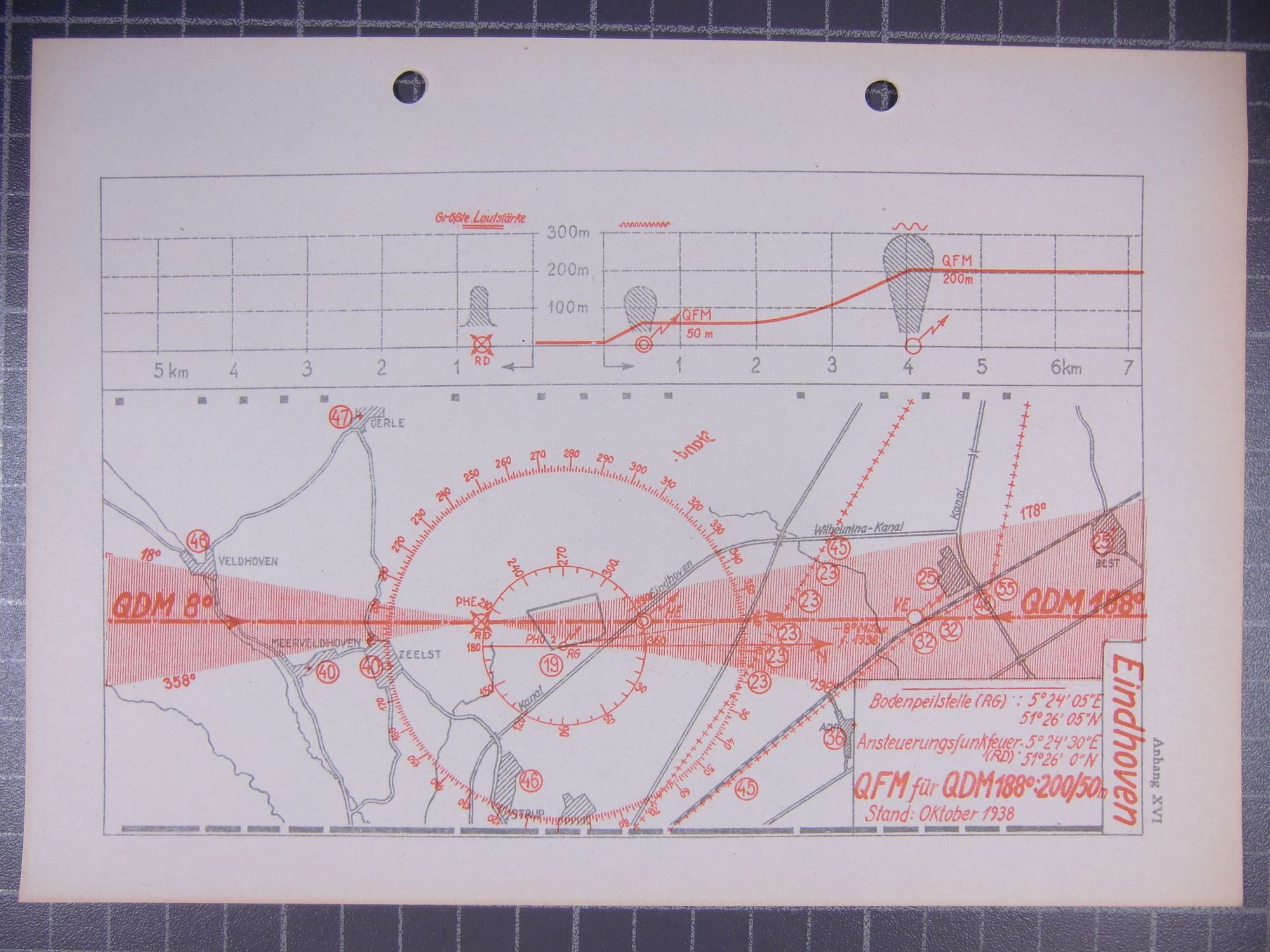

Below, all pages in FBO Teil2 Anhang XVI as separate images

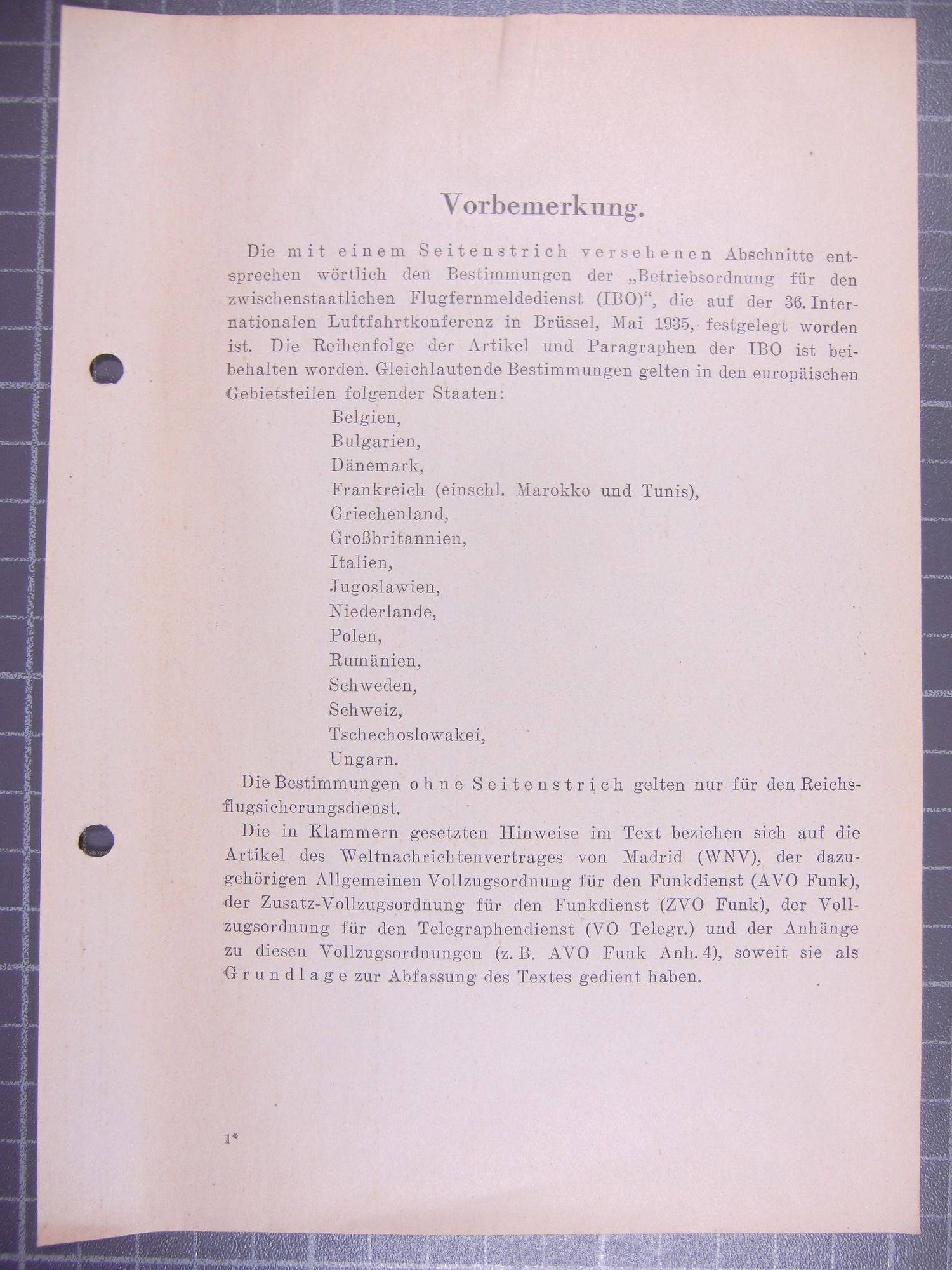

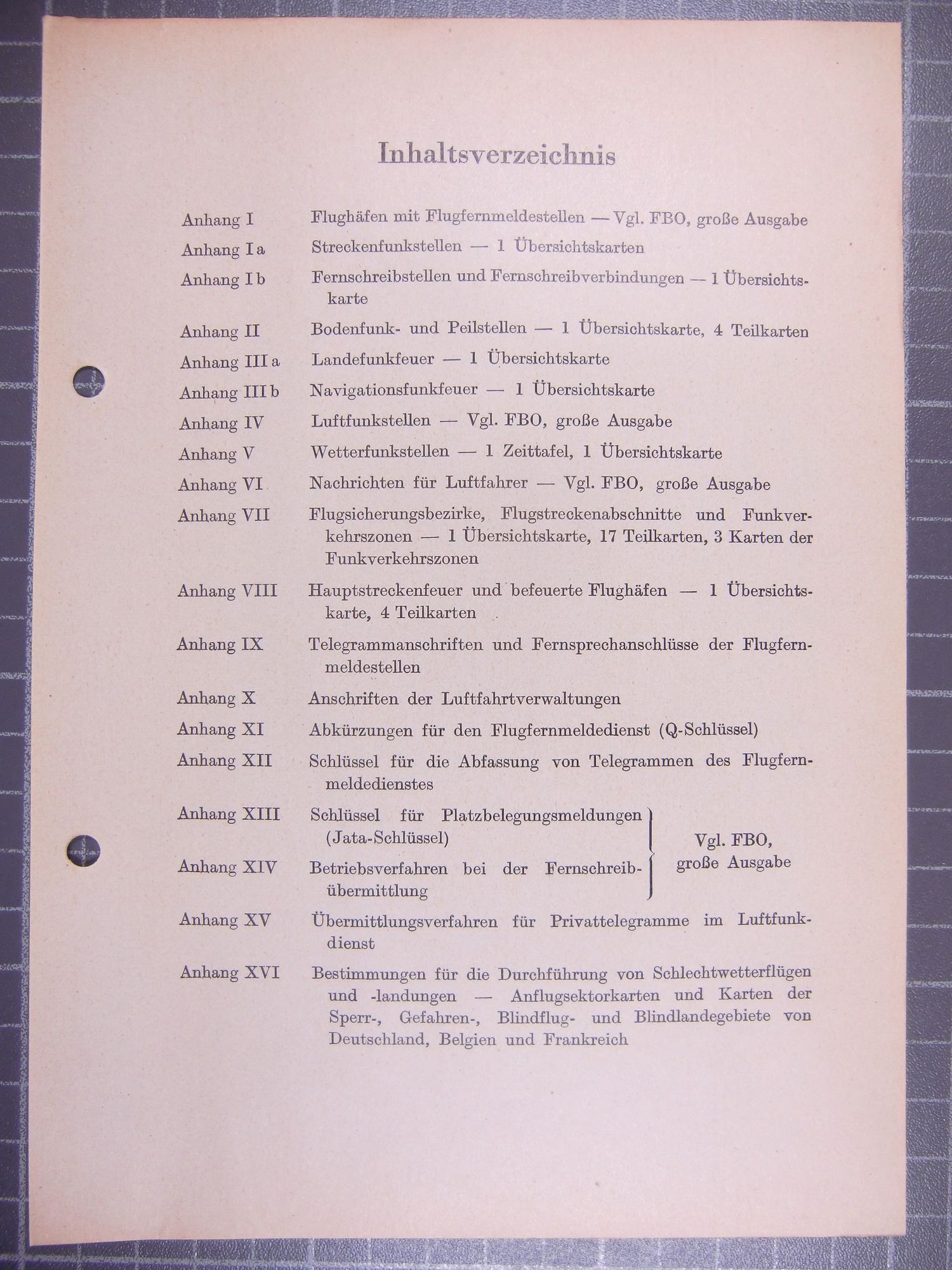

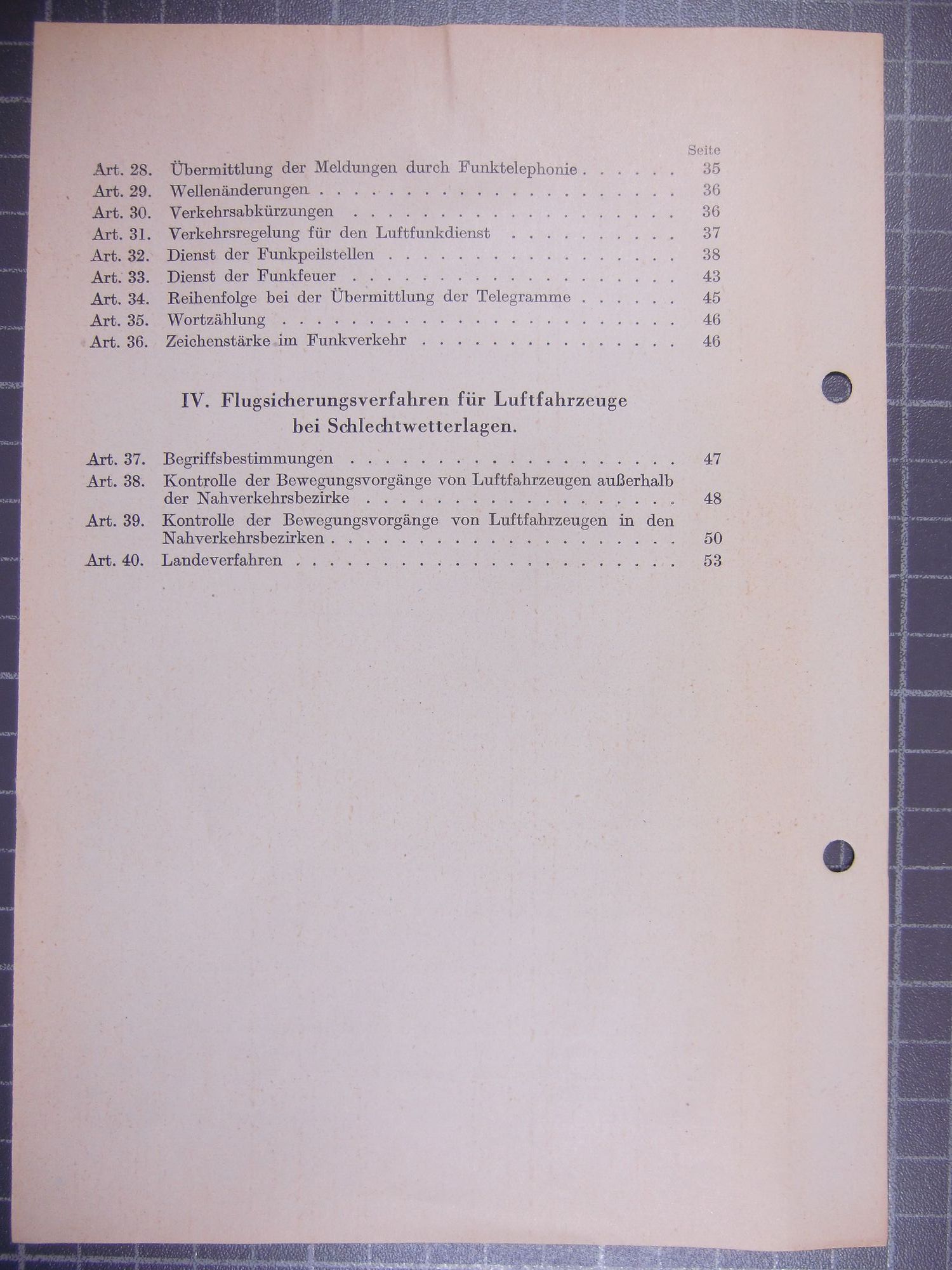

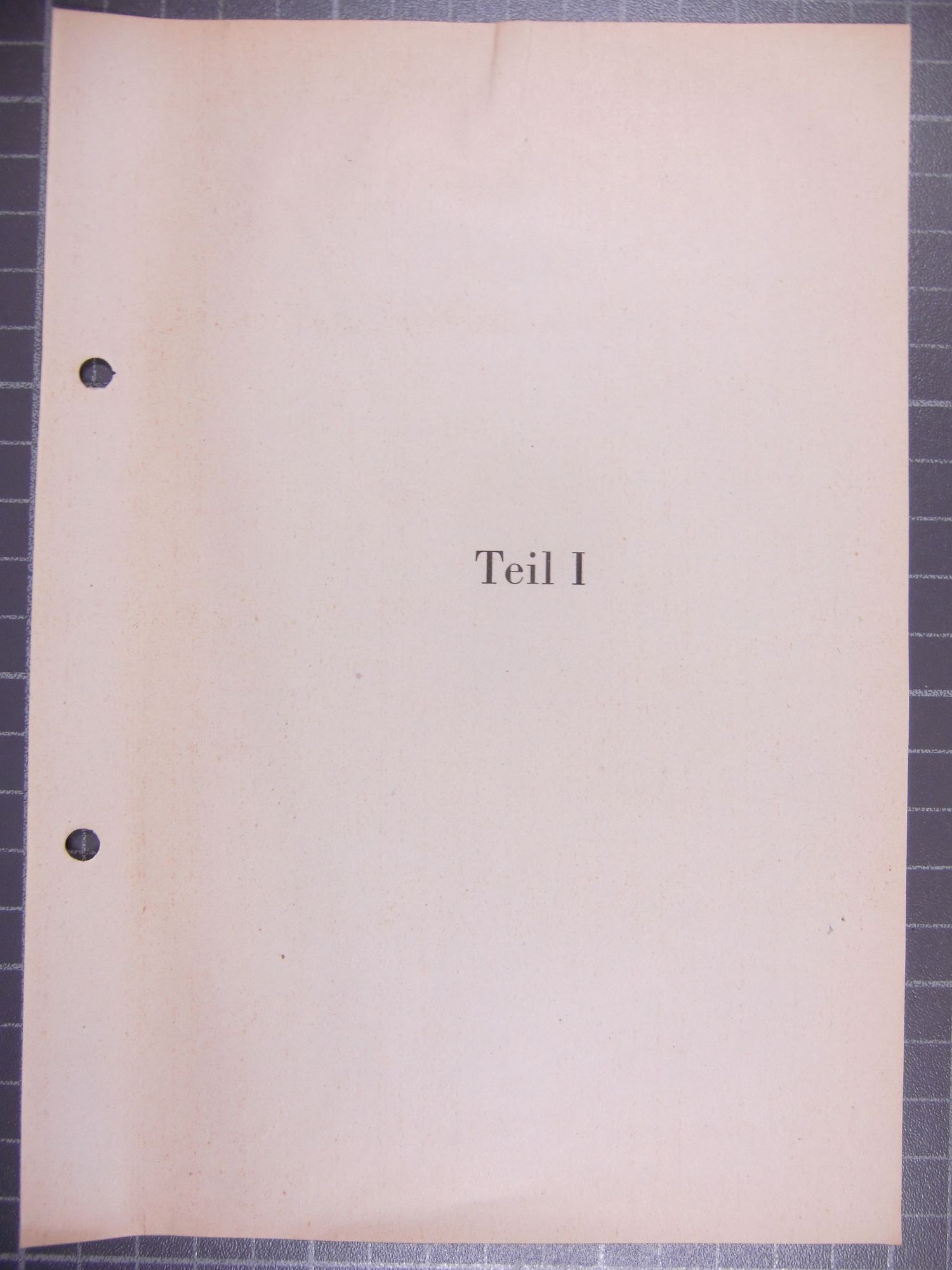

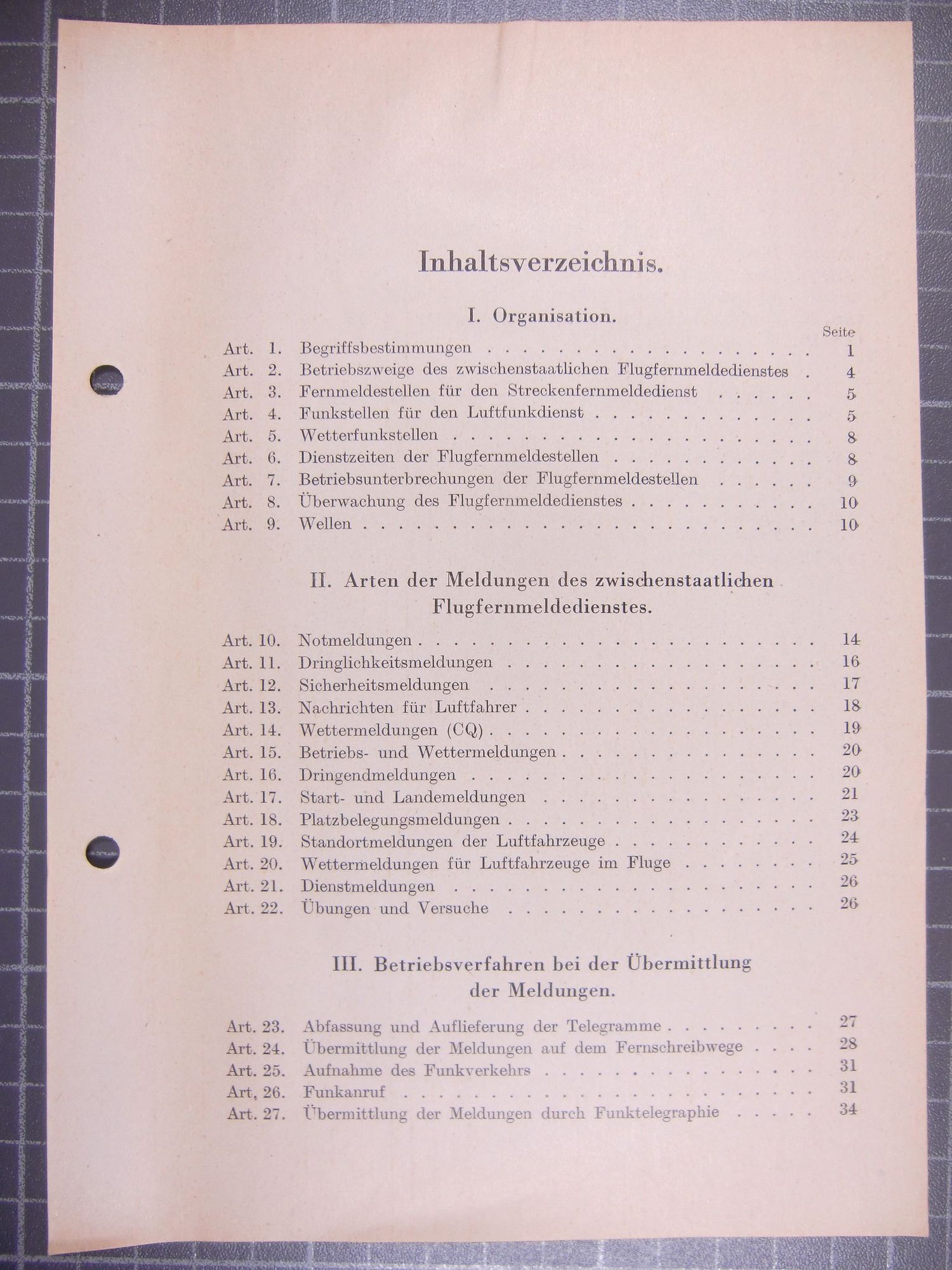

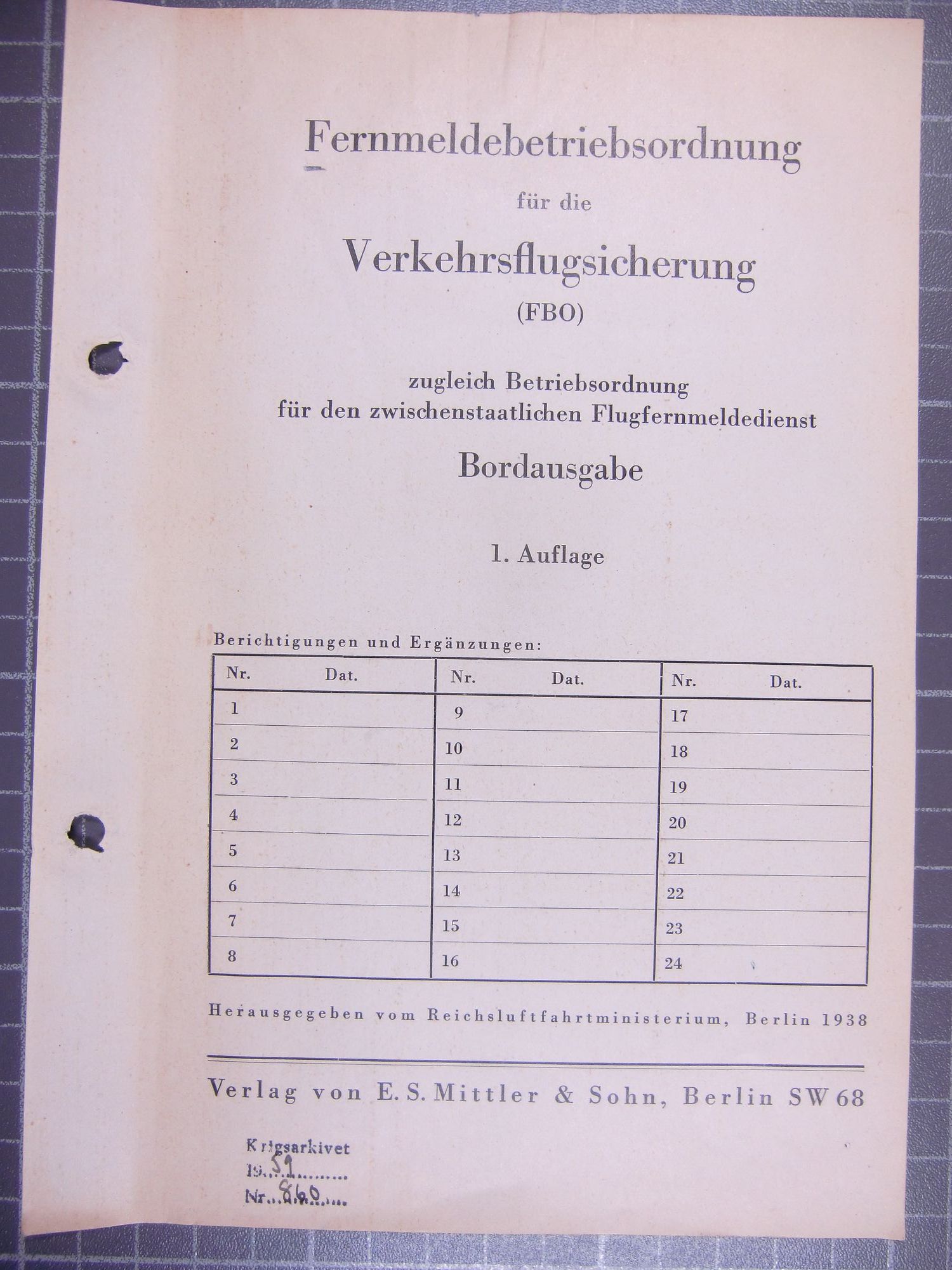

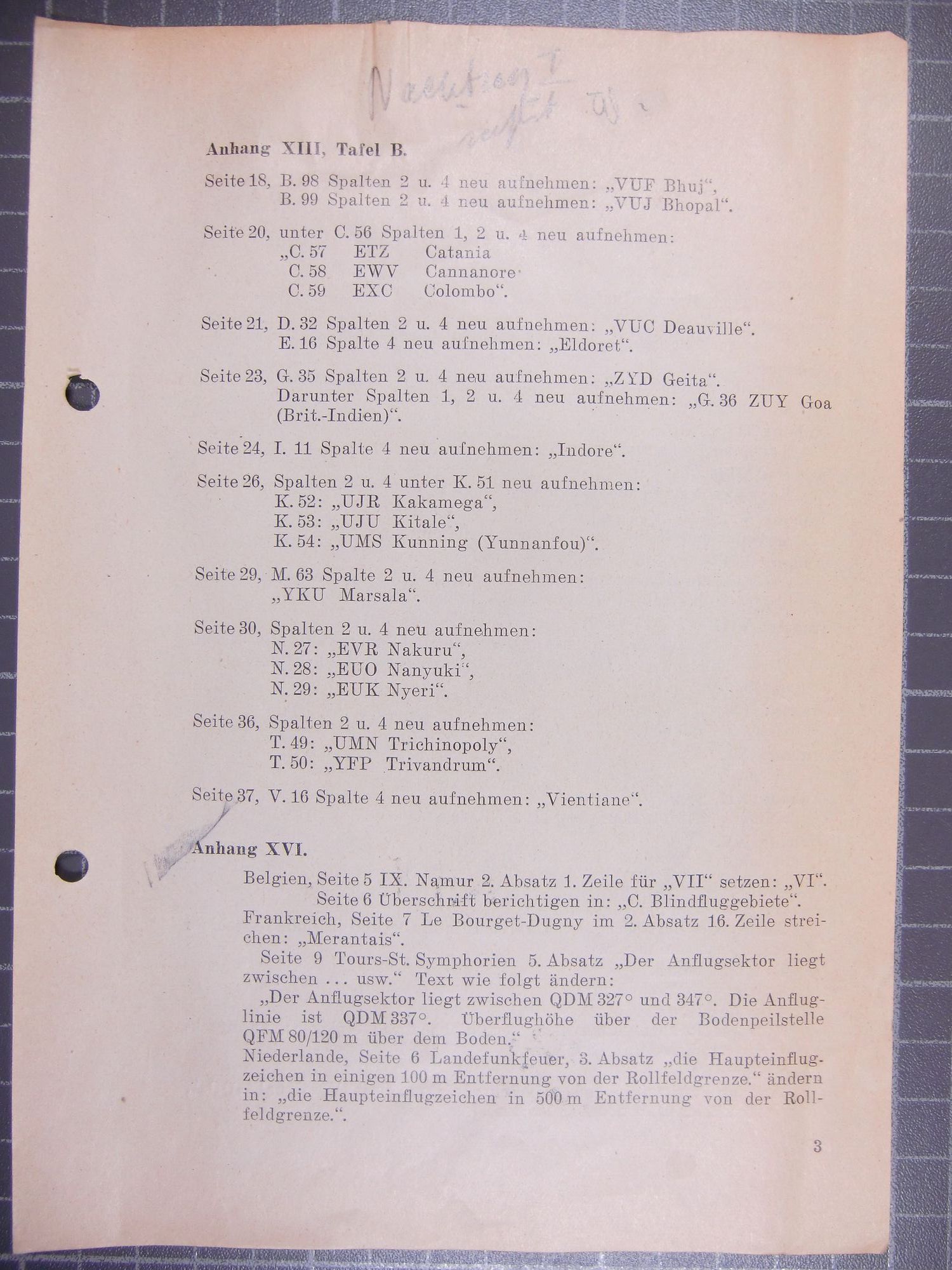

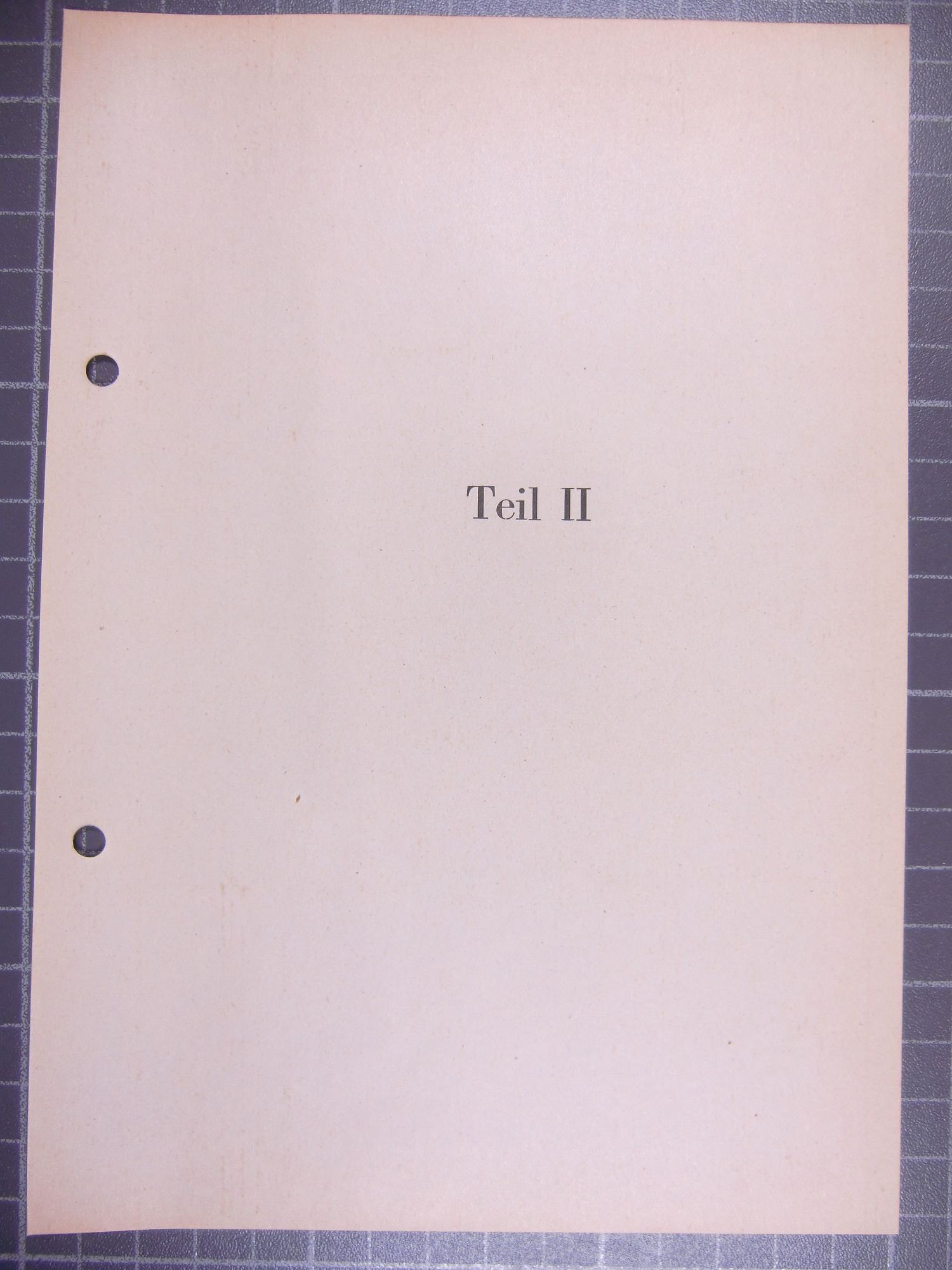

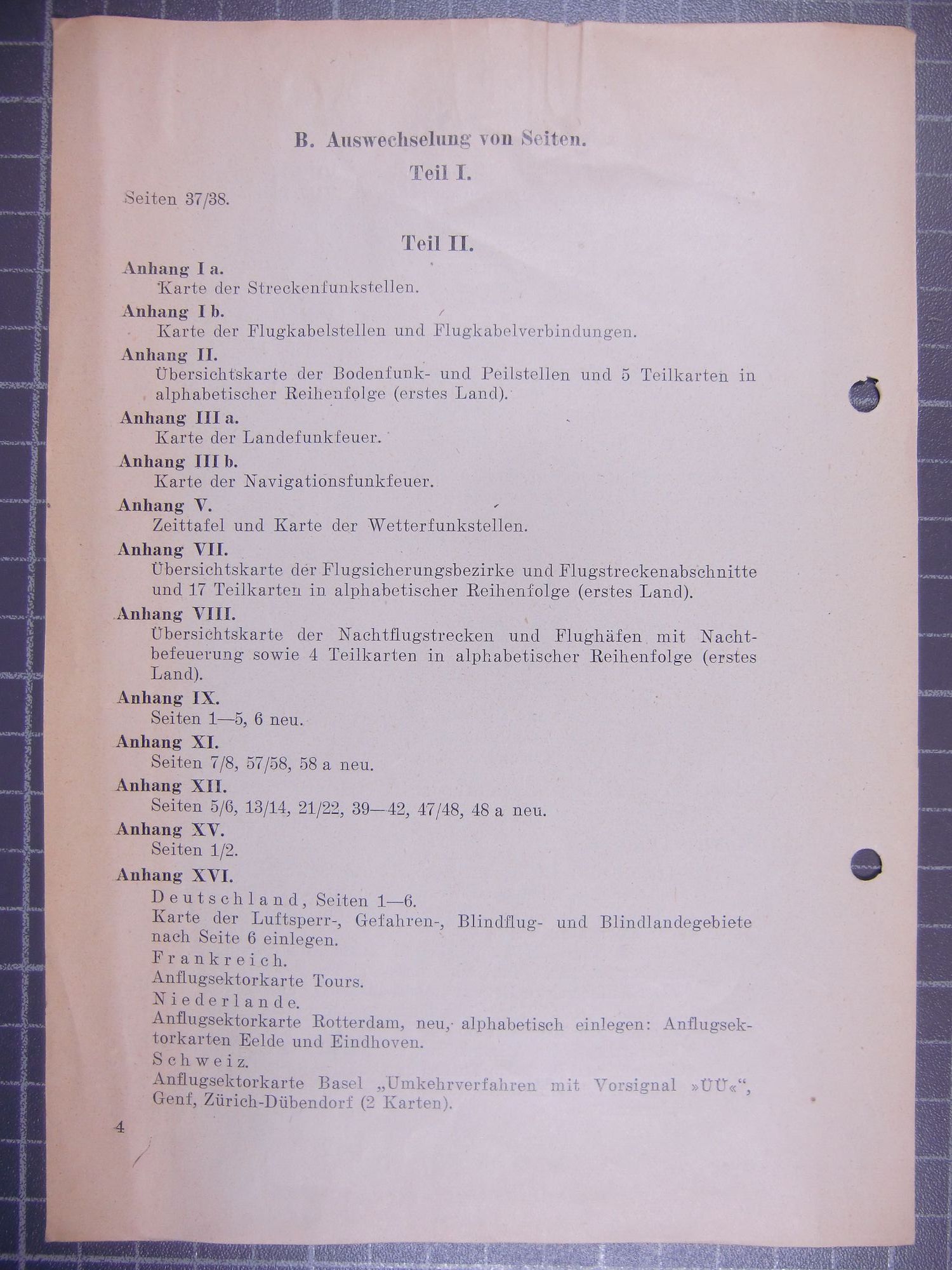

These images open in same window. Return here with Back-button or Alt+LeftArrow-keys!	• FBO p01 cover • FBO p02 notes • FBO p03 notes • FBO p04 notes • FBO p05 notes • FBO p06 notes	• FBO Teil 1, Part 1 • FBO Teil 1, Part 1, Contents • FBO Teil 1, Part 1, Contents Remaining pages in Part 1 not yet ready here! They contain 63 text pages.	• FBO Teil 2, Part 2 • FBO Teil 2, Part 2, Contents Pages for Anhang I-XV, Section I-XV, not yet ready here! They contain many overview maps for radio stations etc.

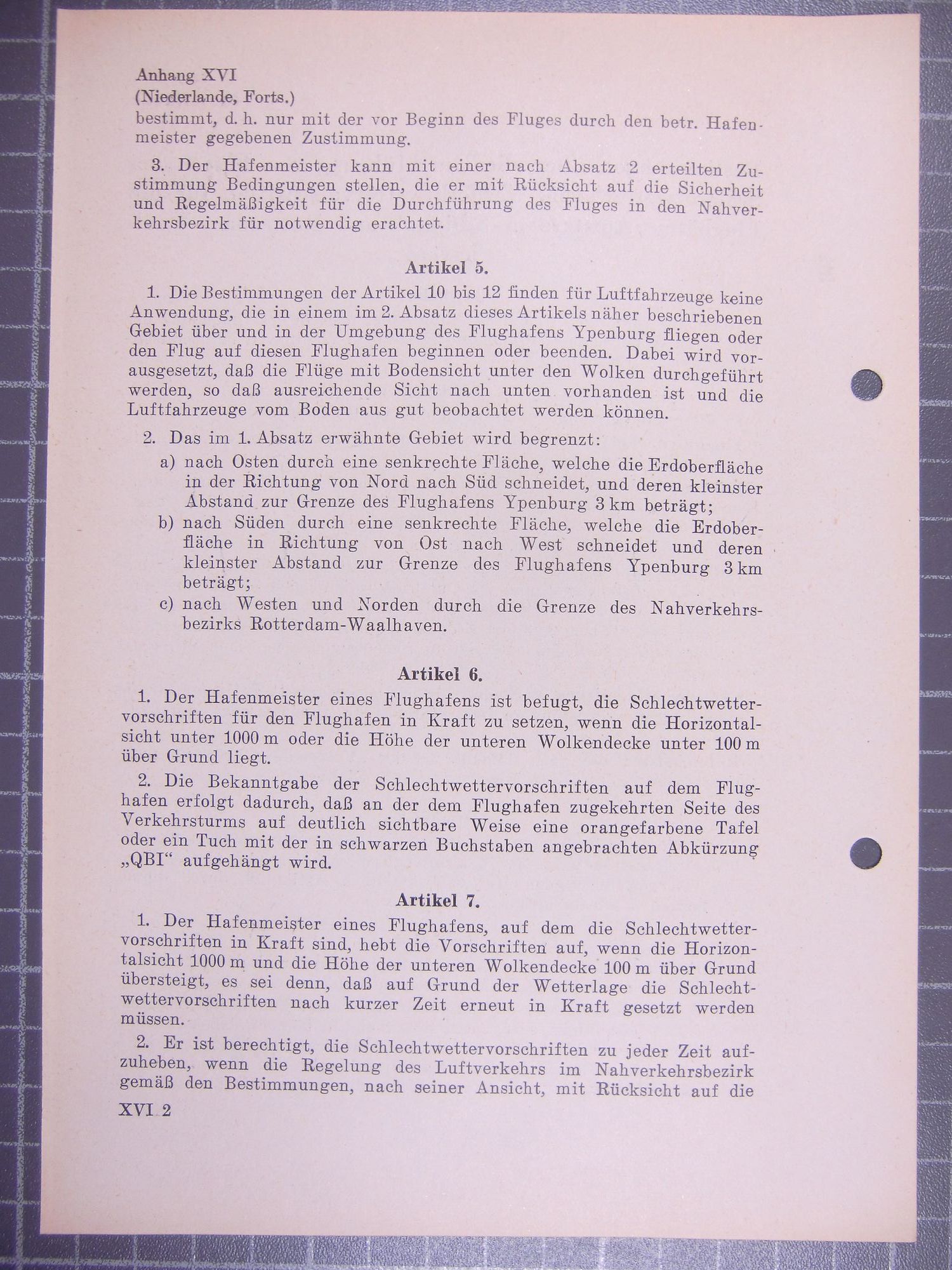

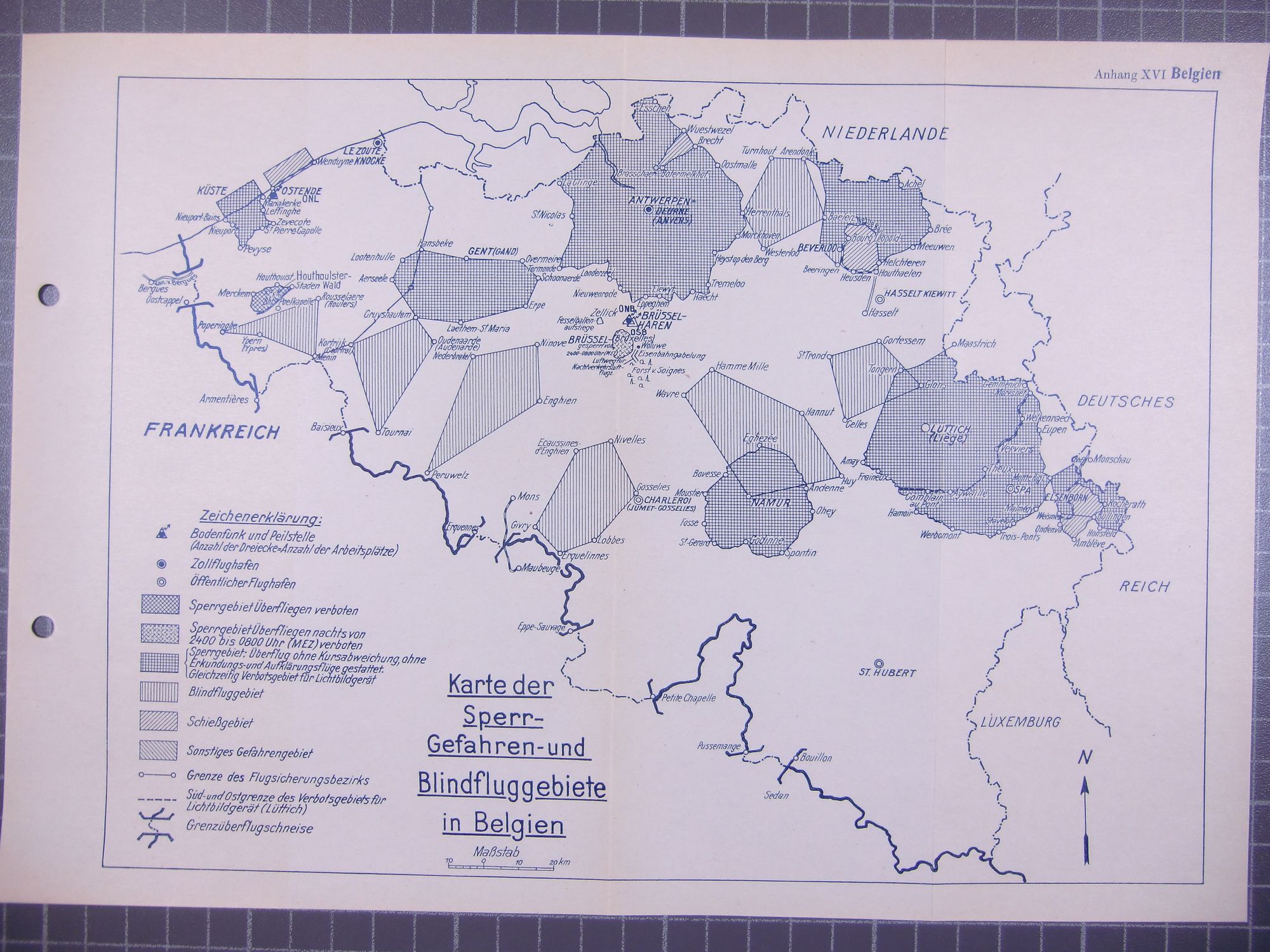

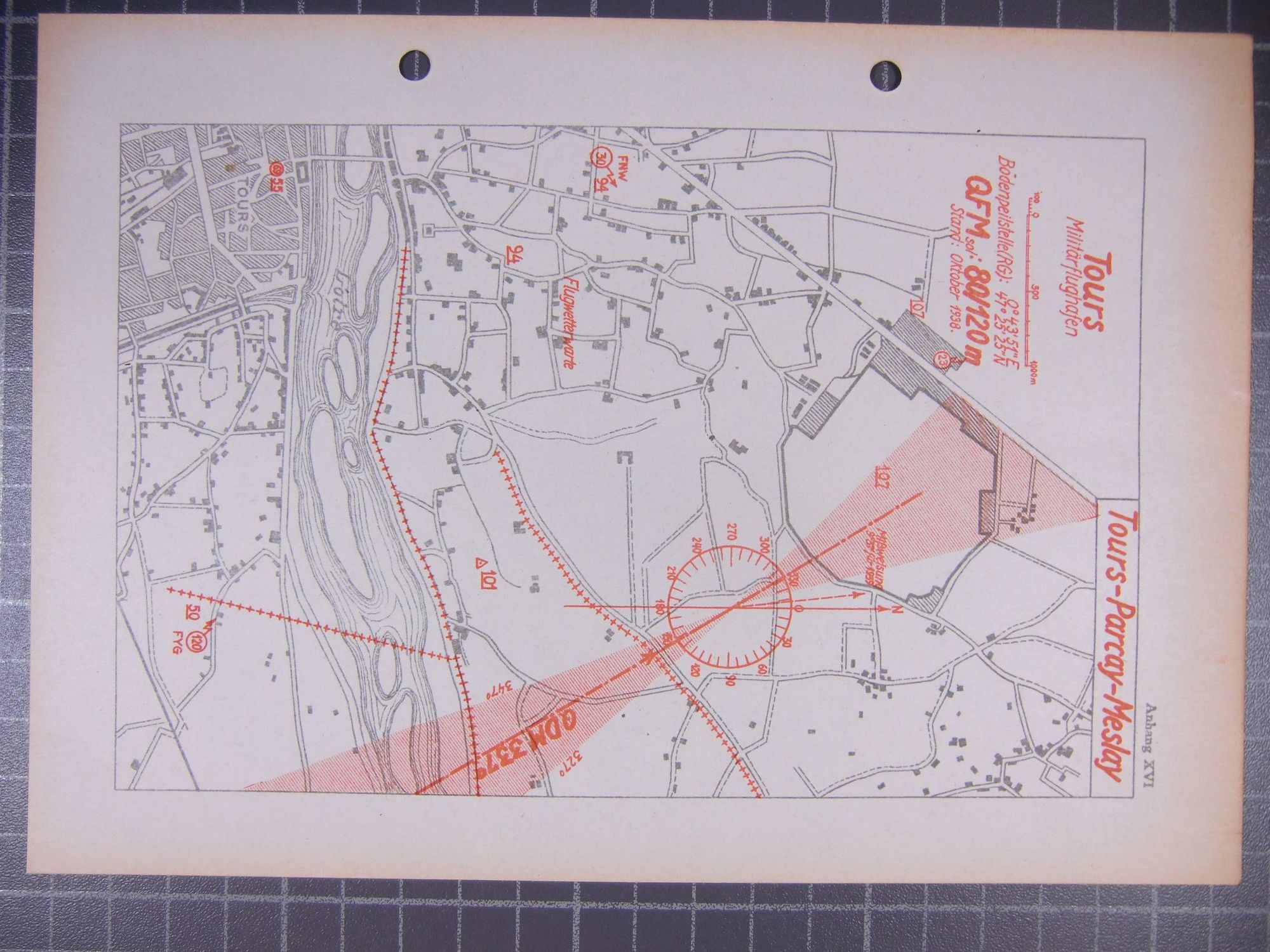

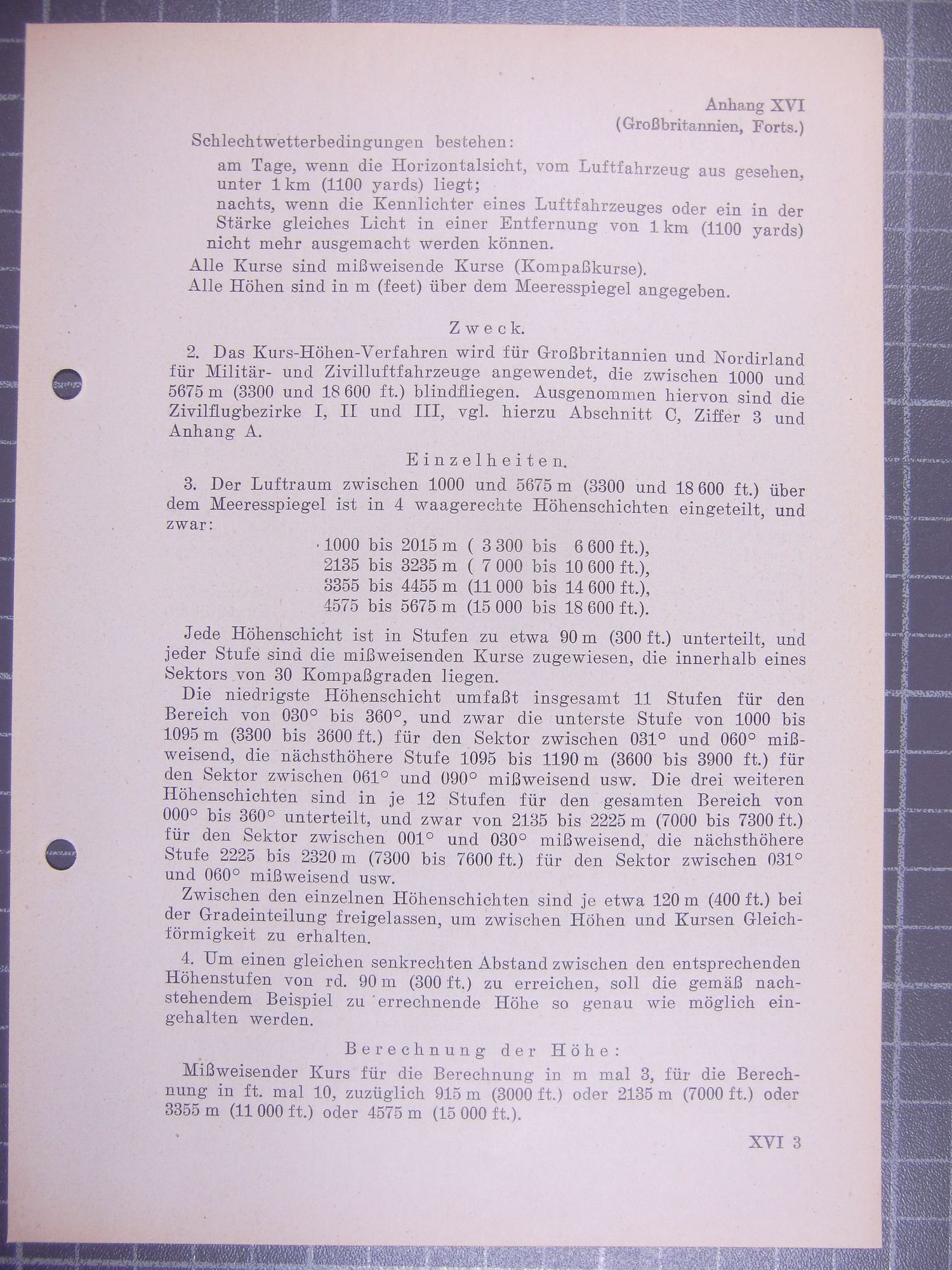

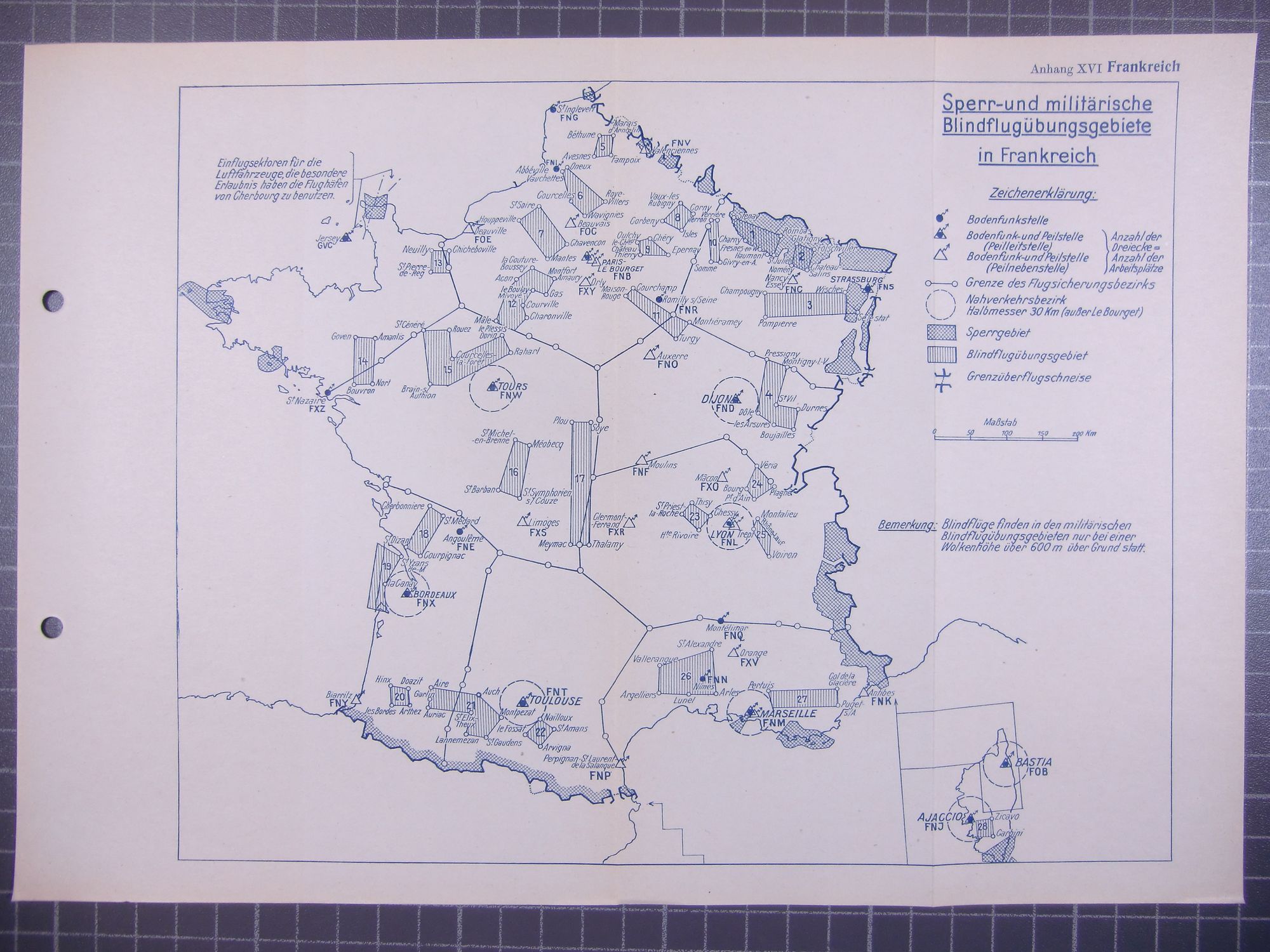

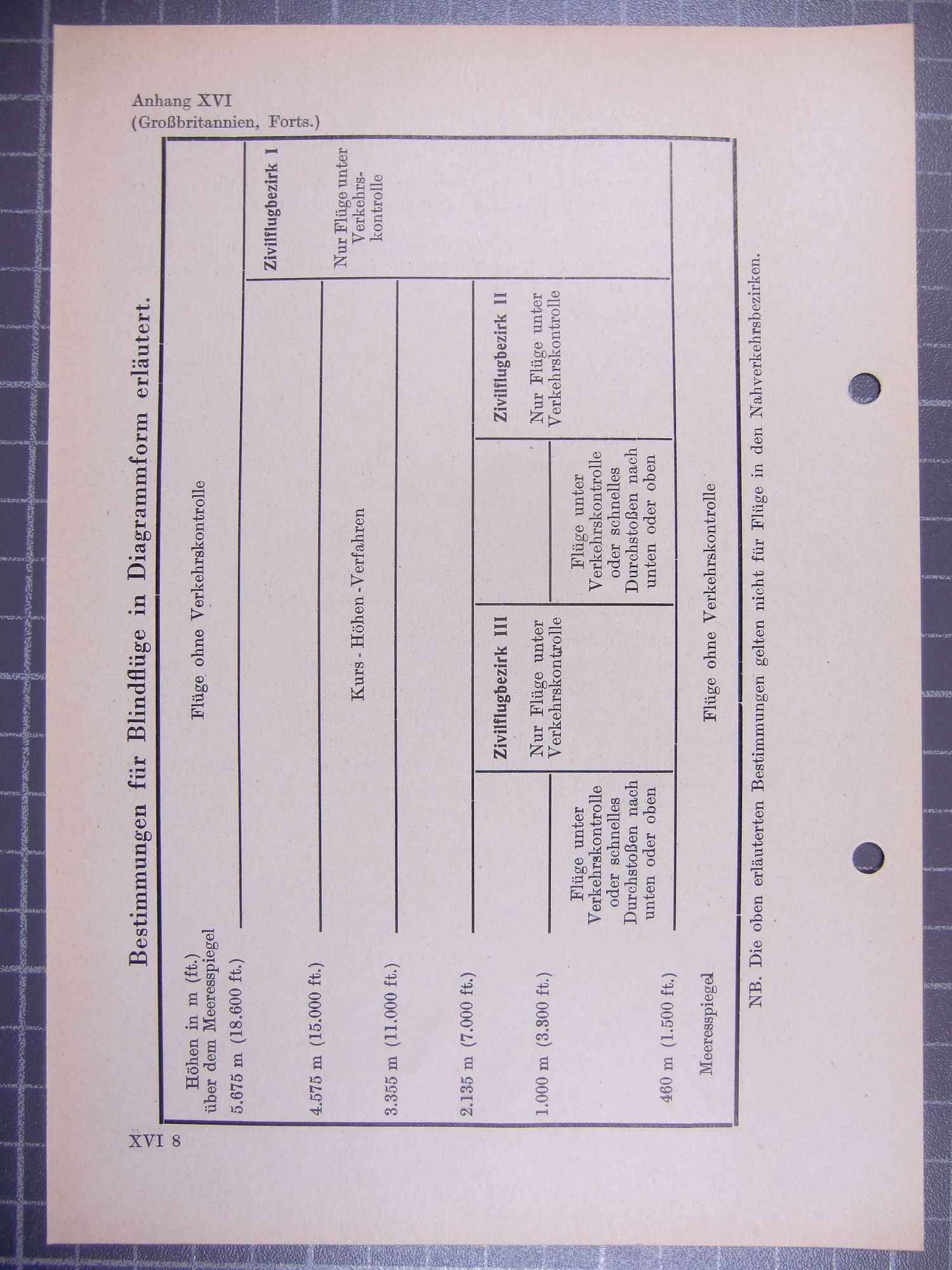

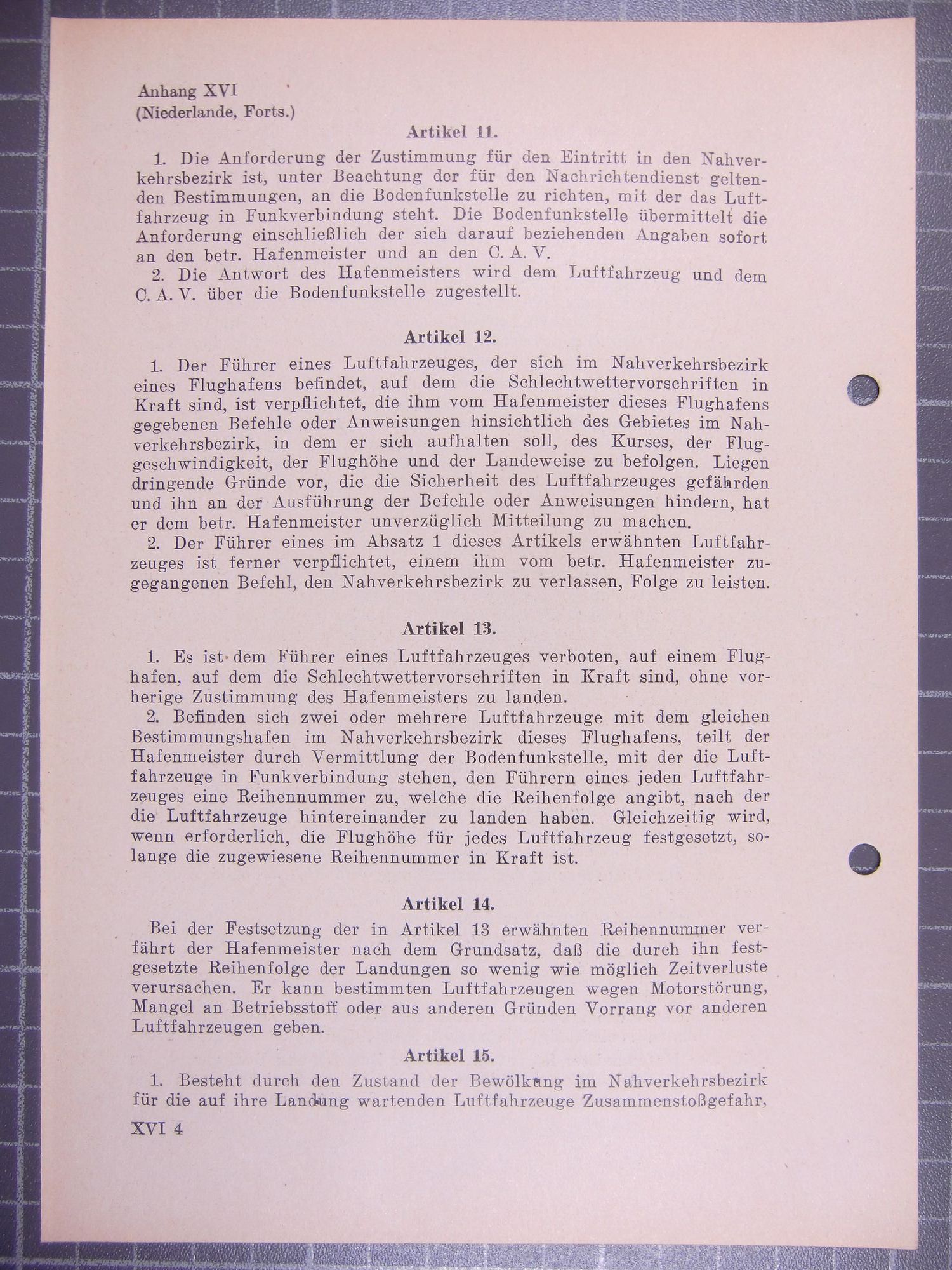

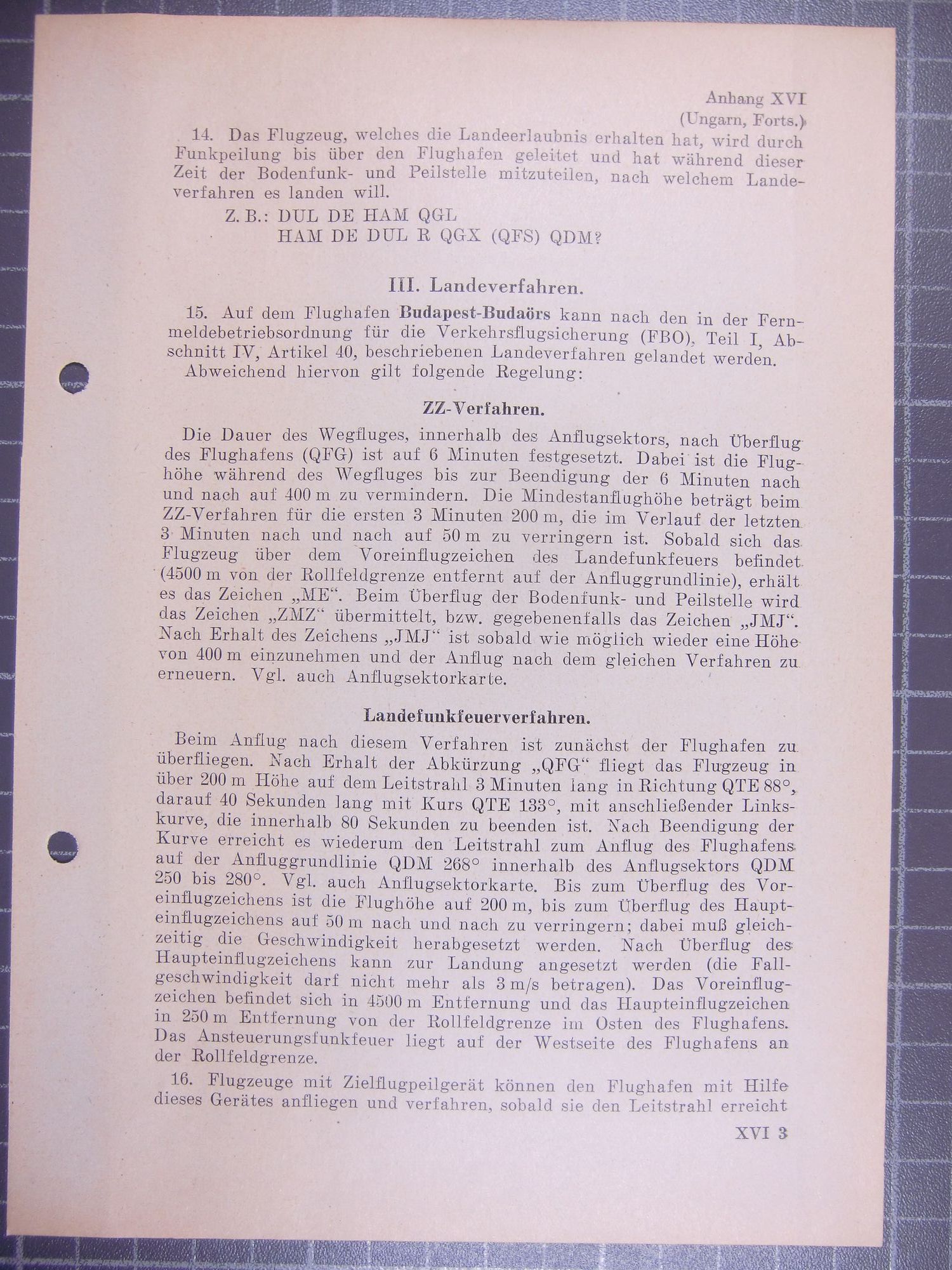

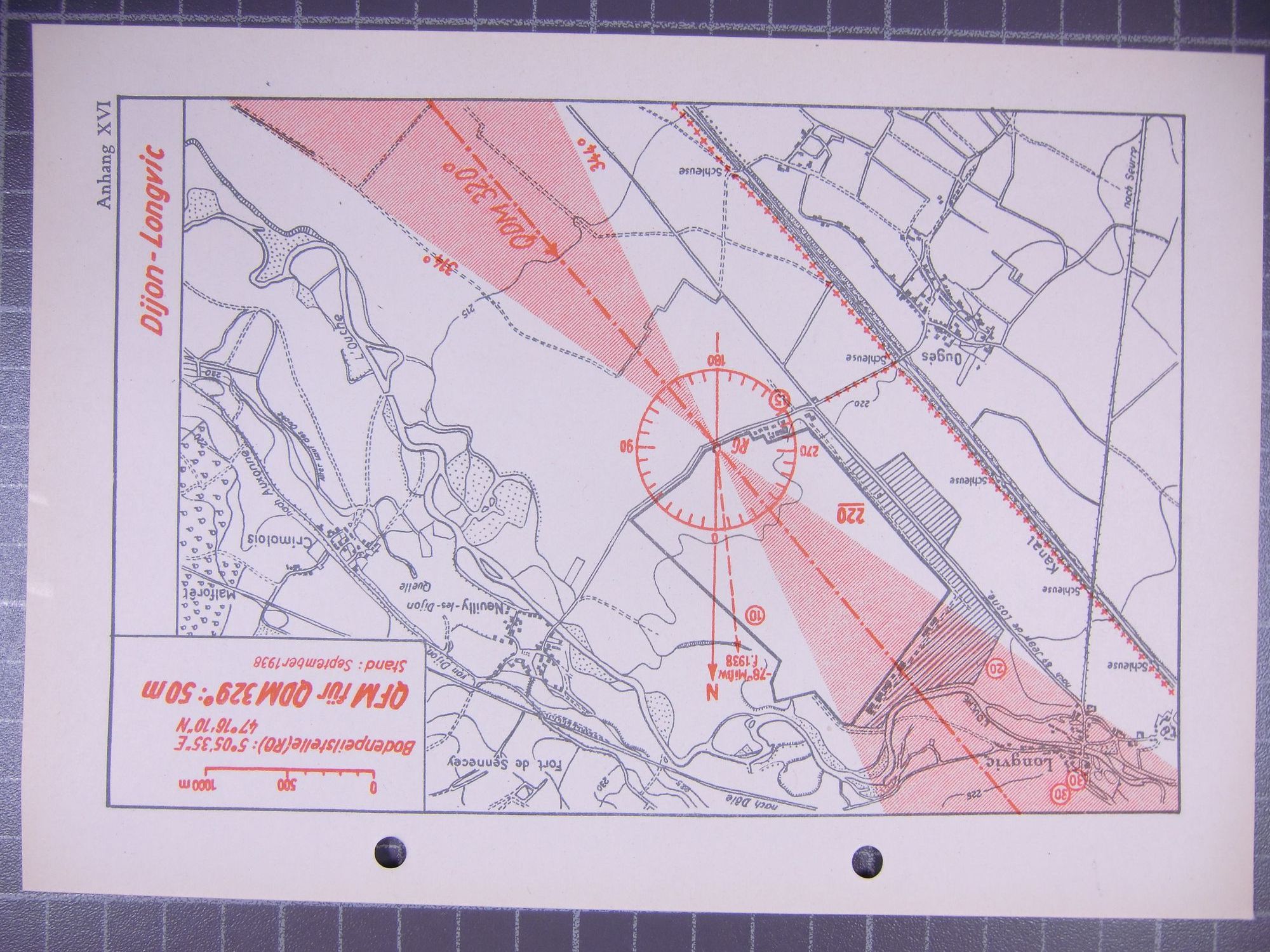

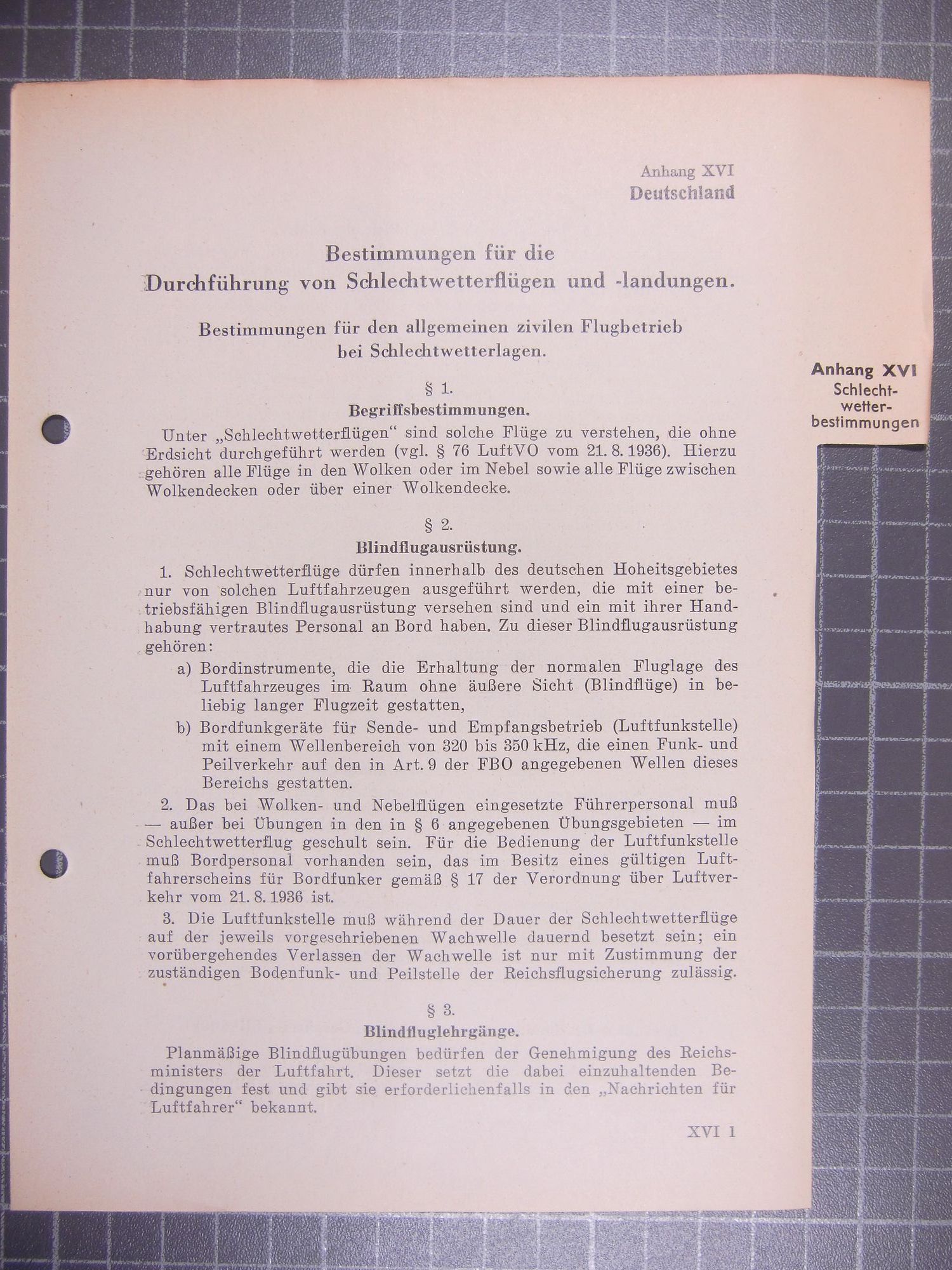

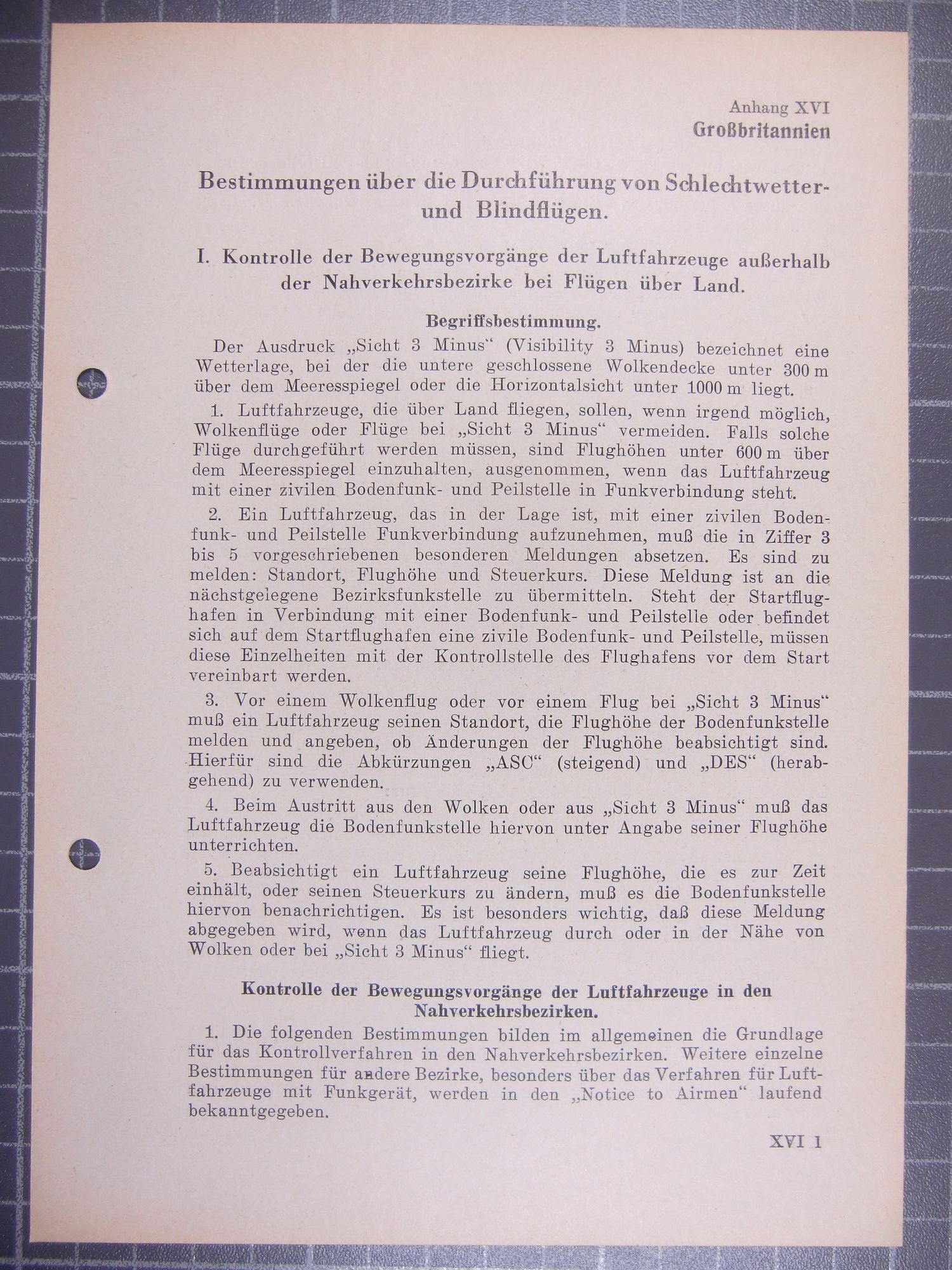

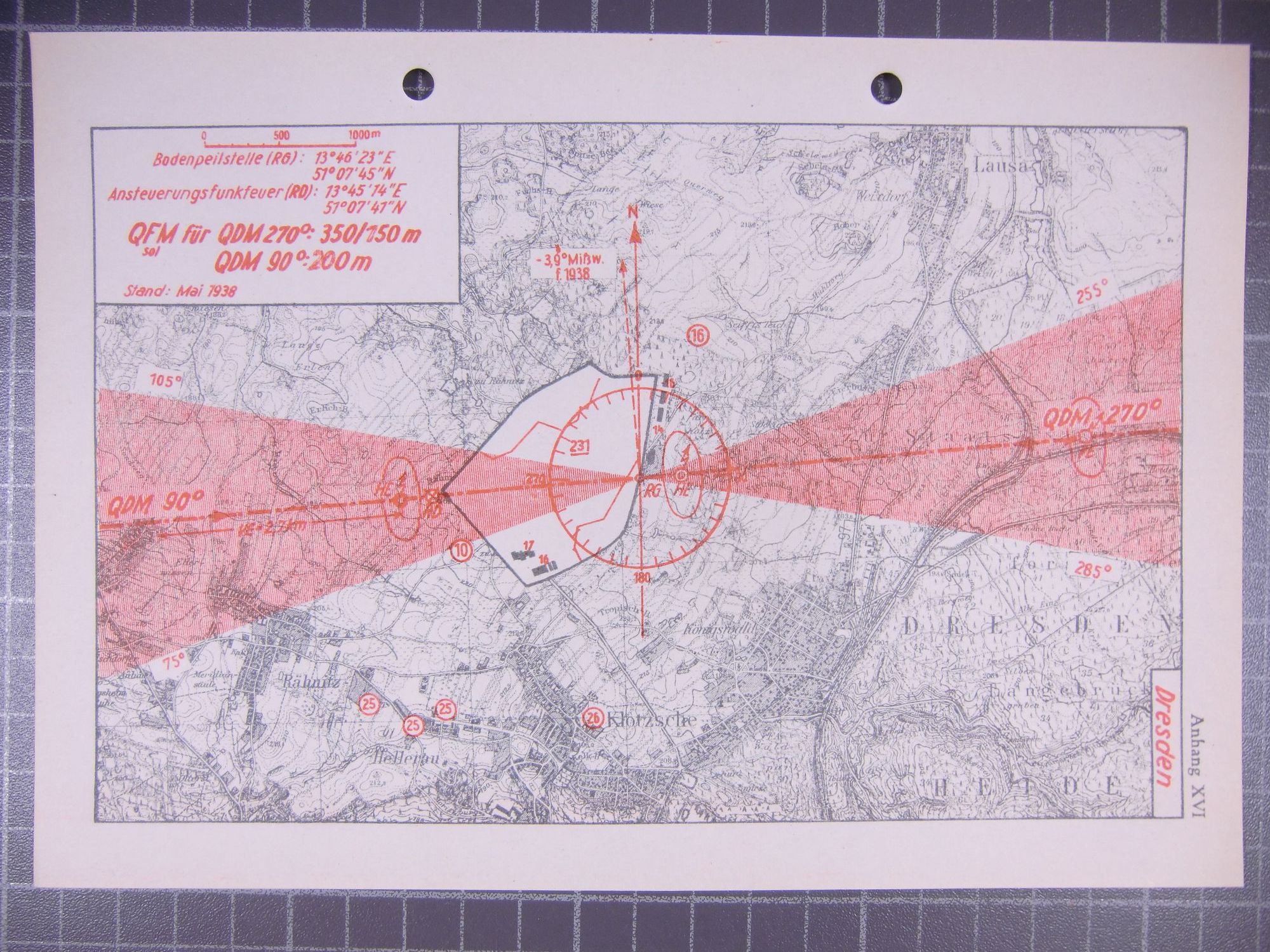

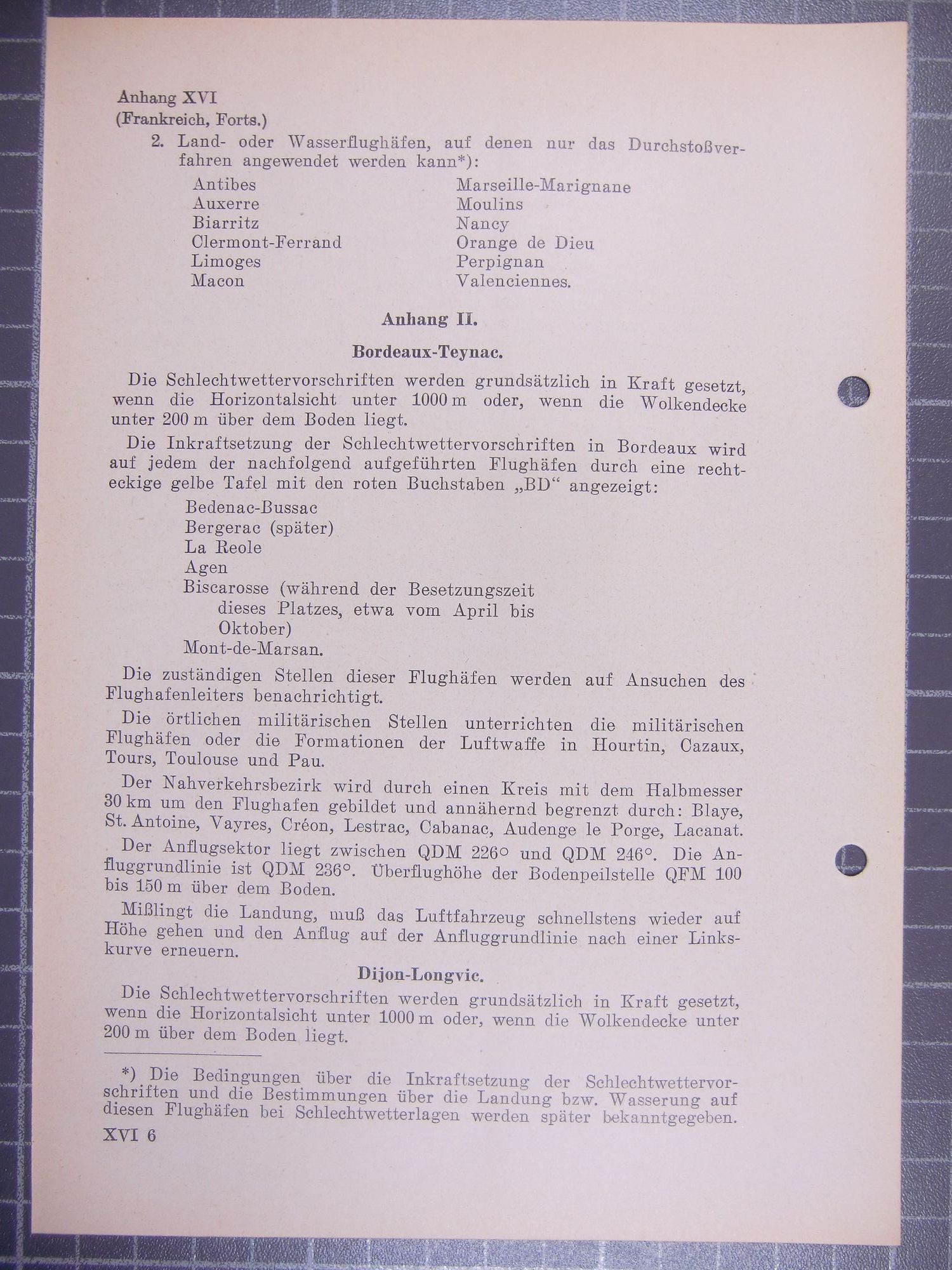

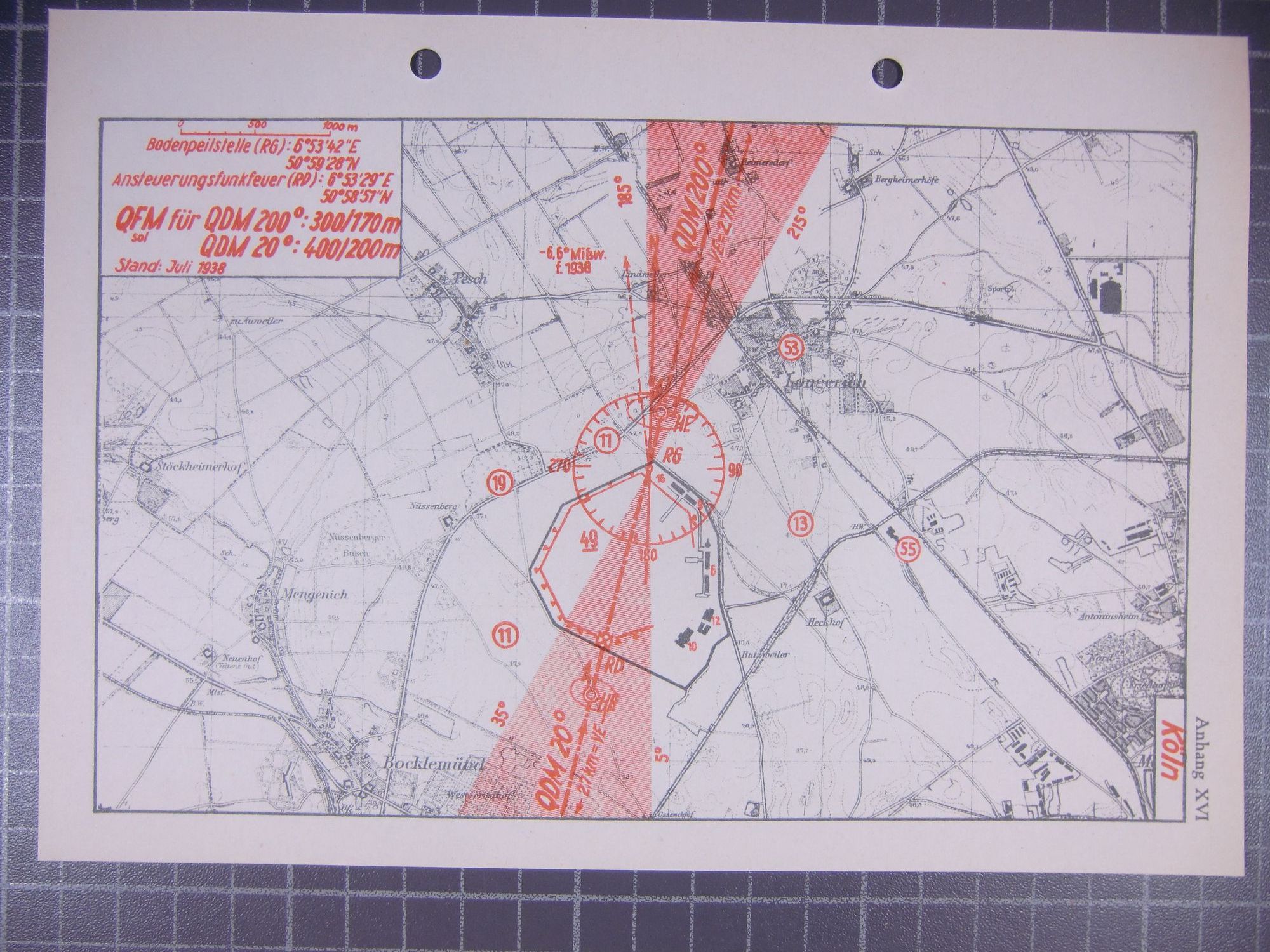

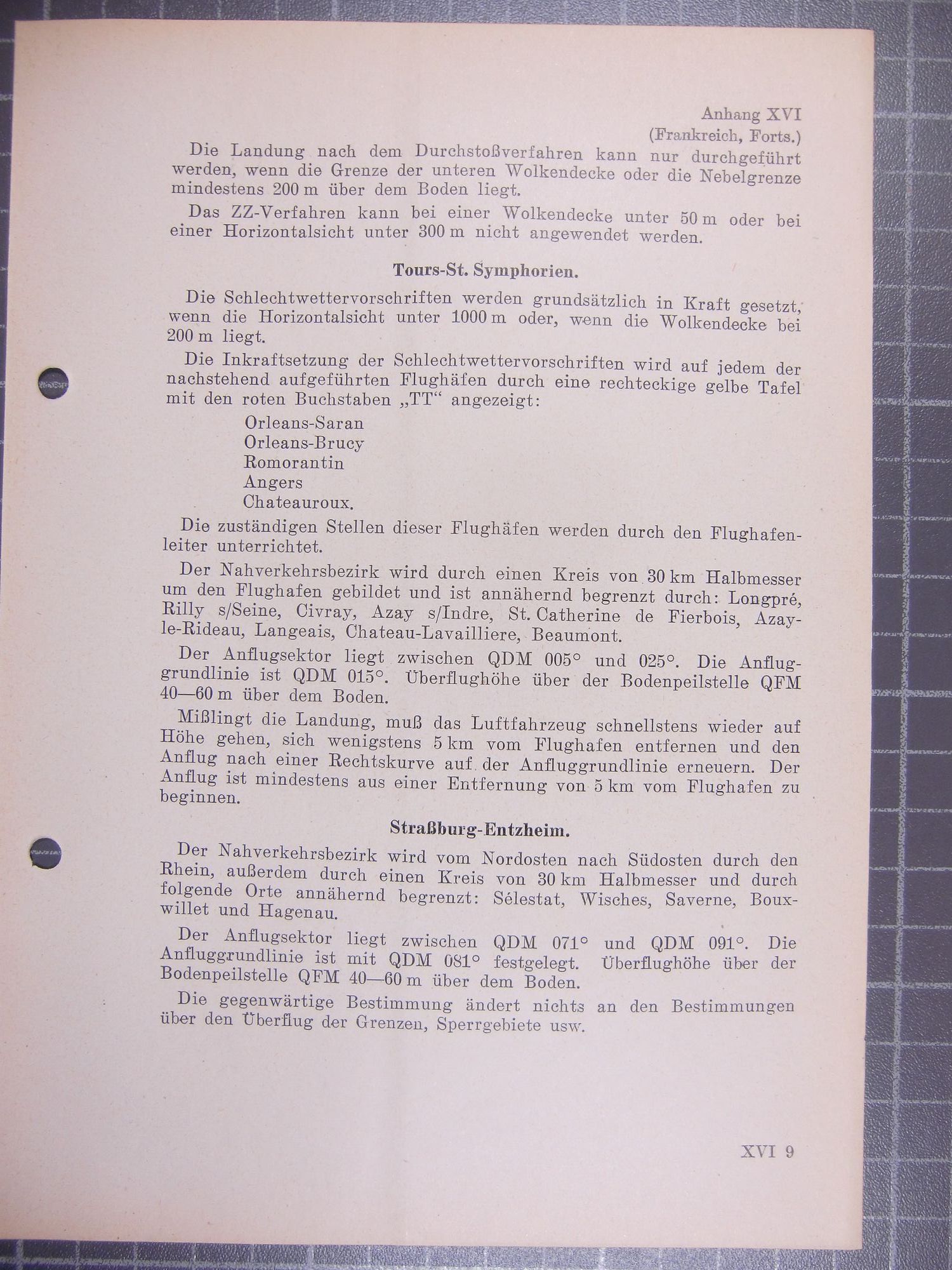

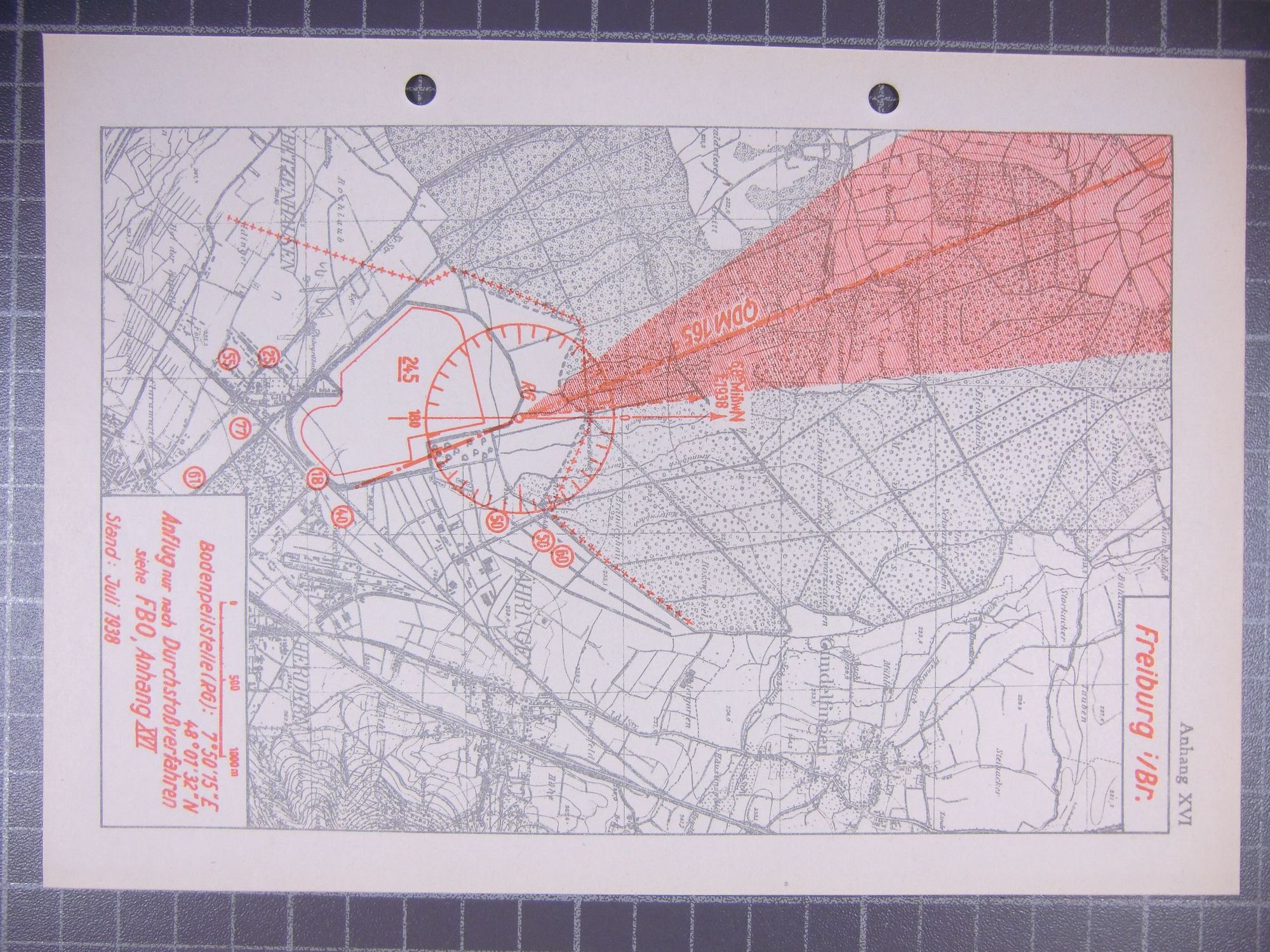

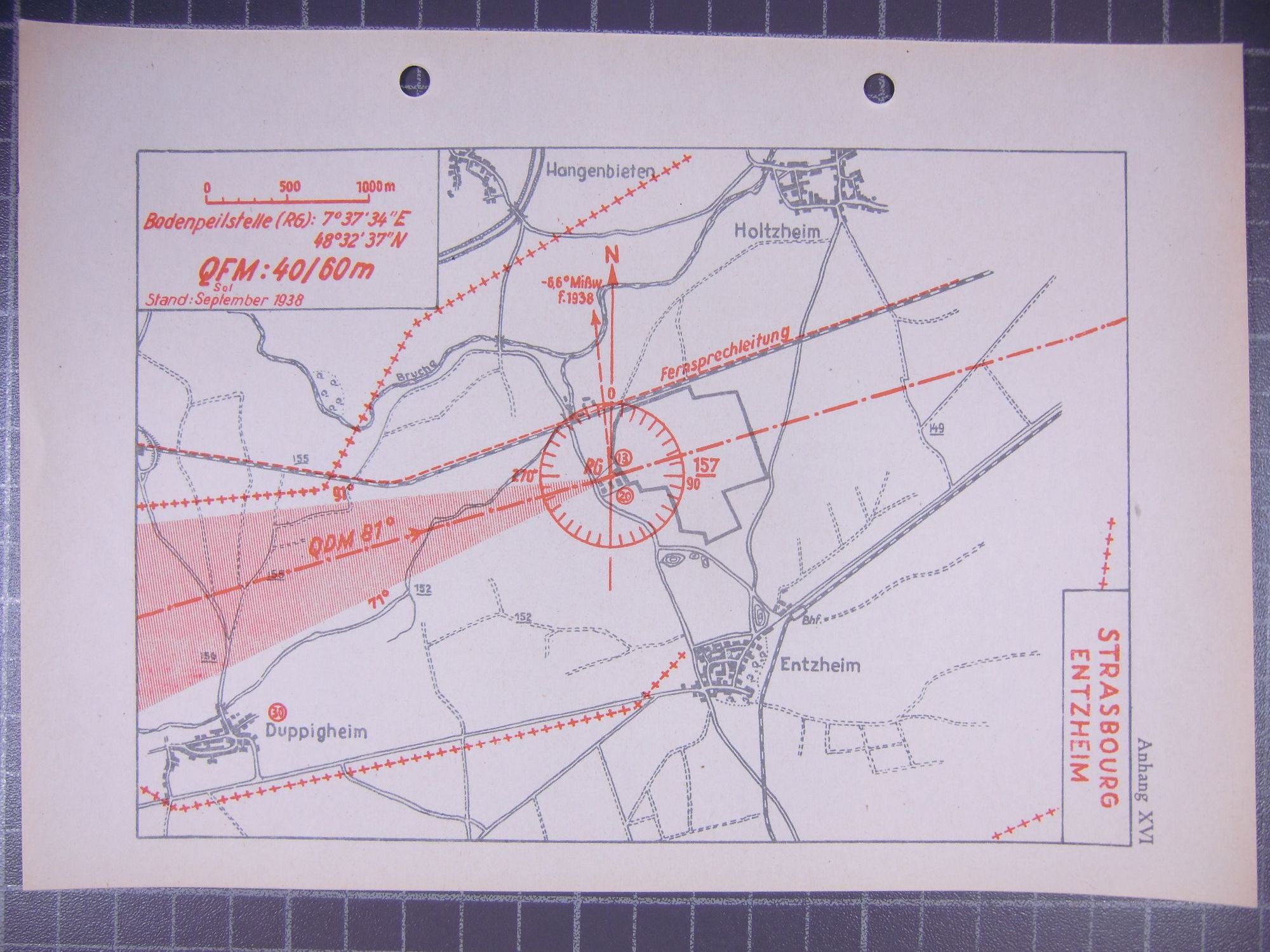

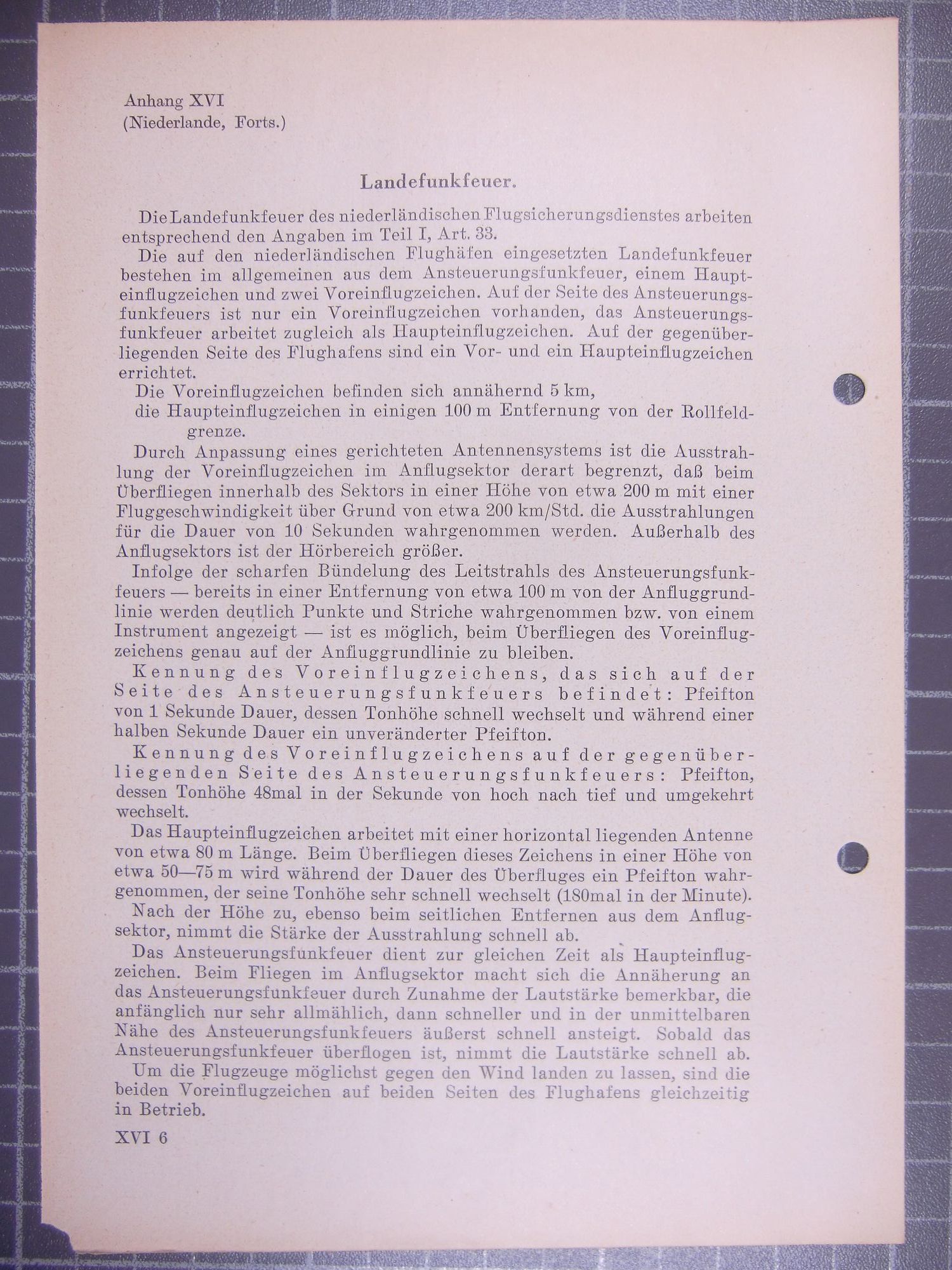

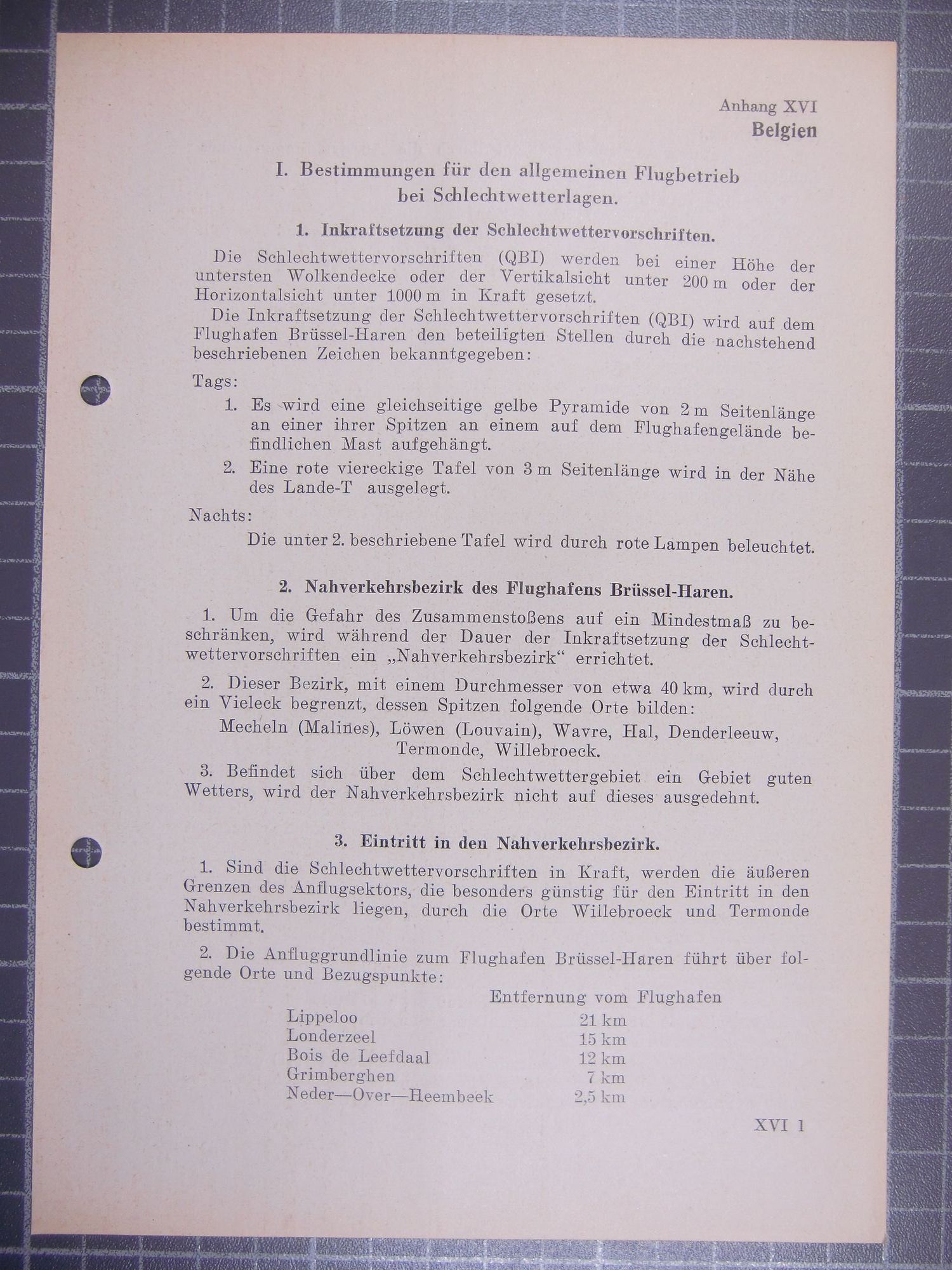

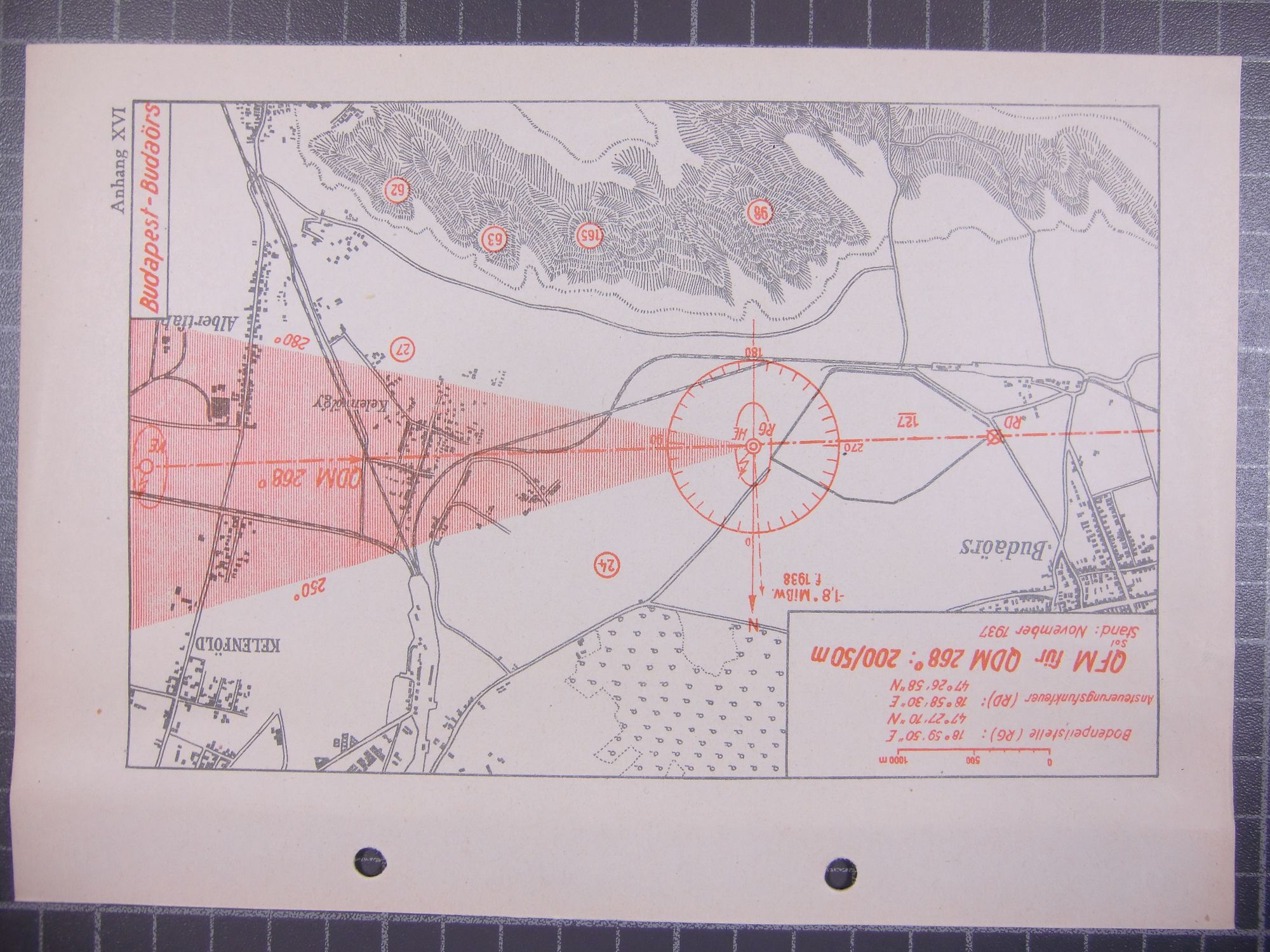

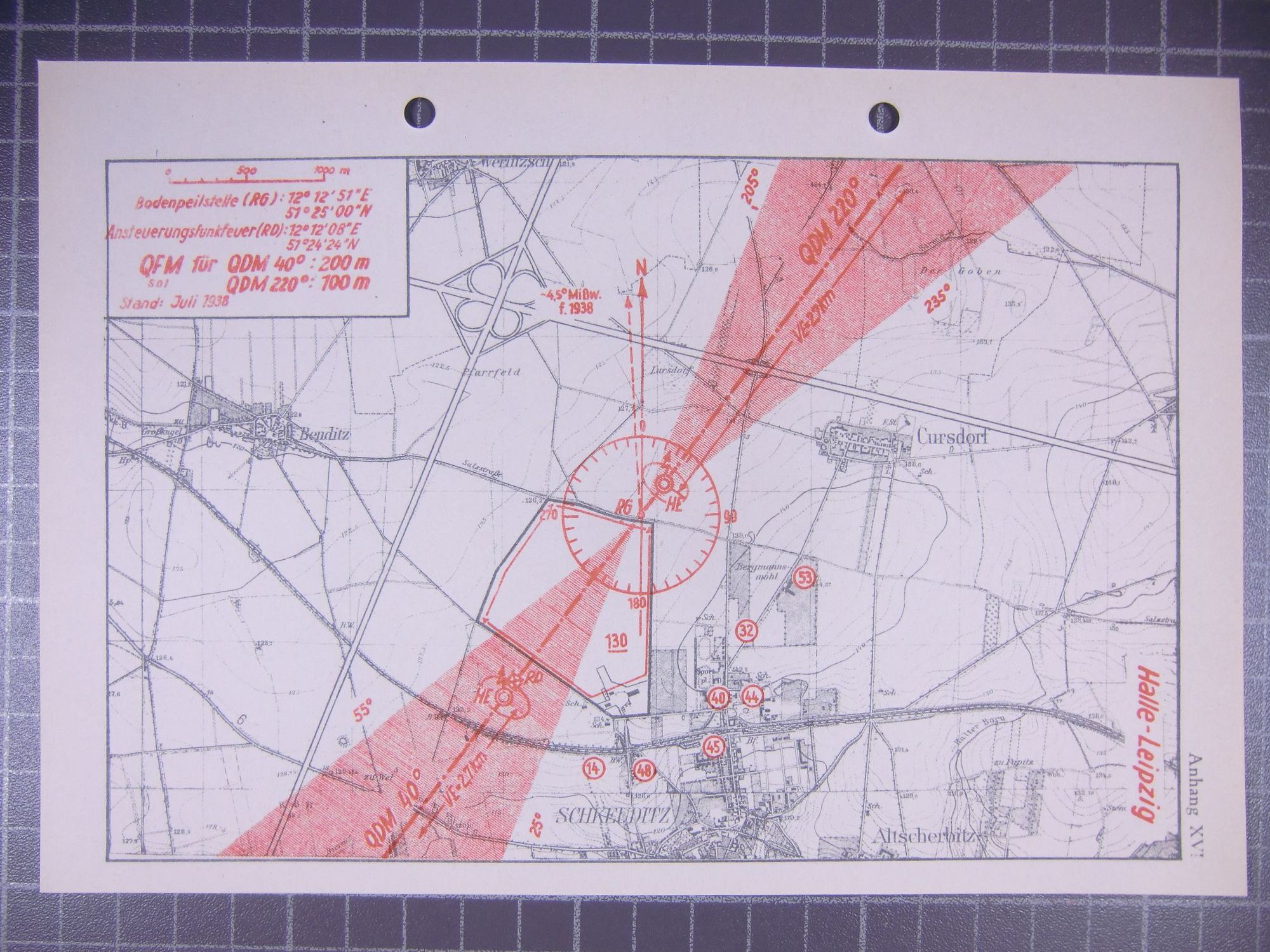

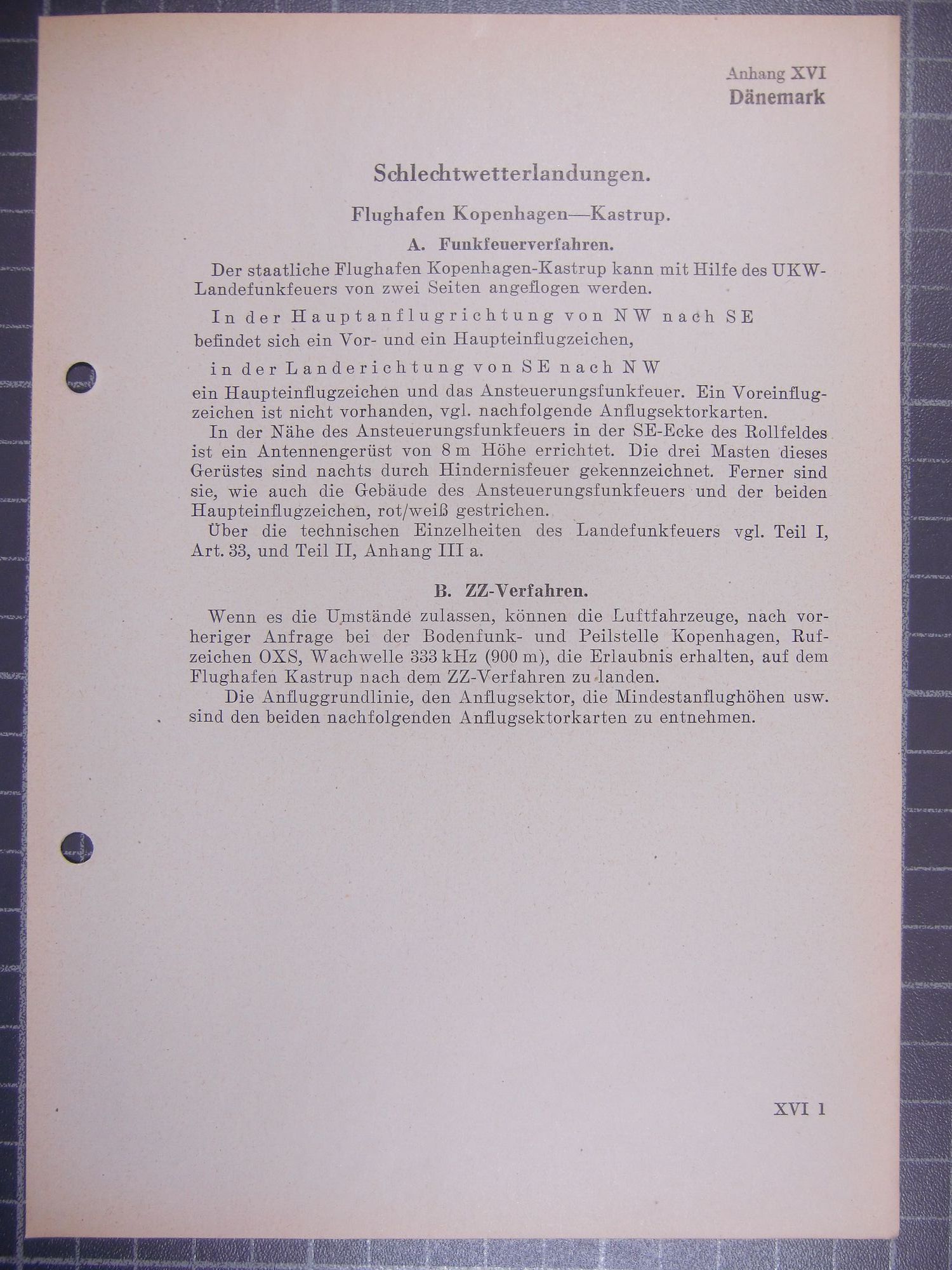

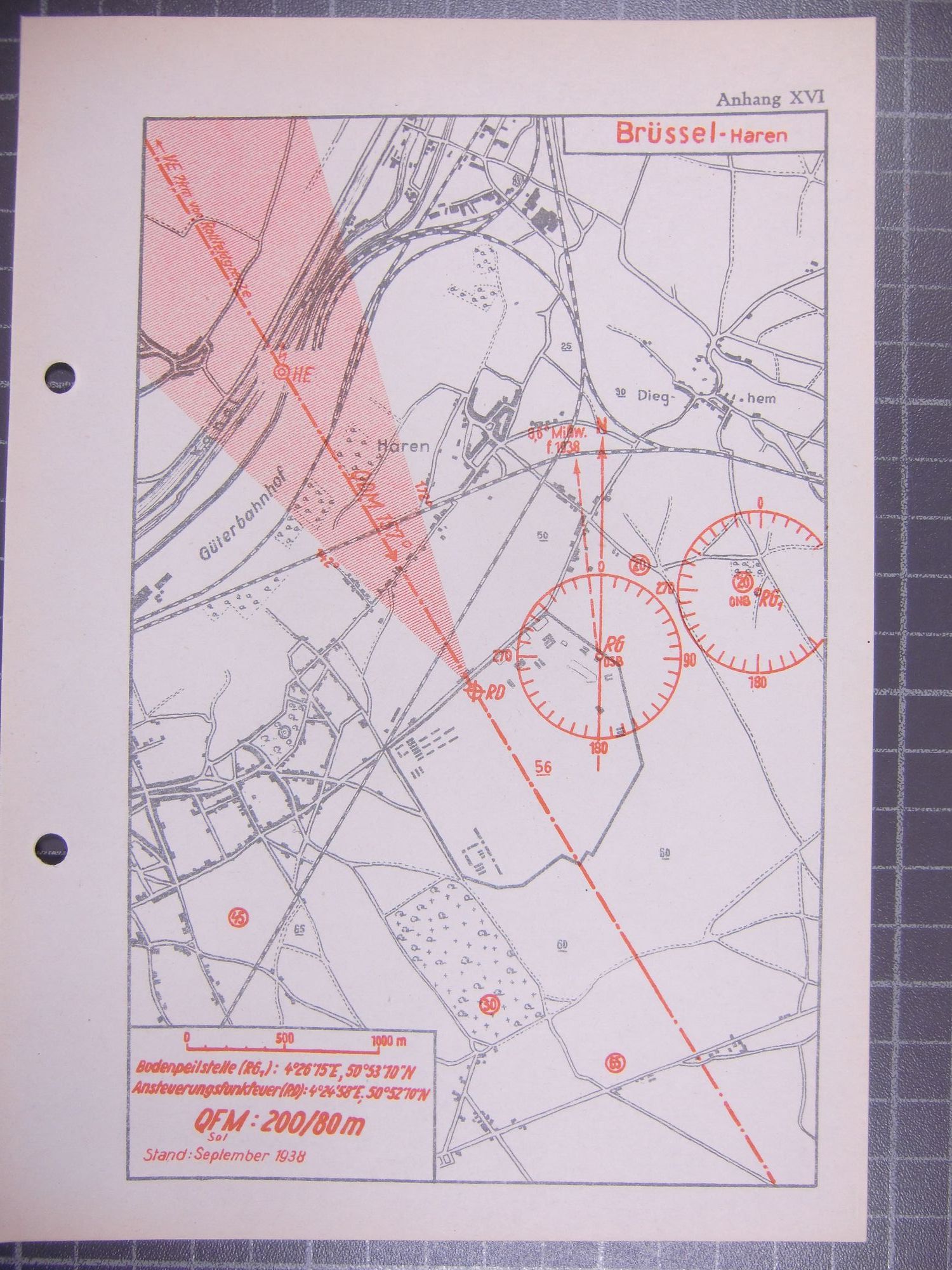

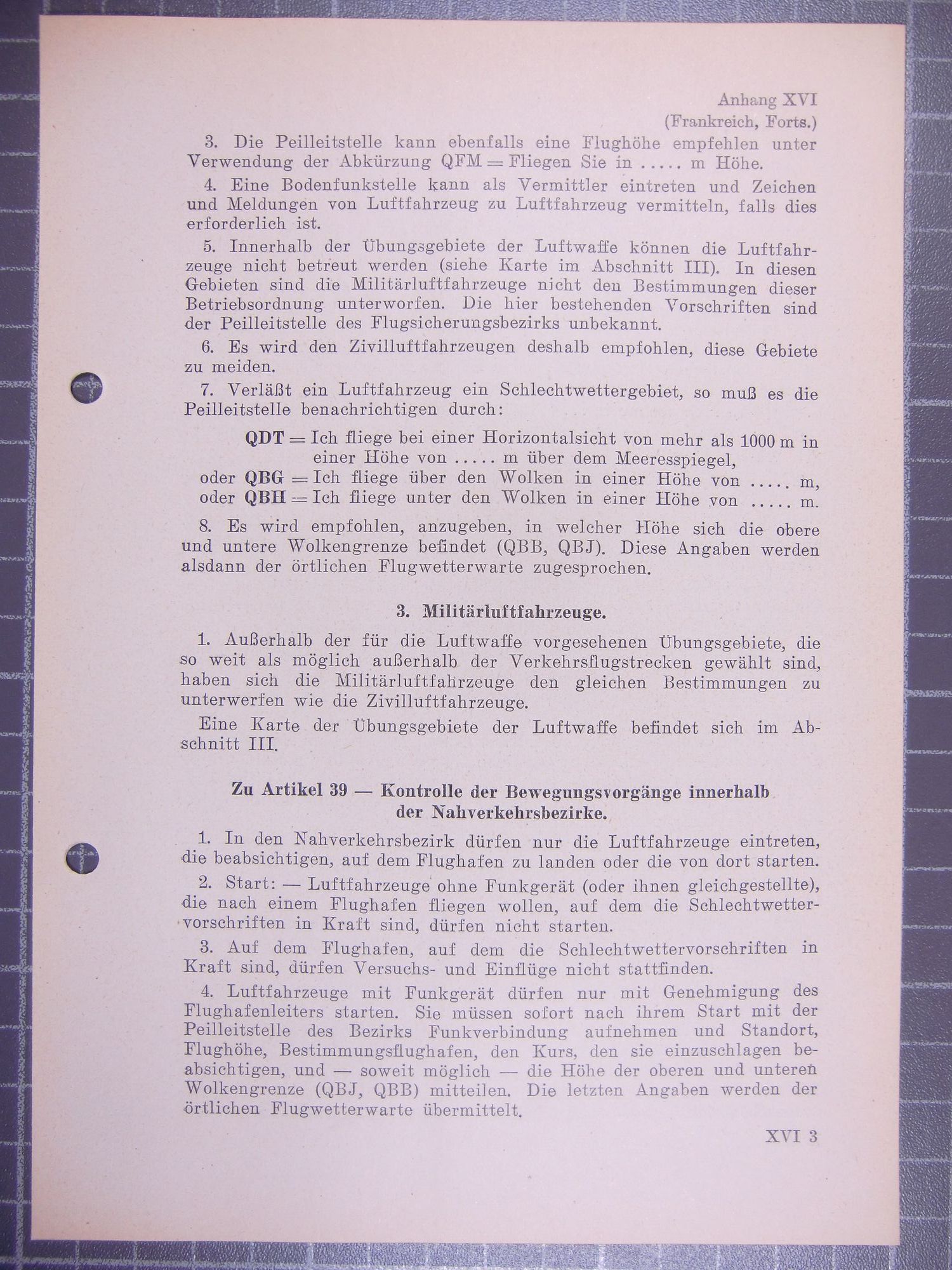

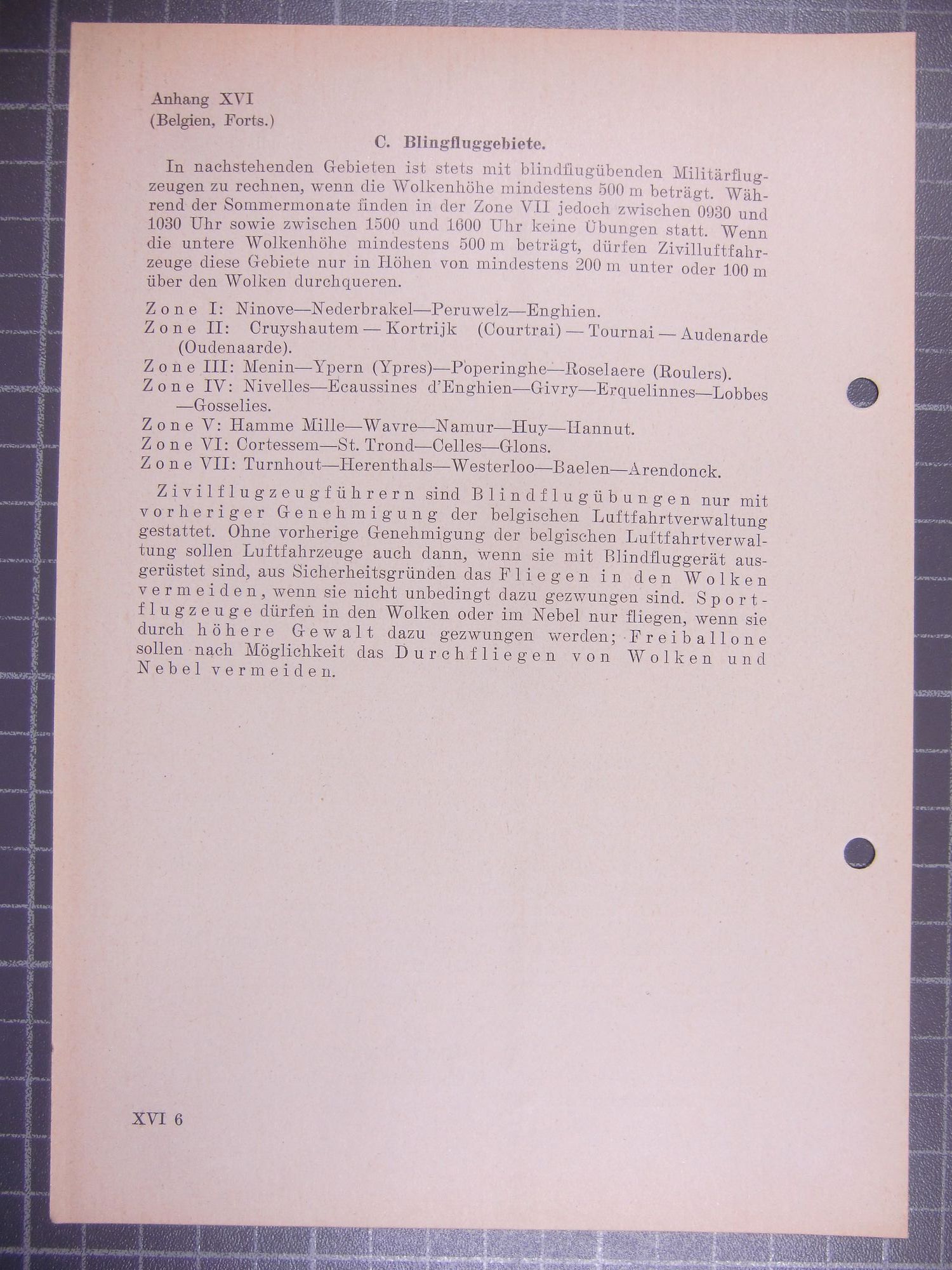

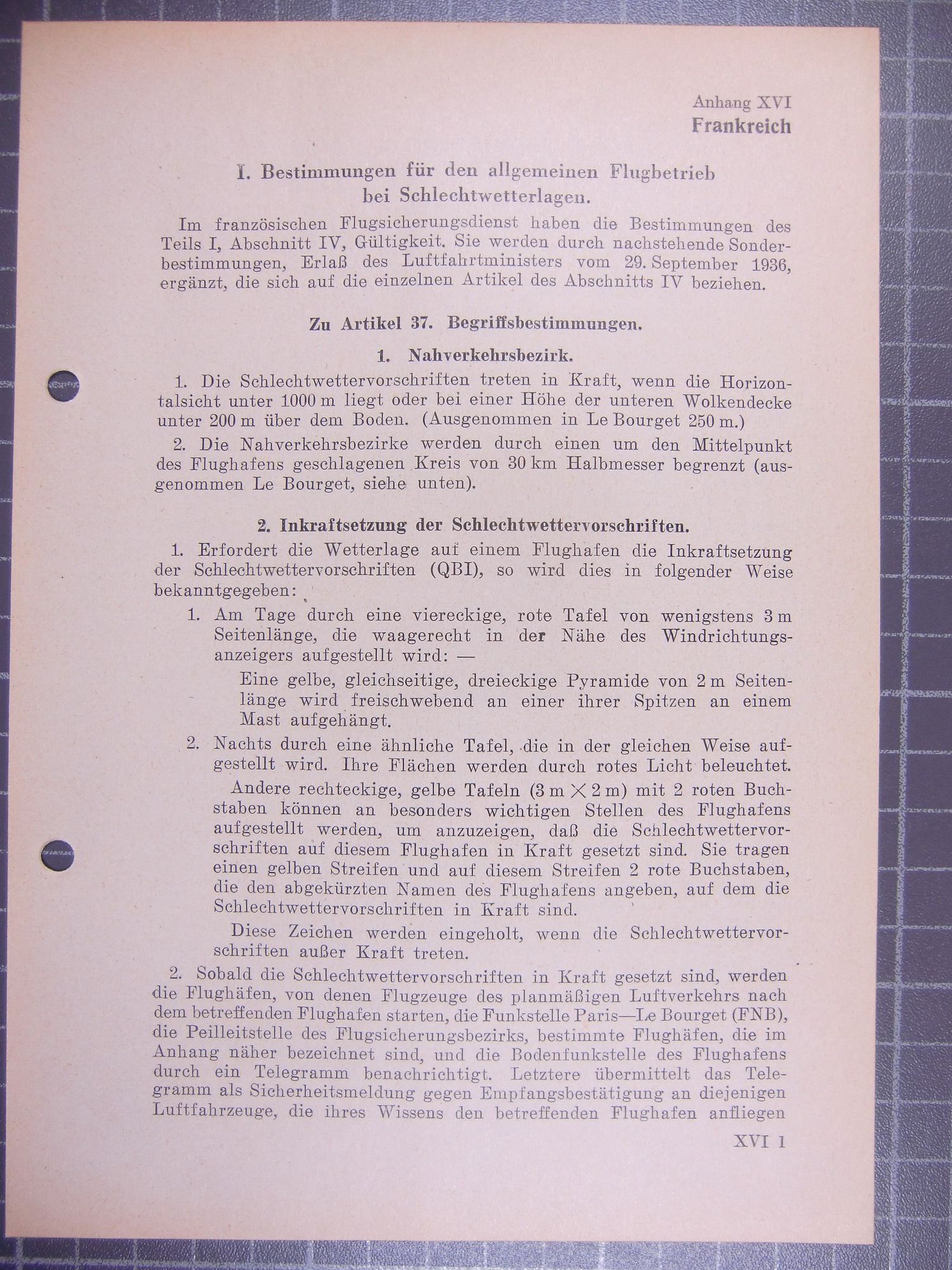

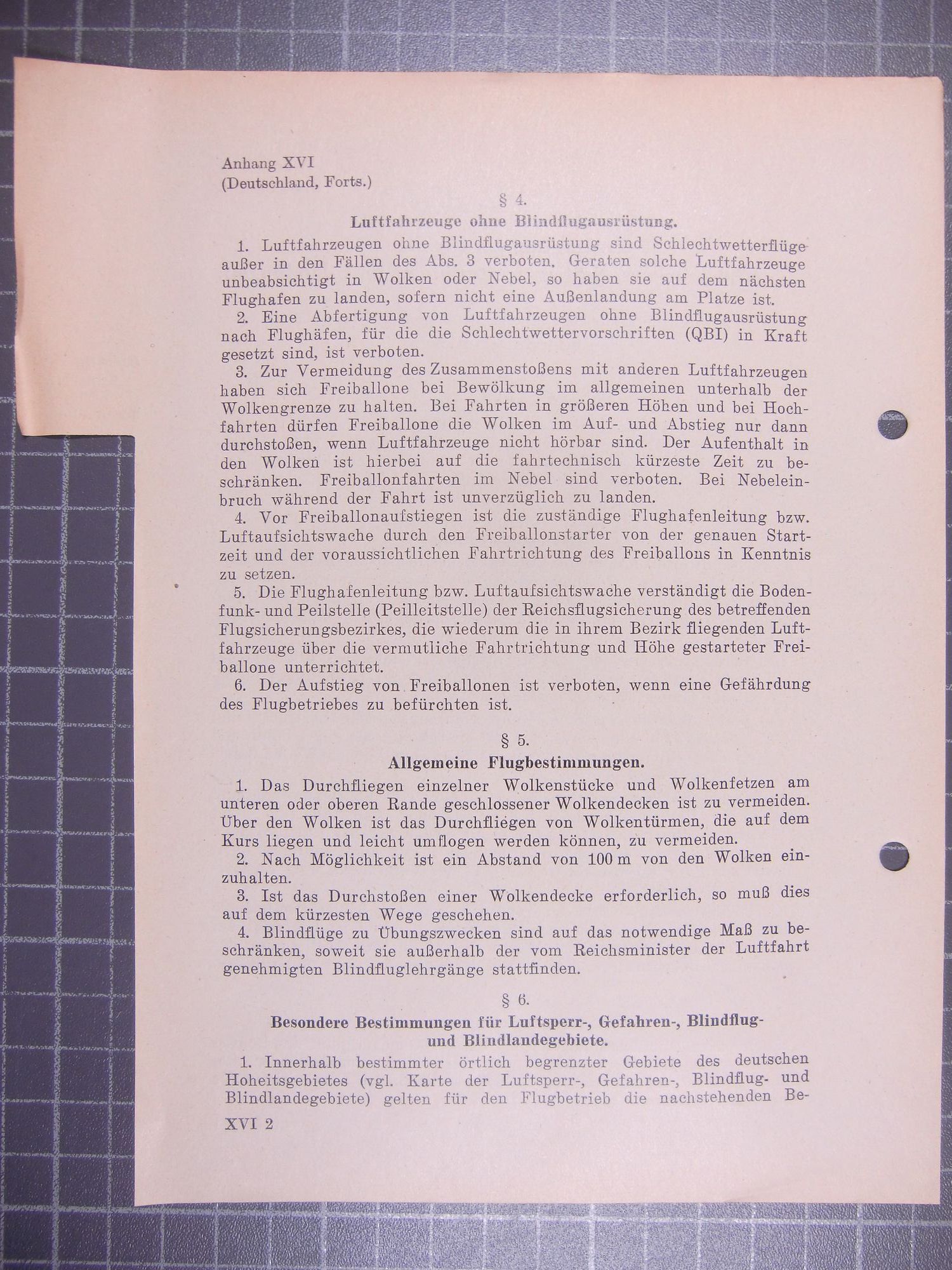

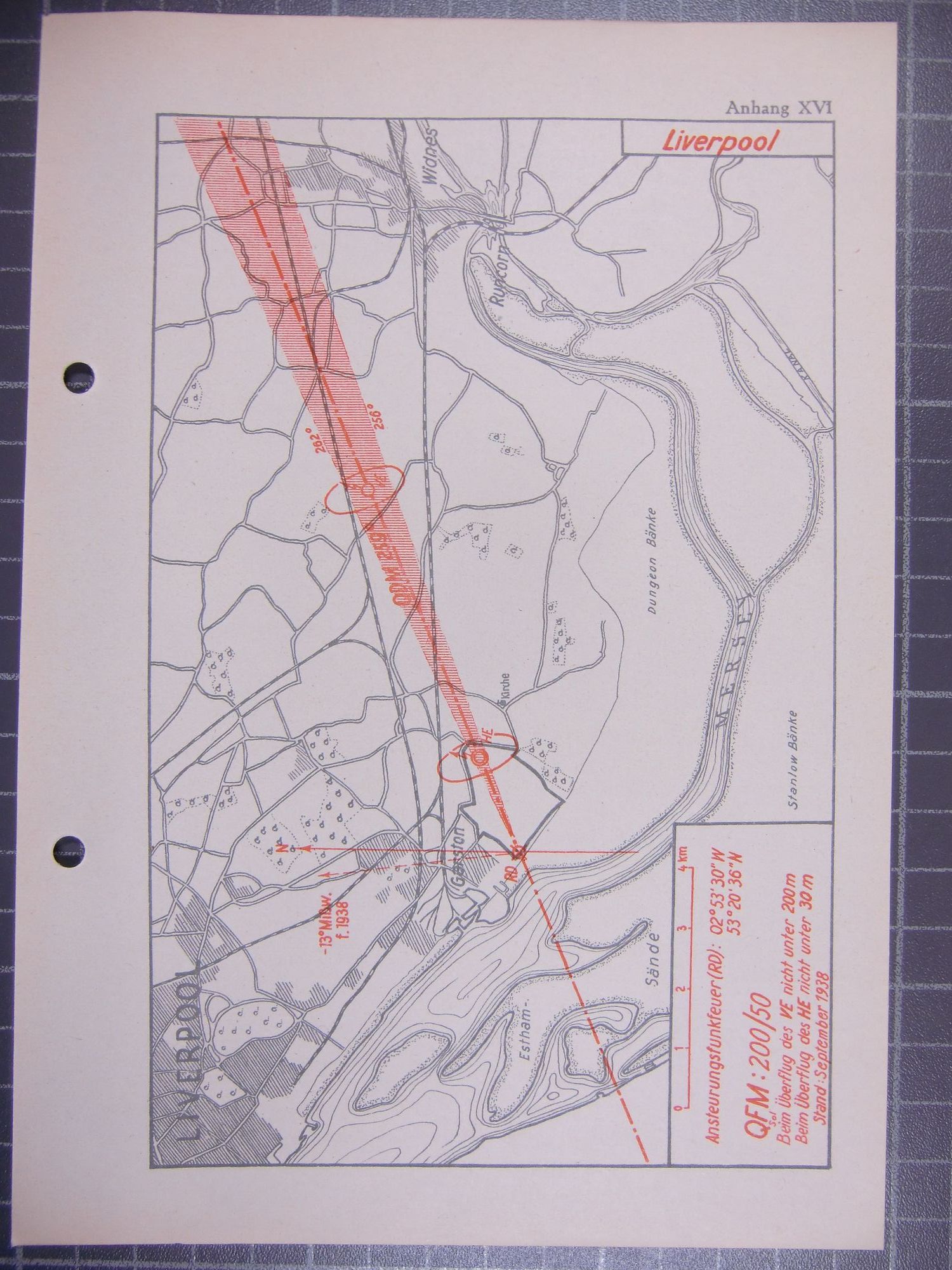

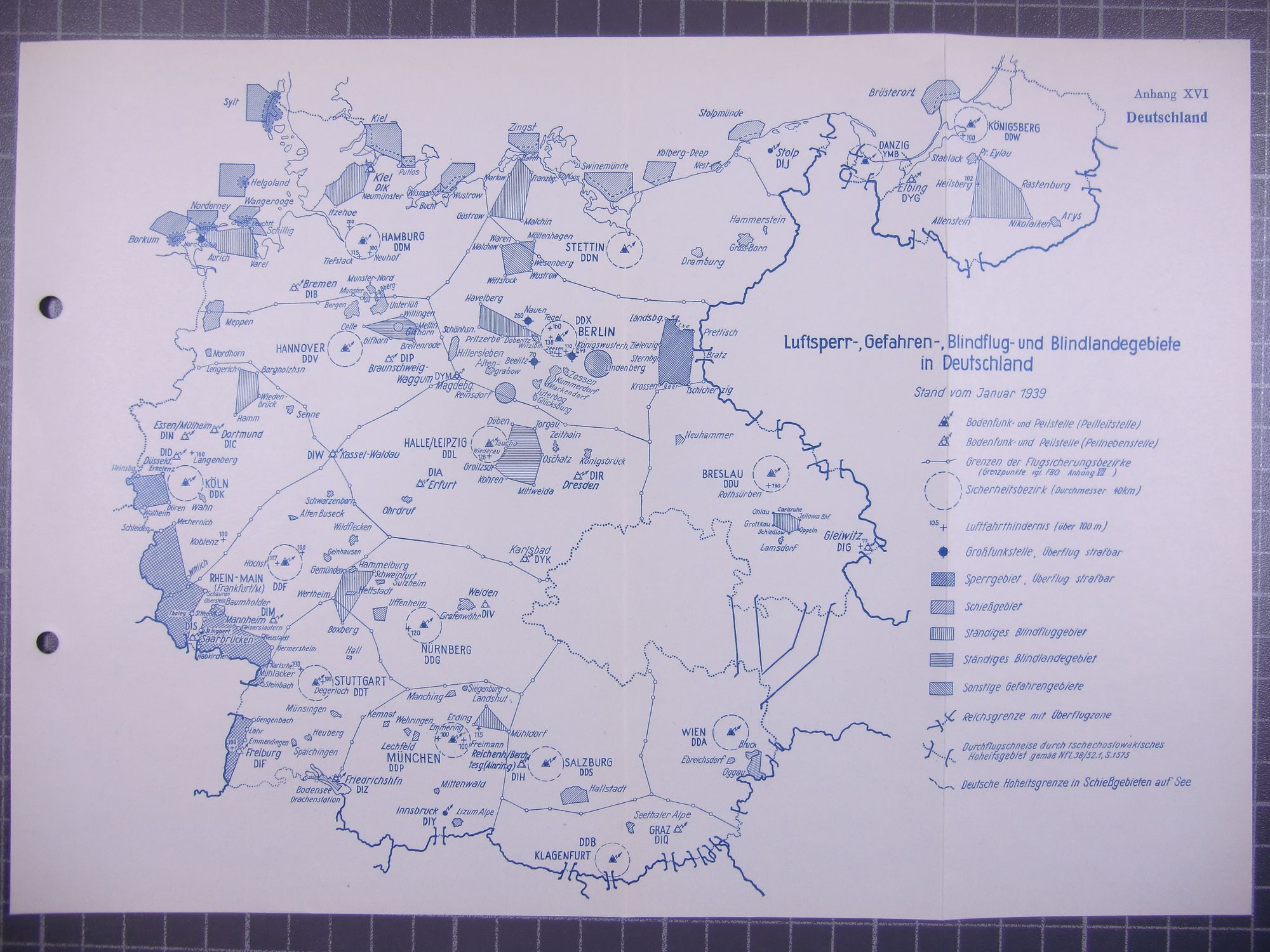

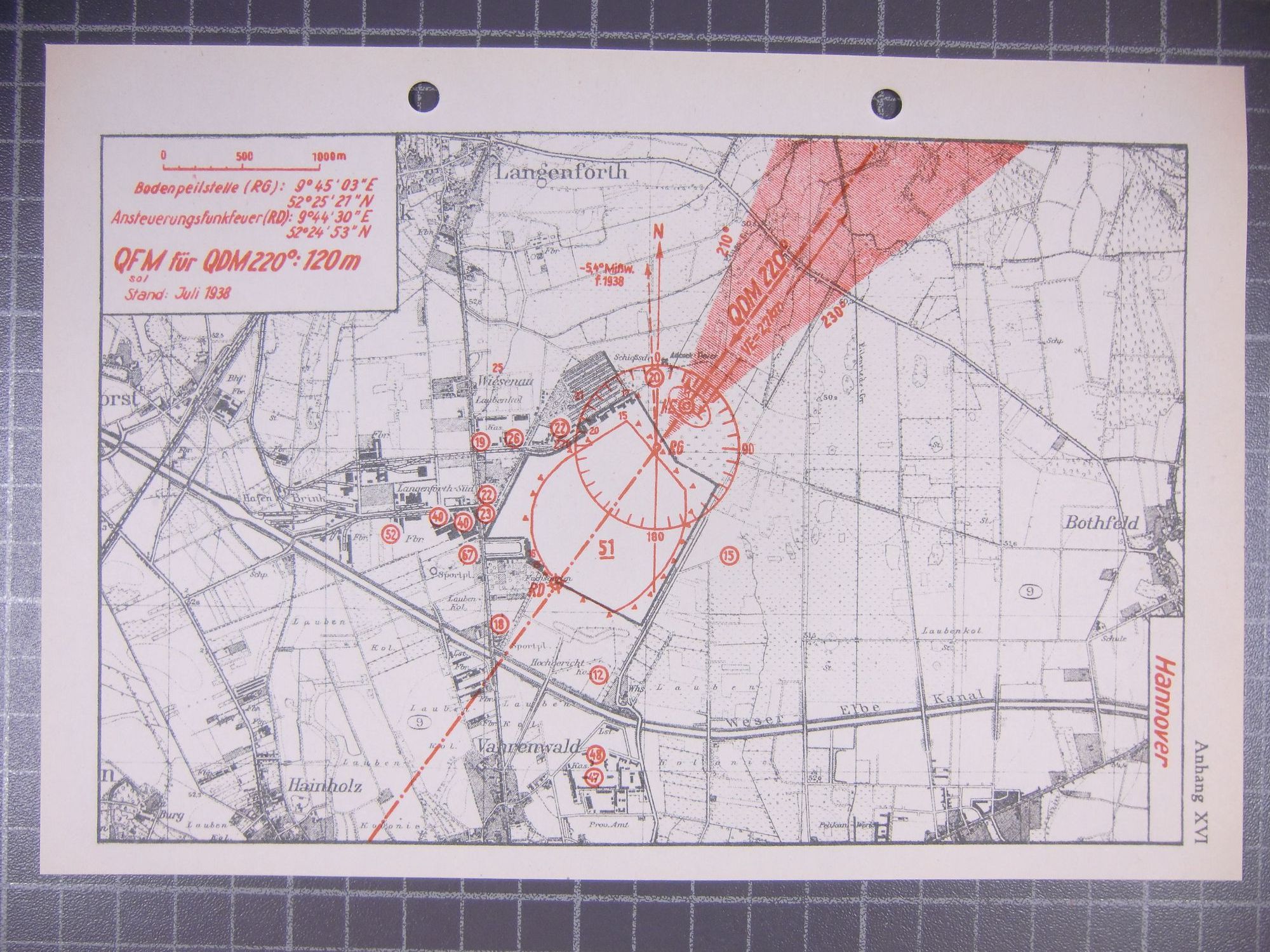

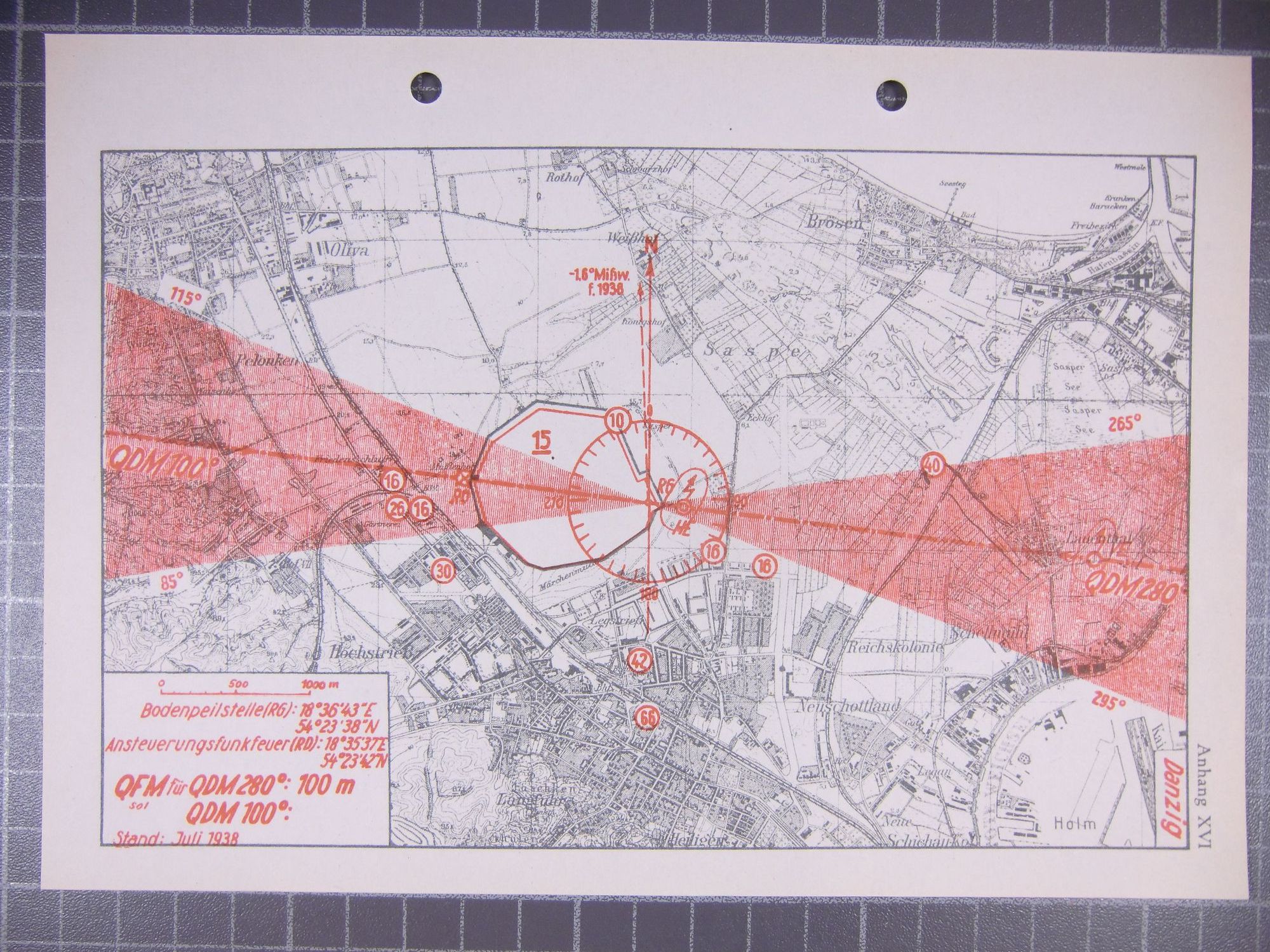

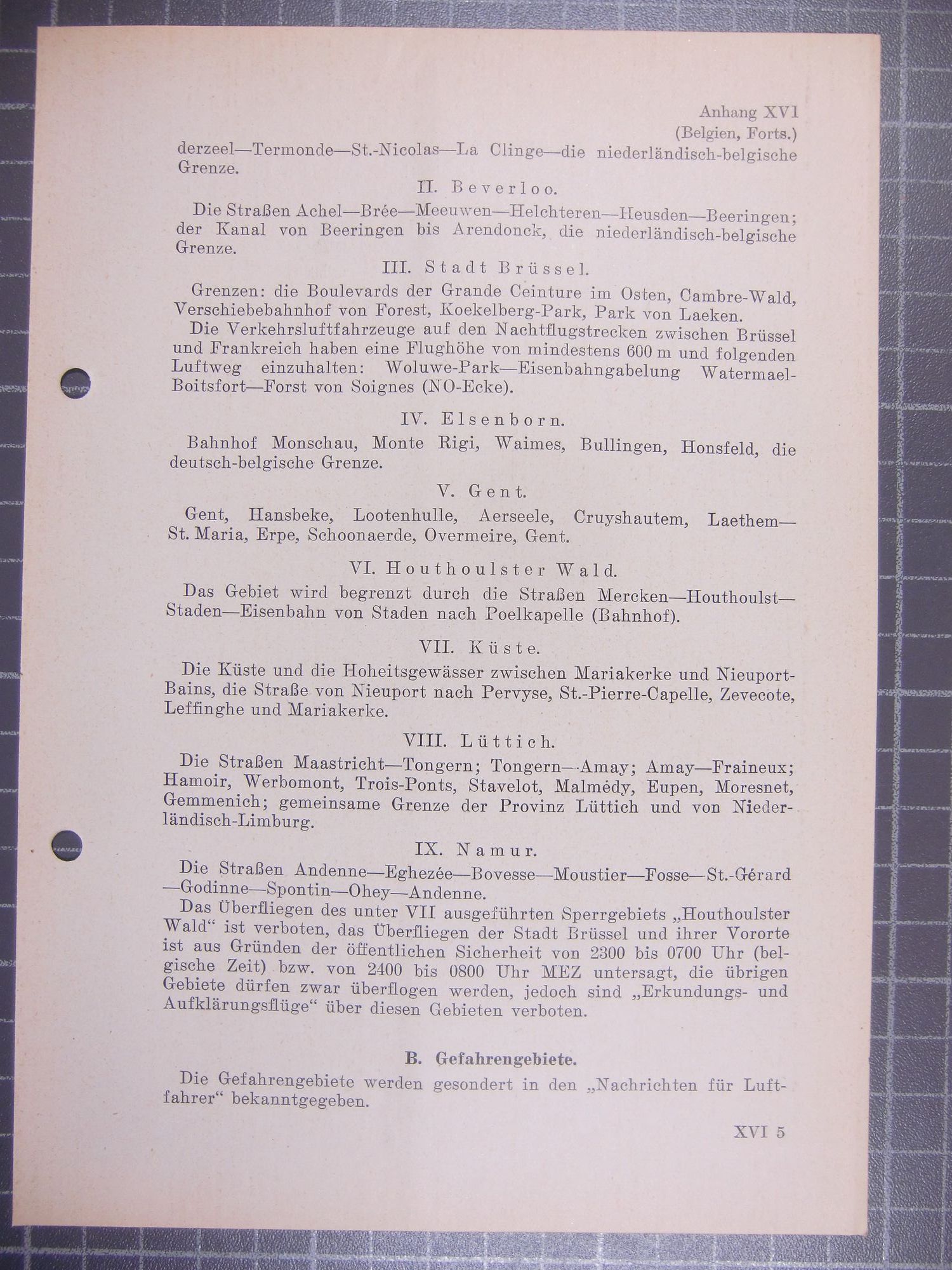

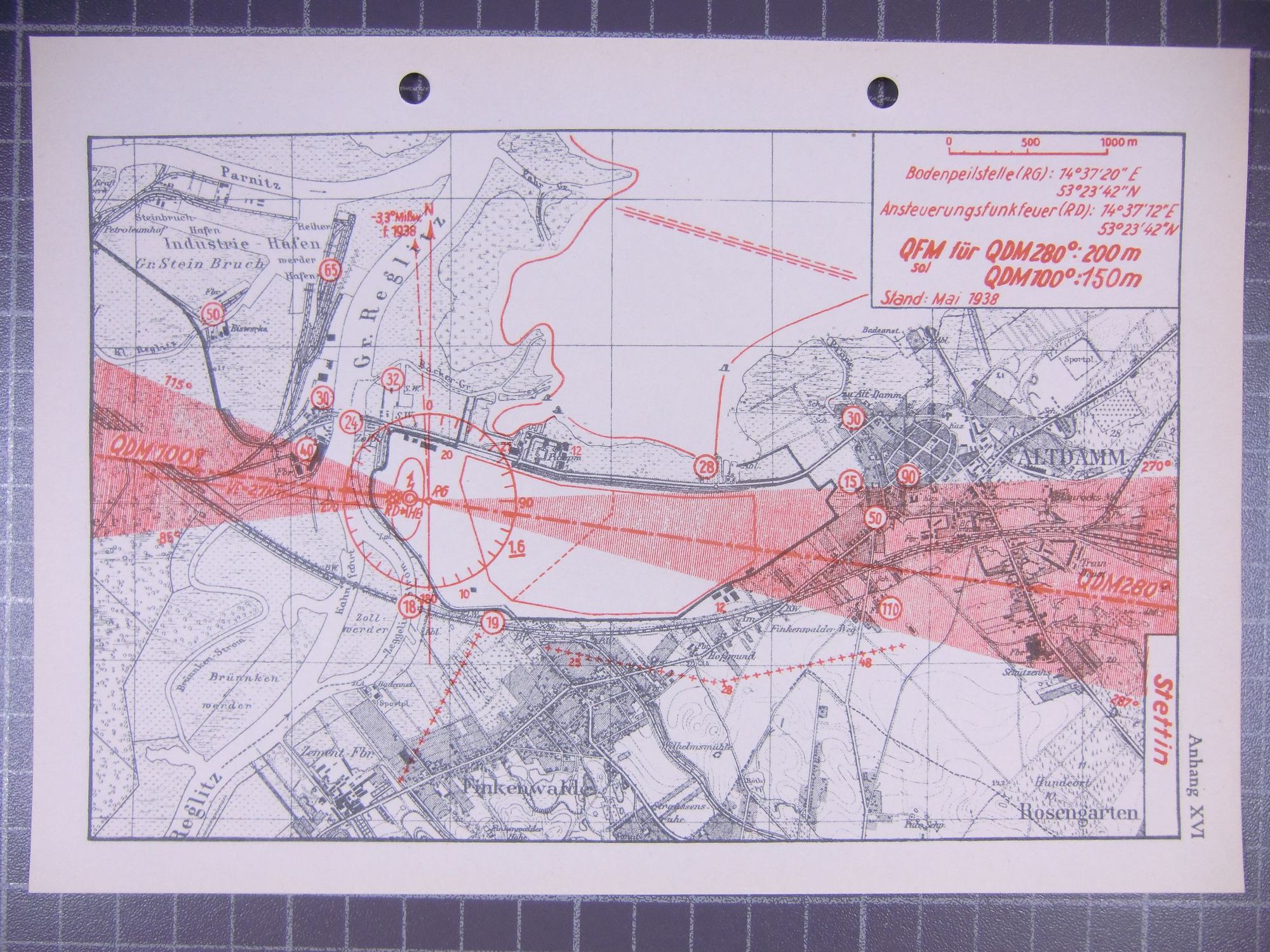

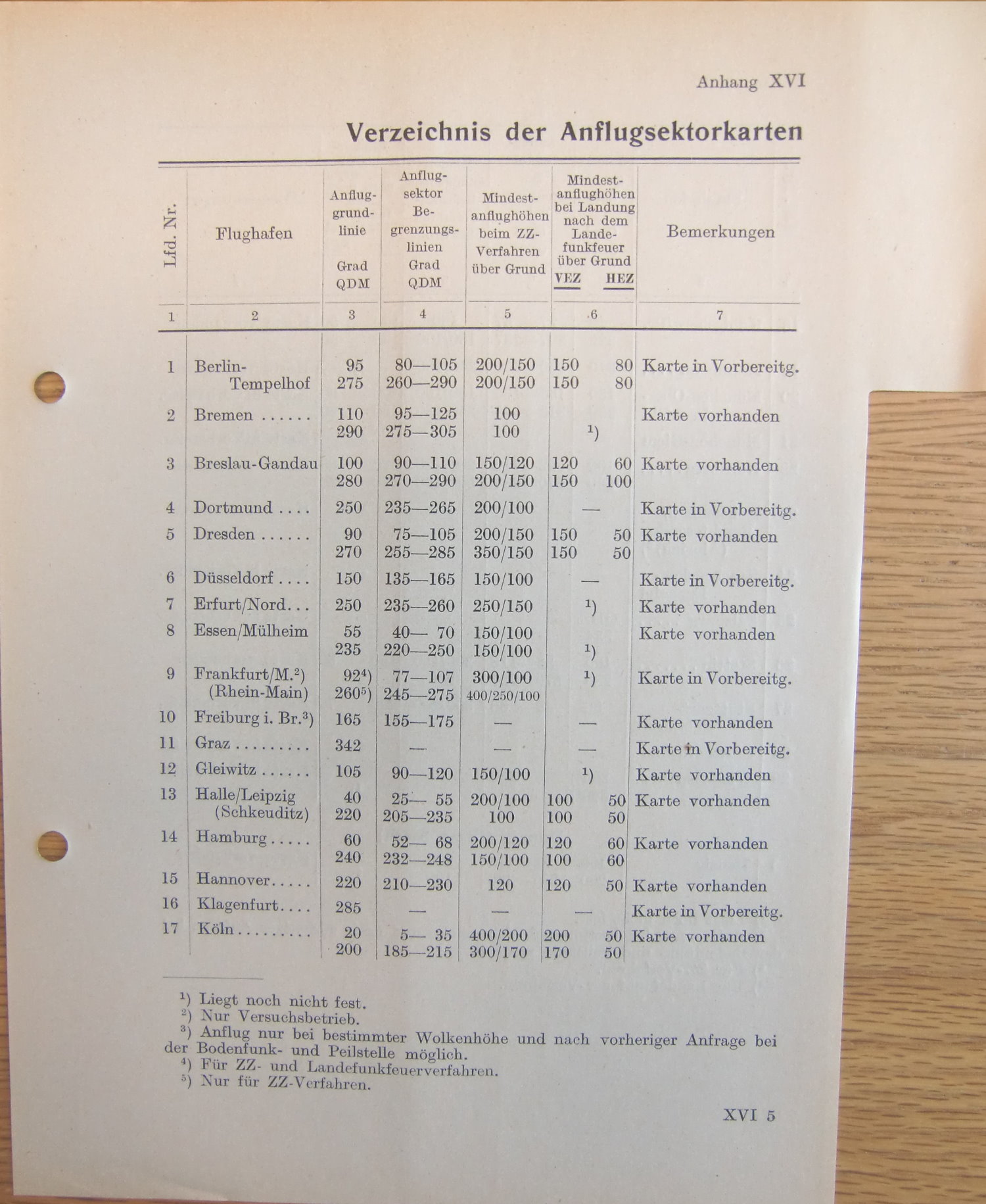

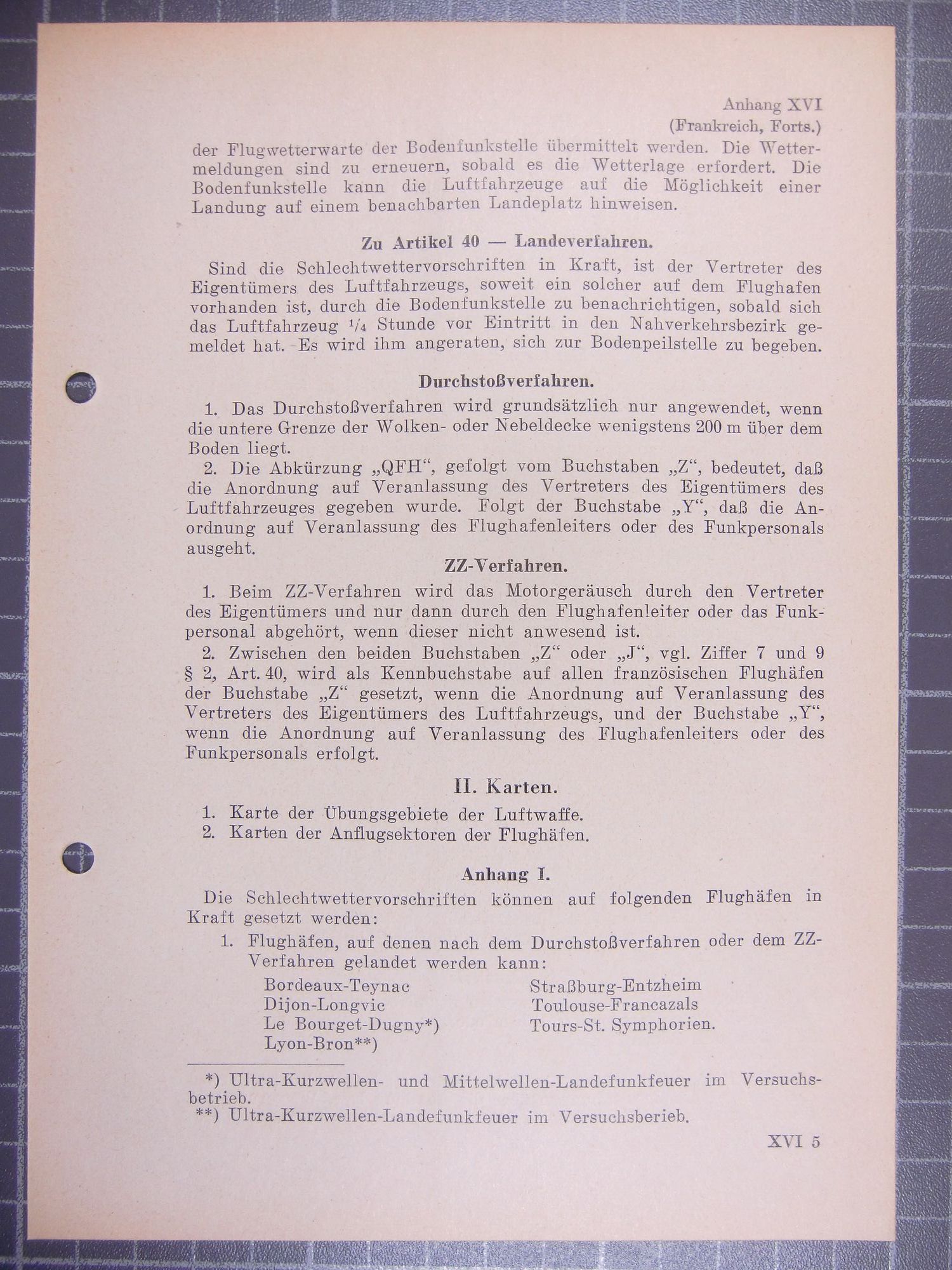

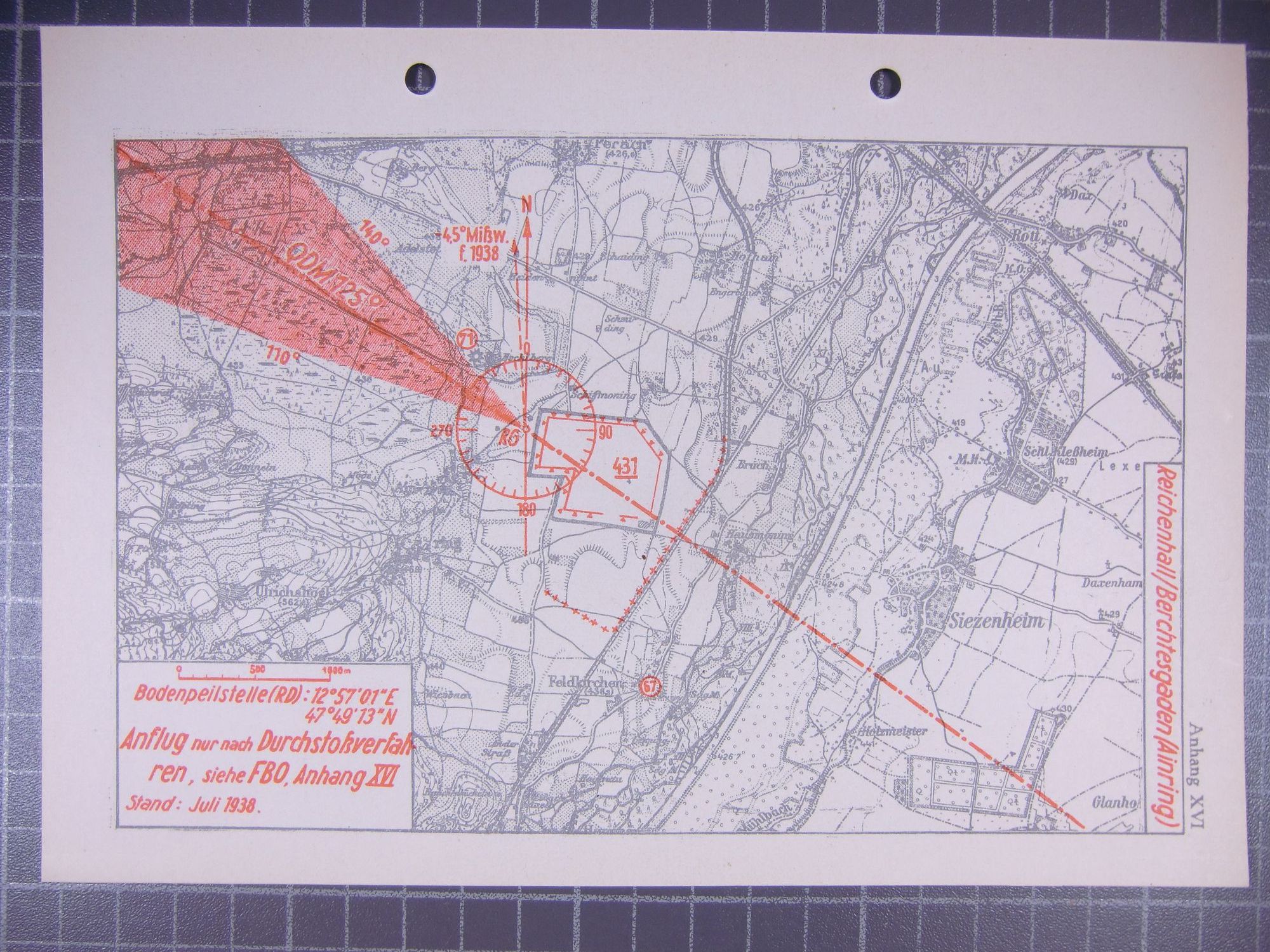

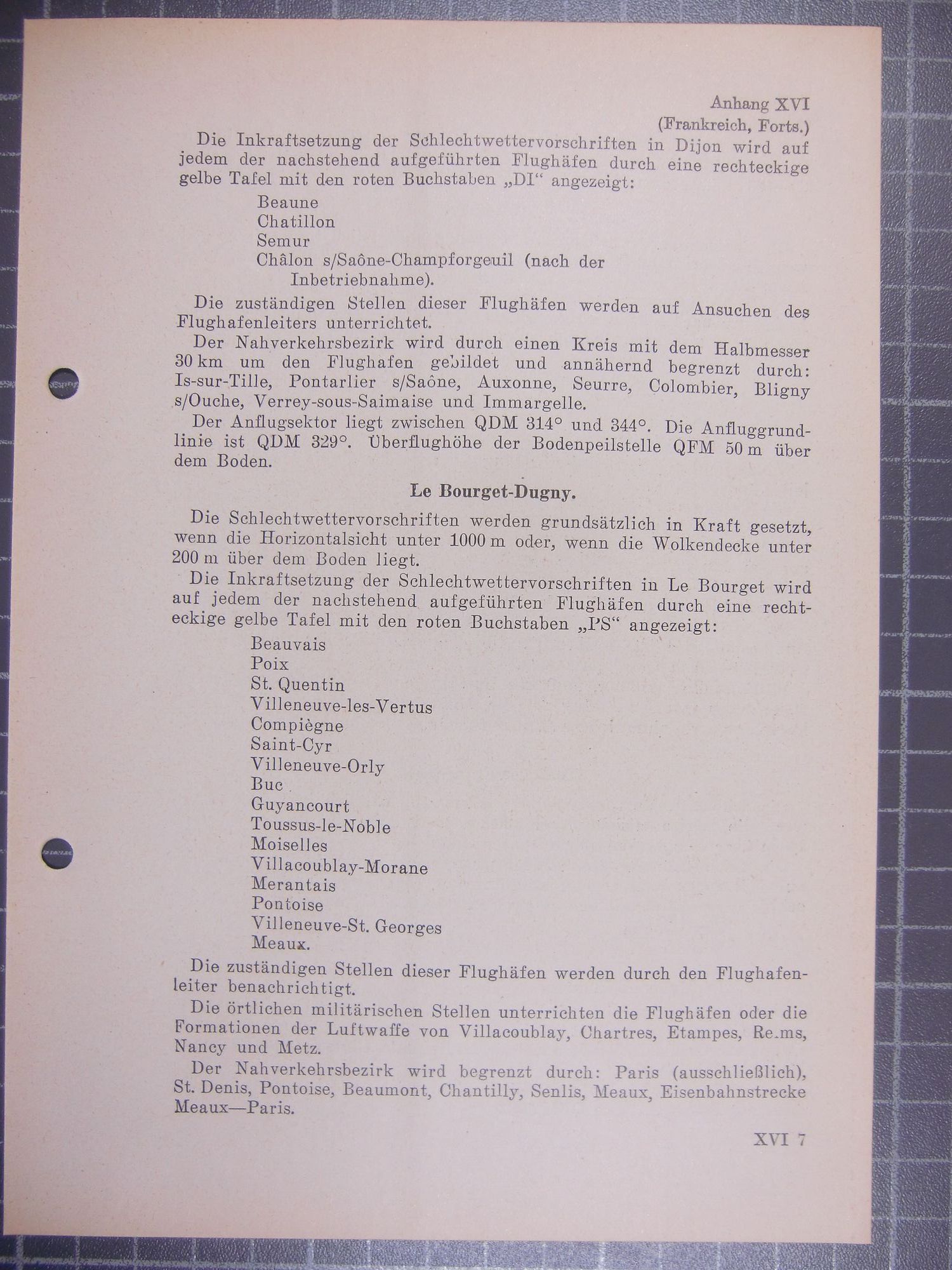

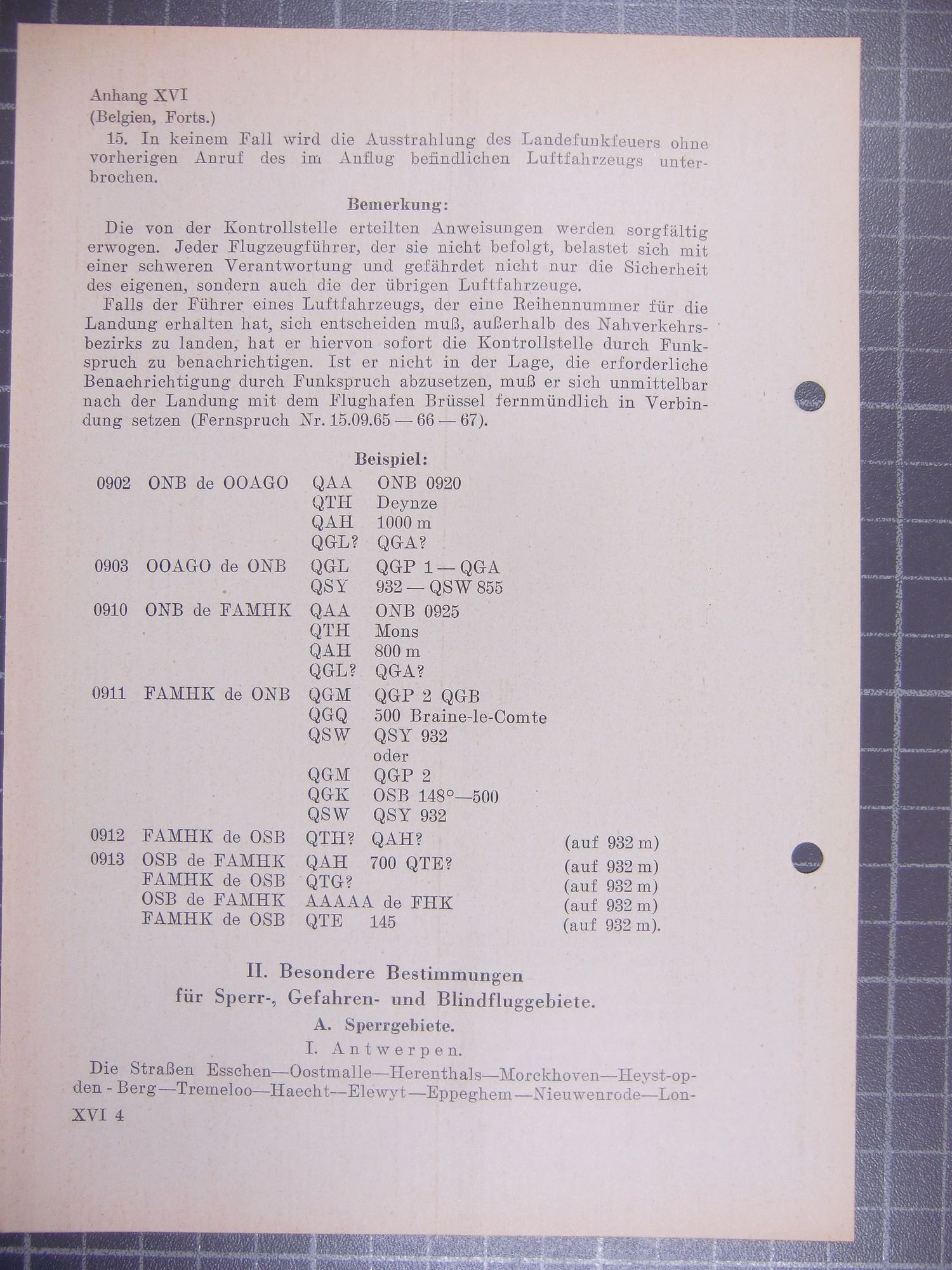

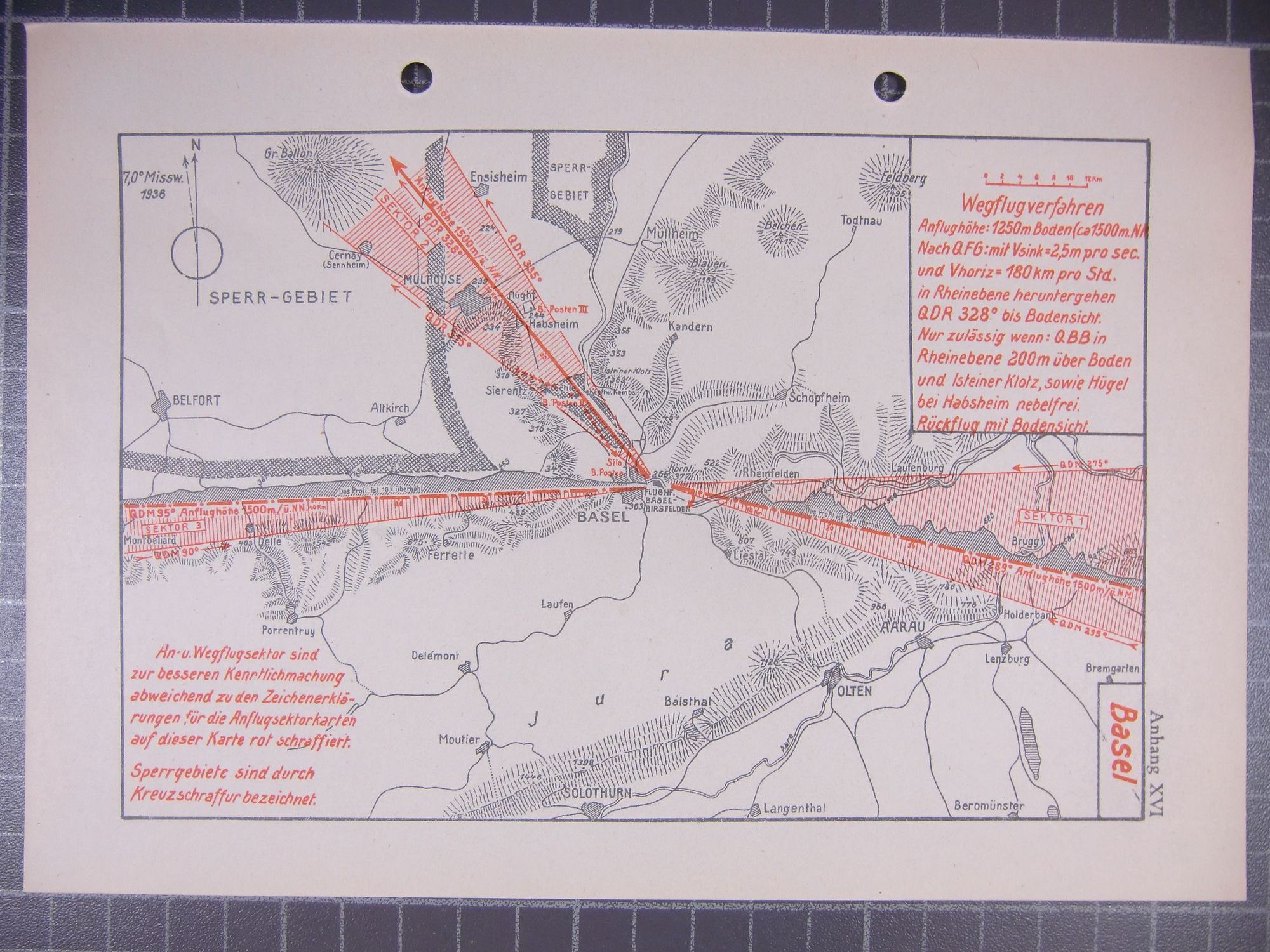

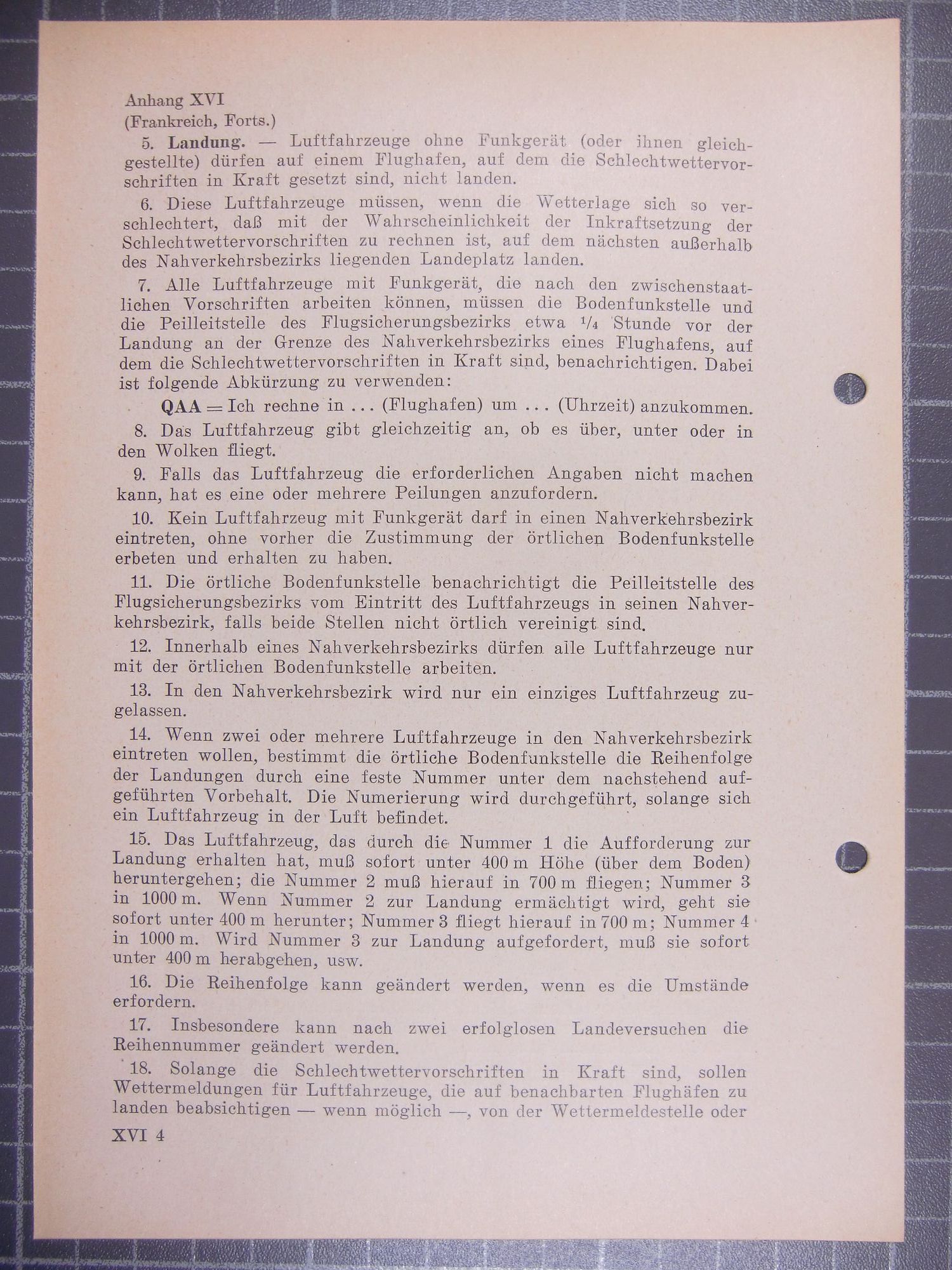

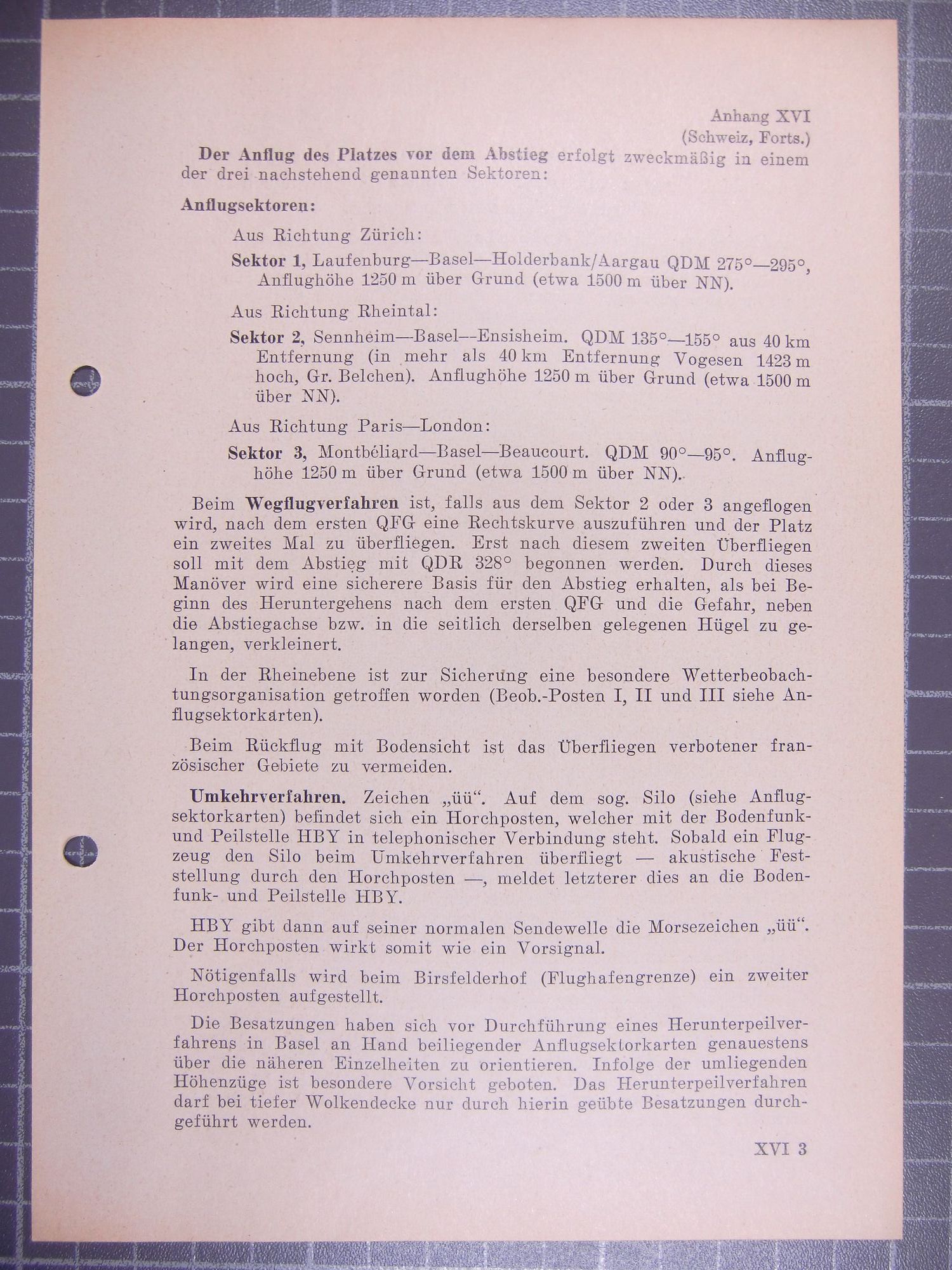

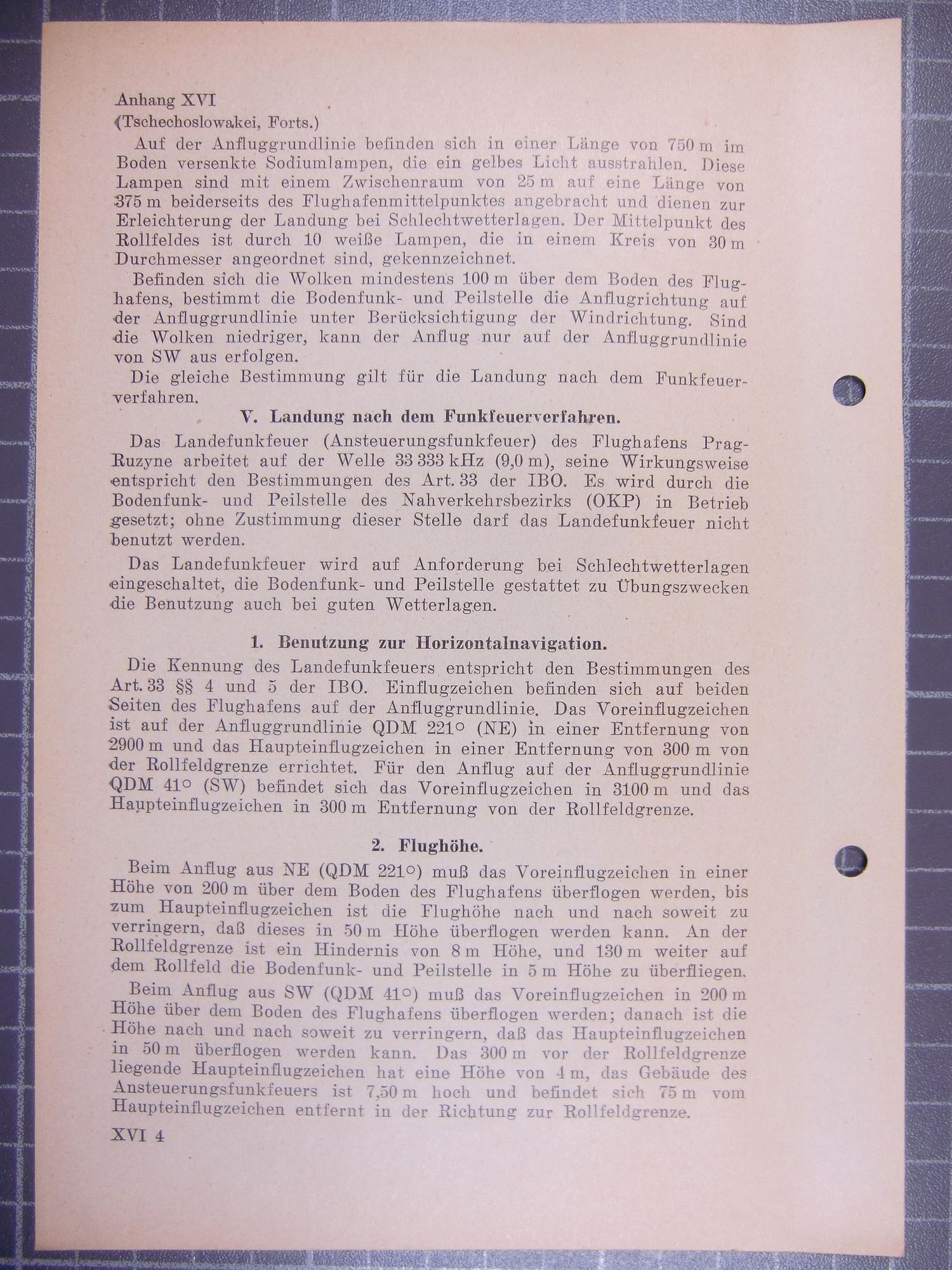

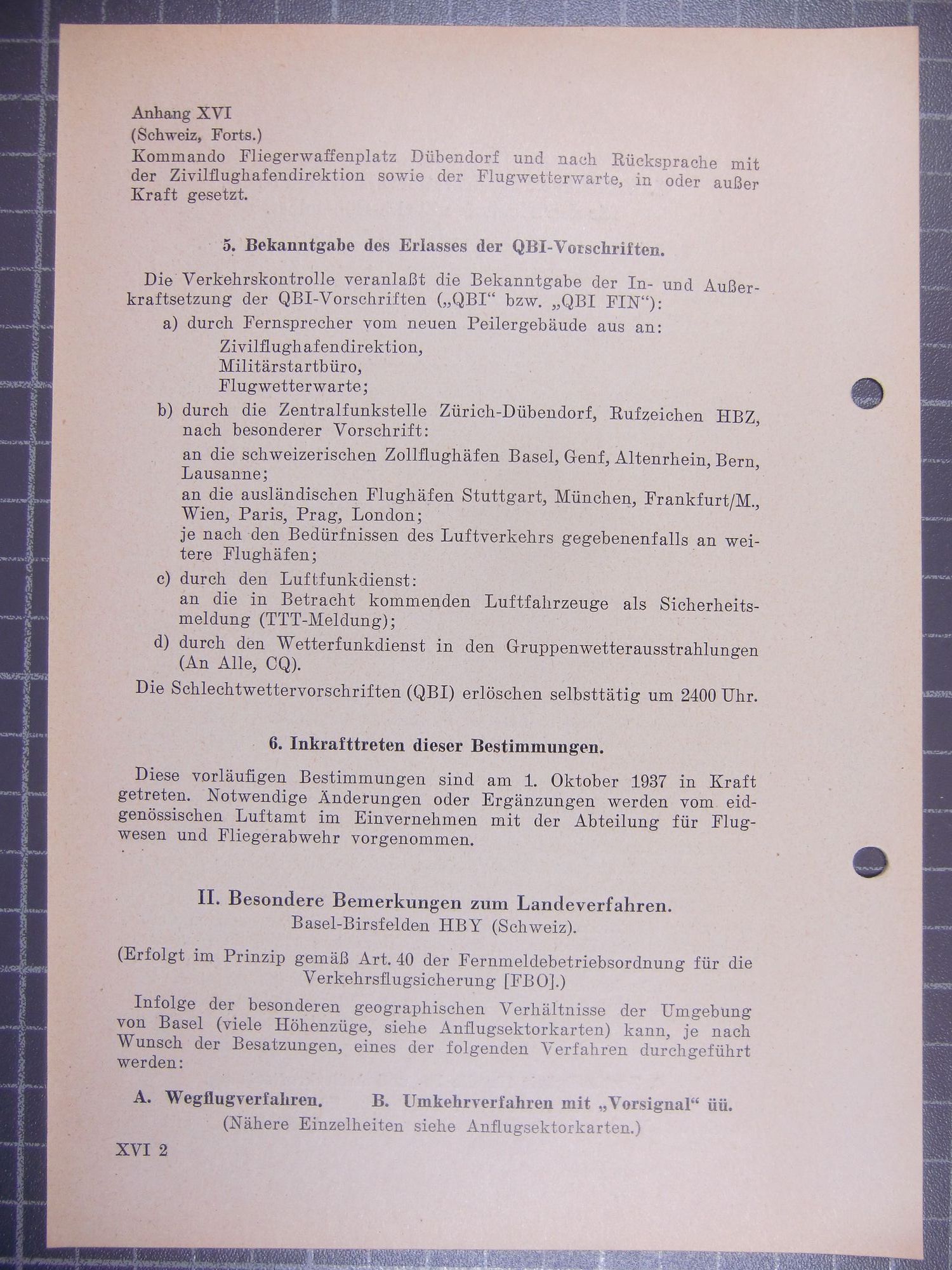

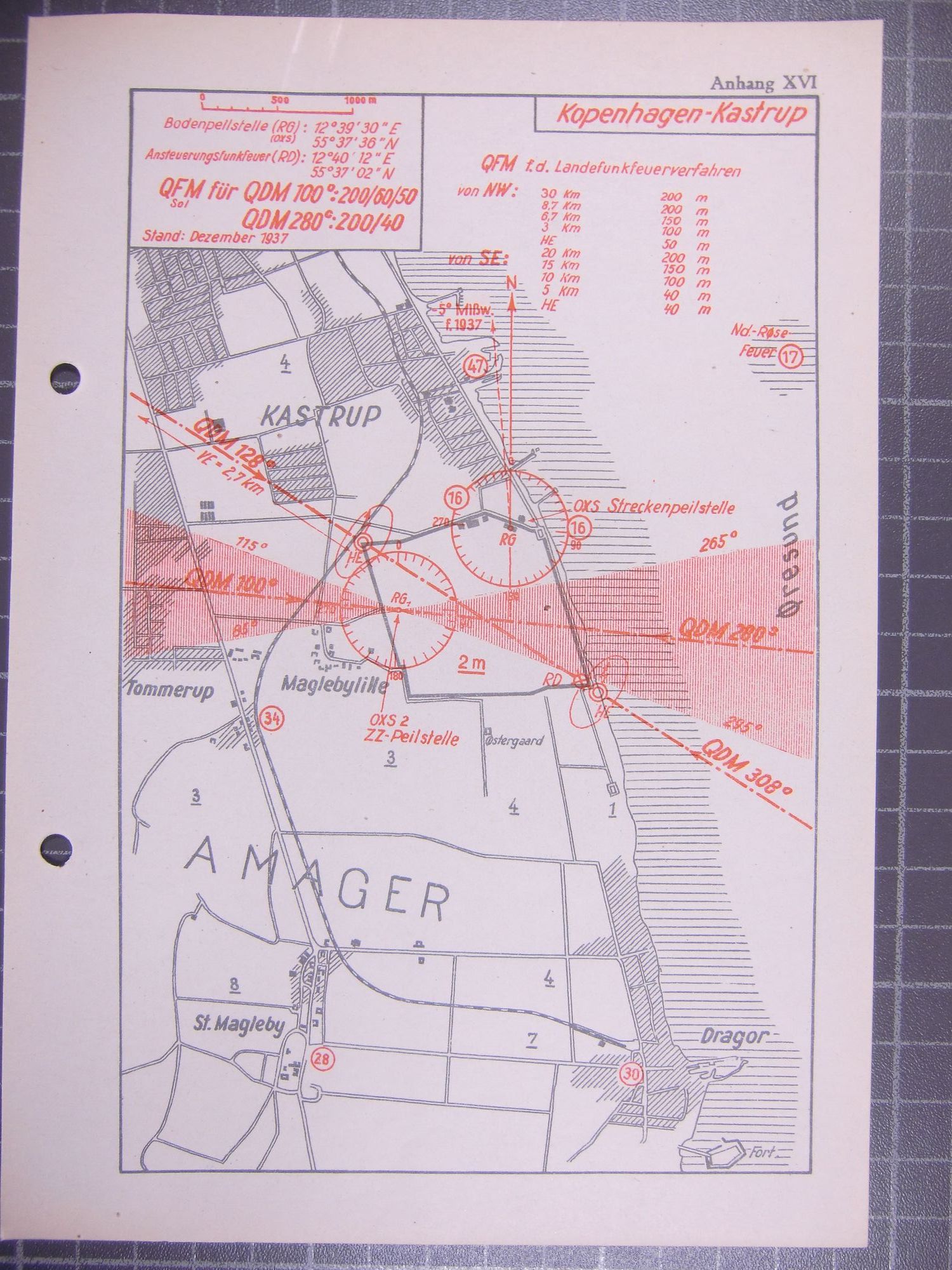

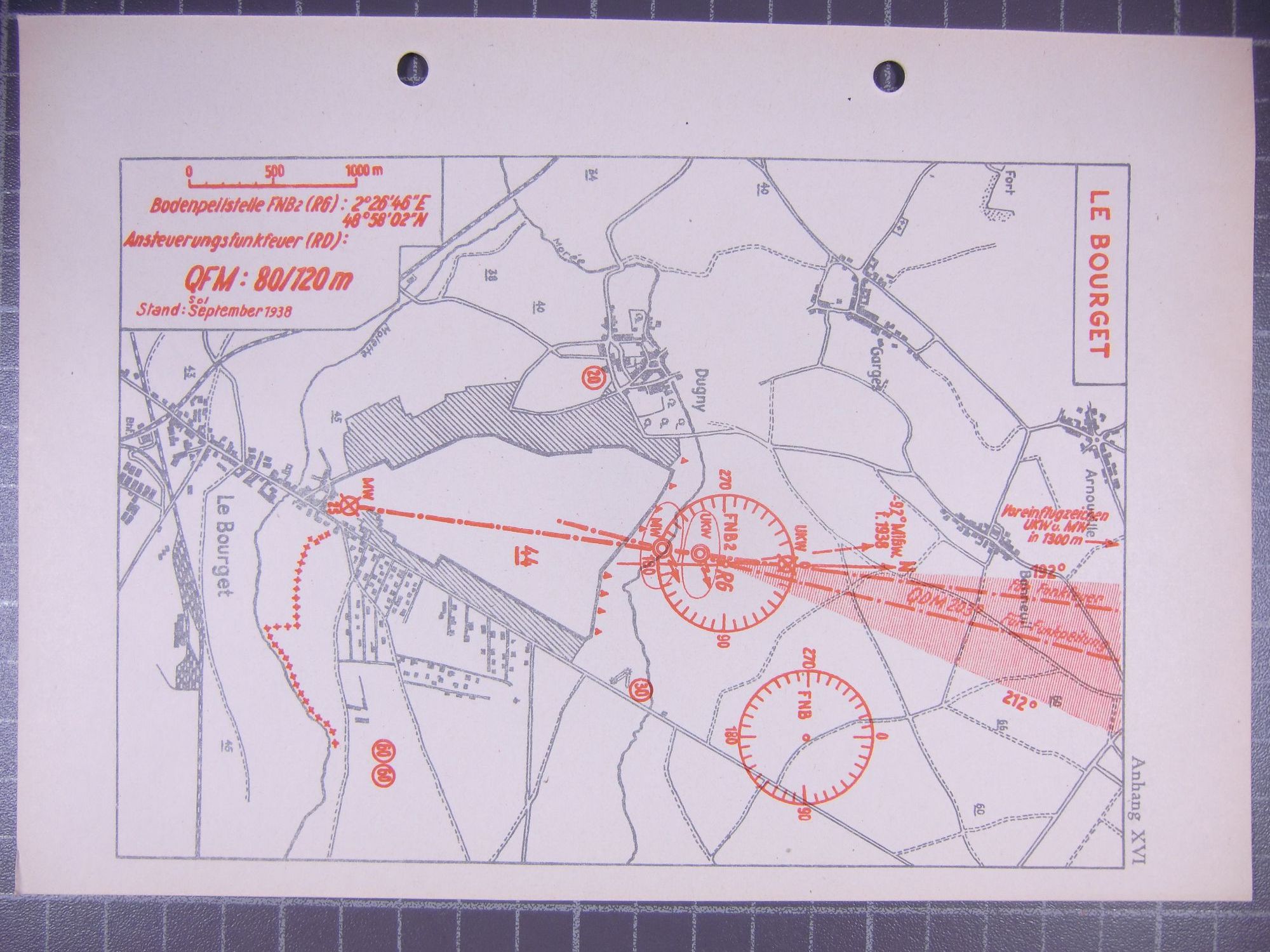

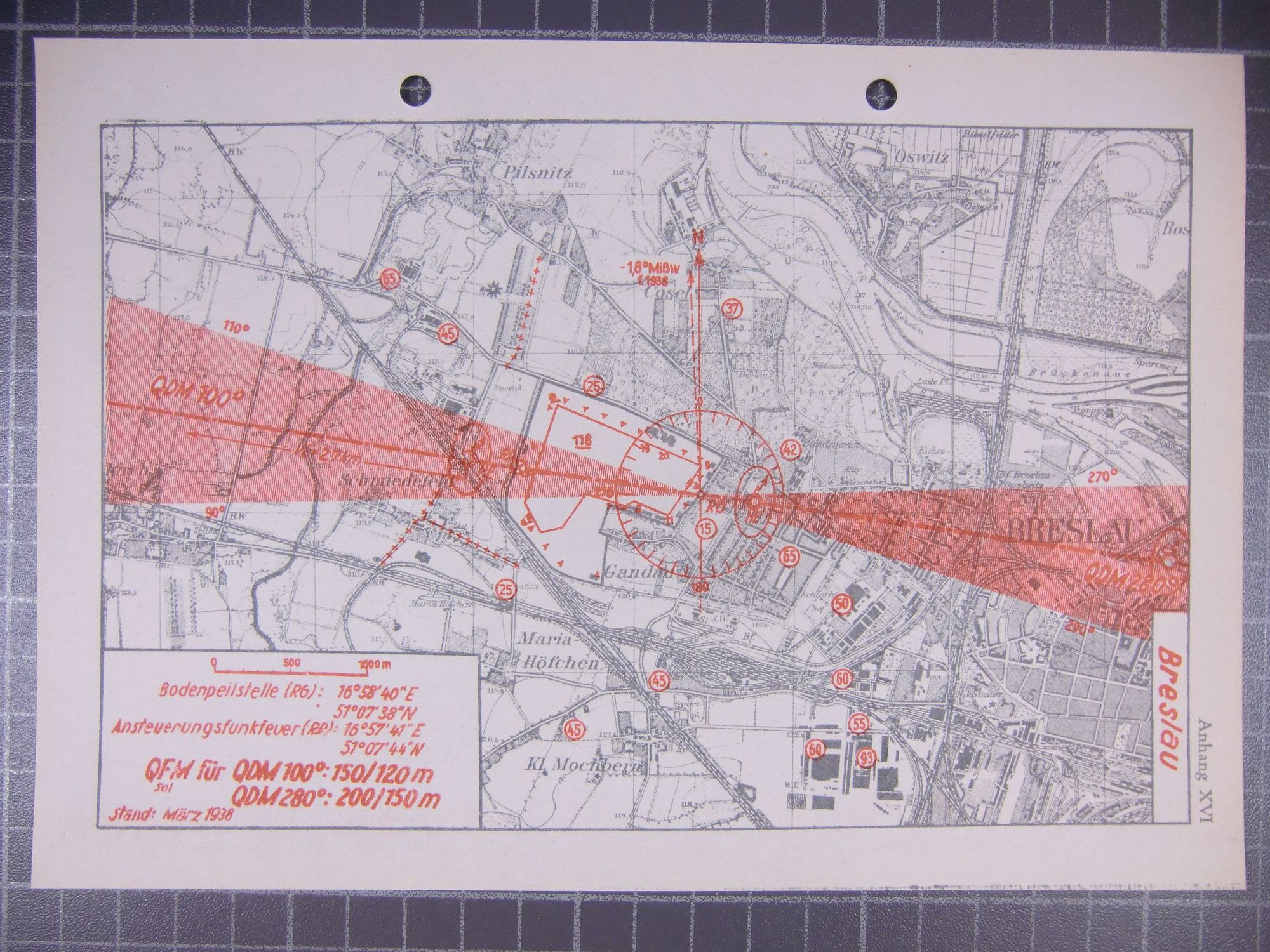

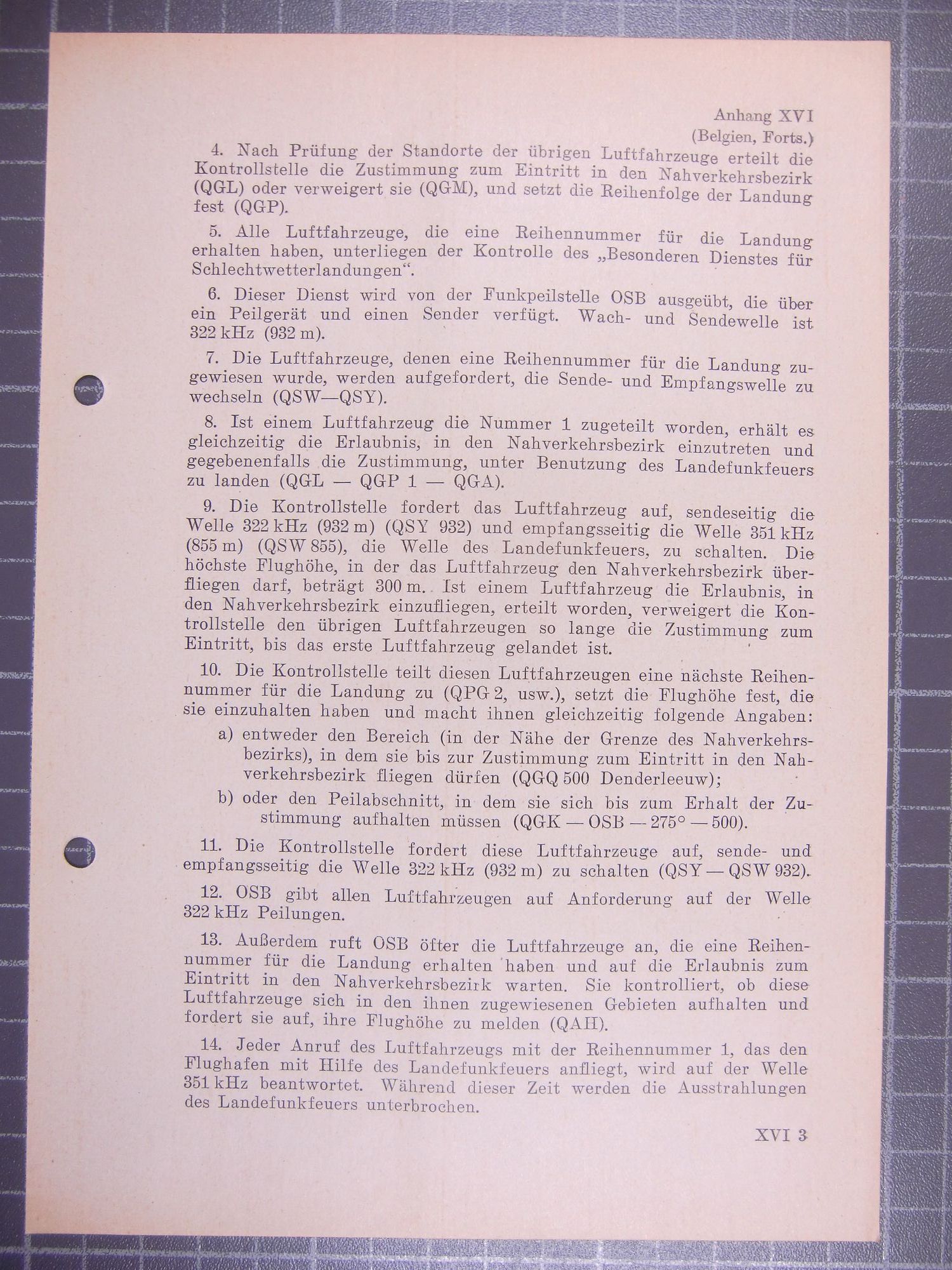

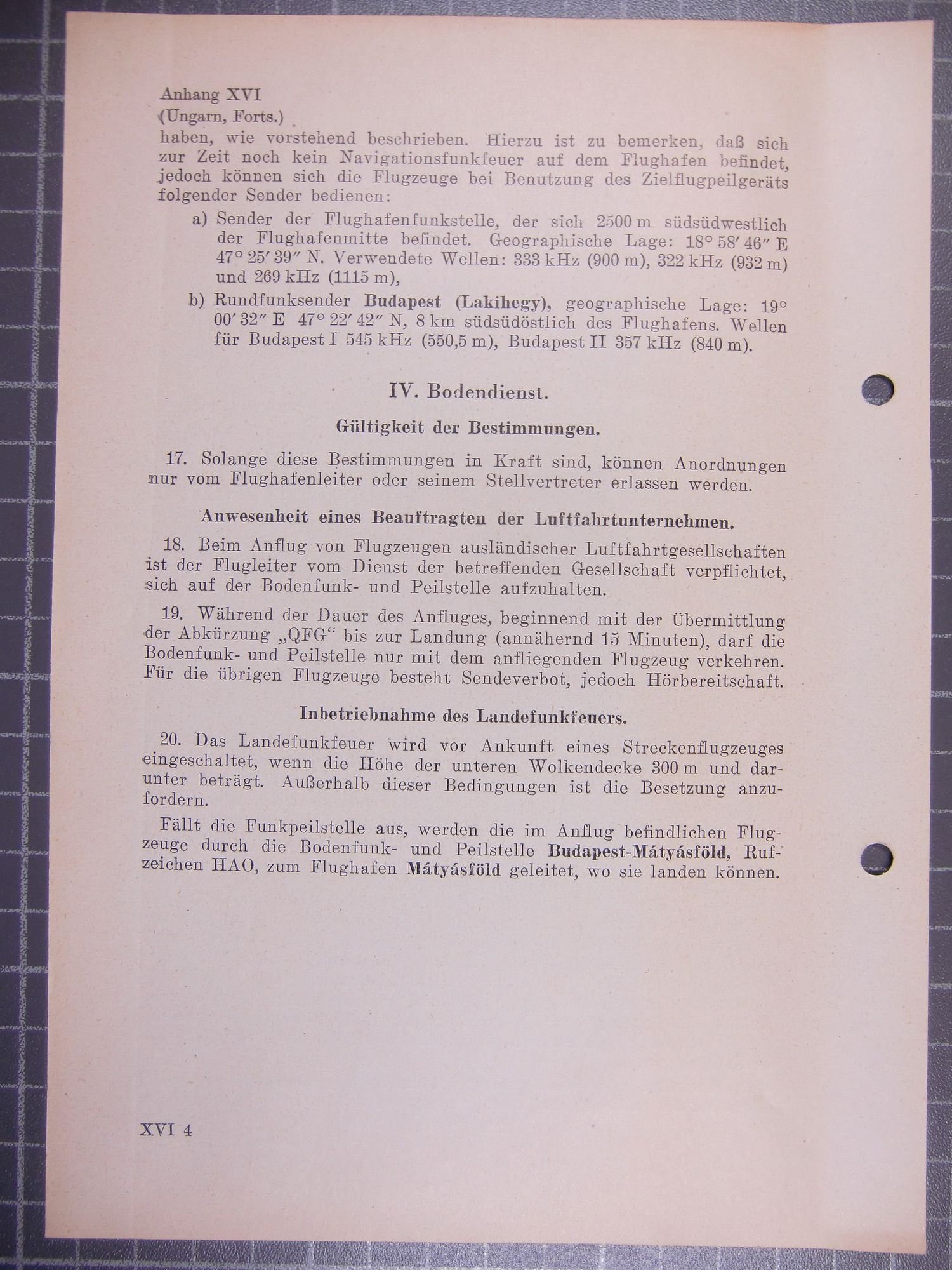

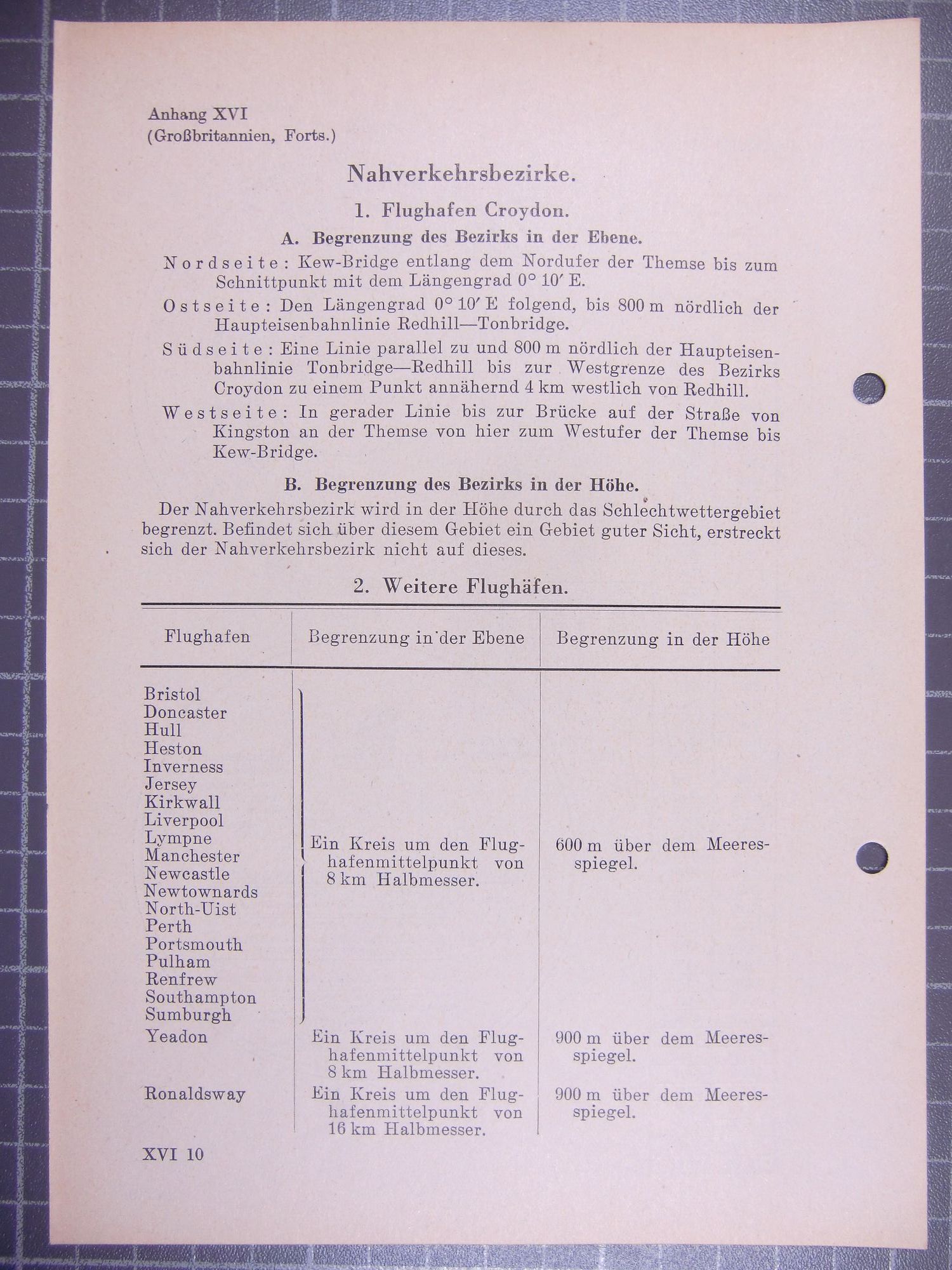

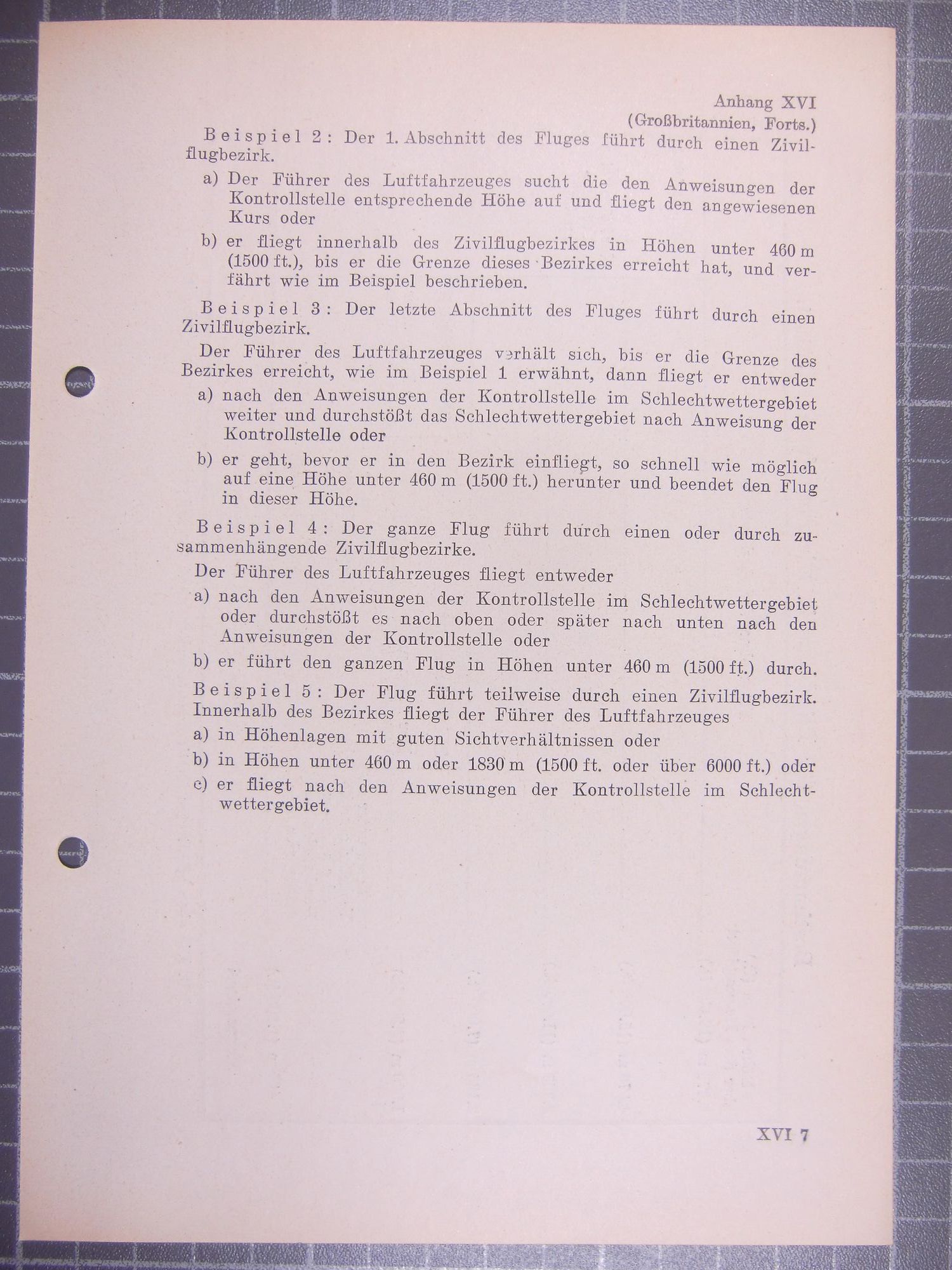

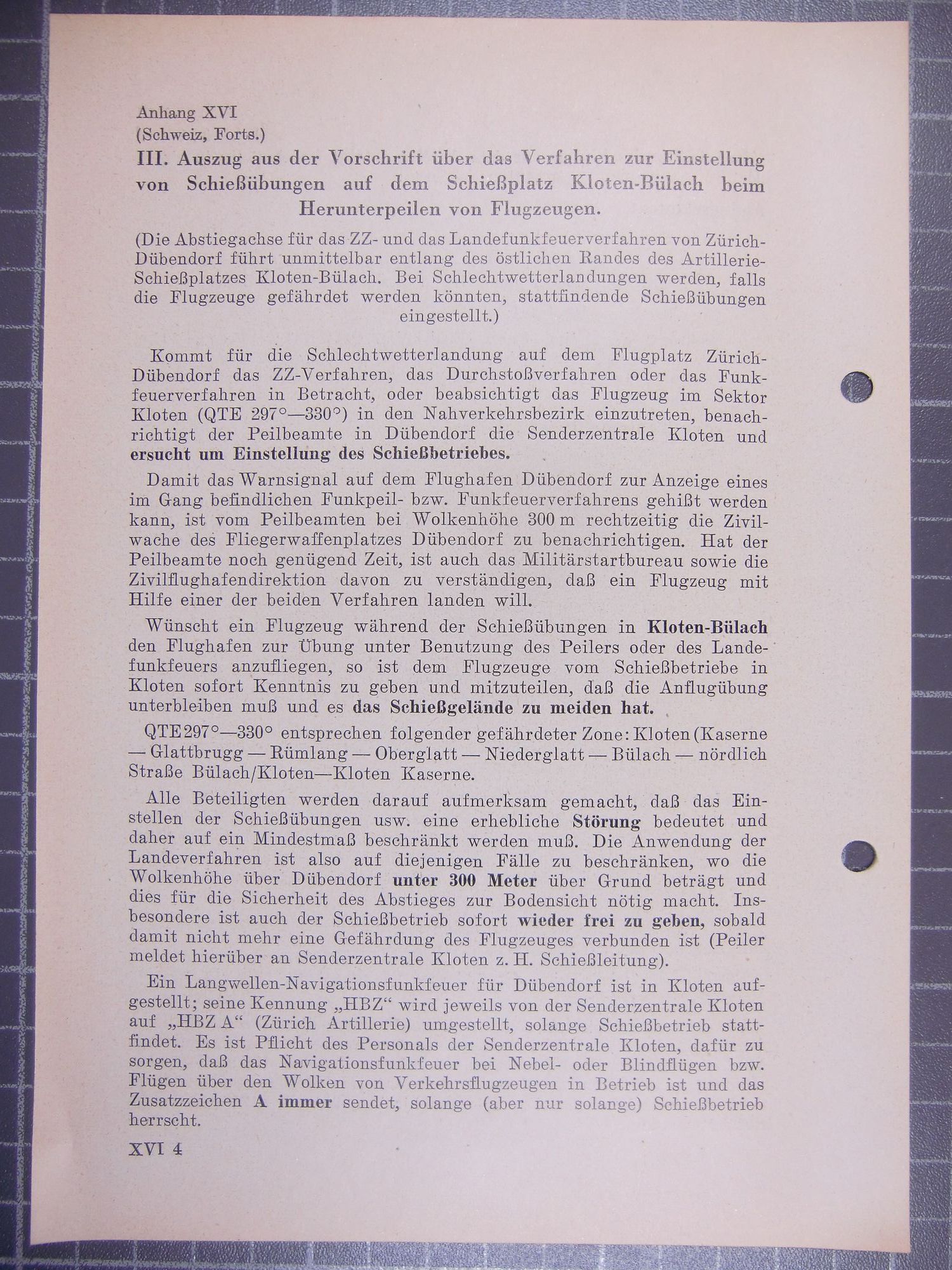

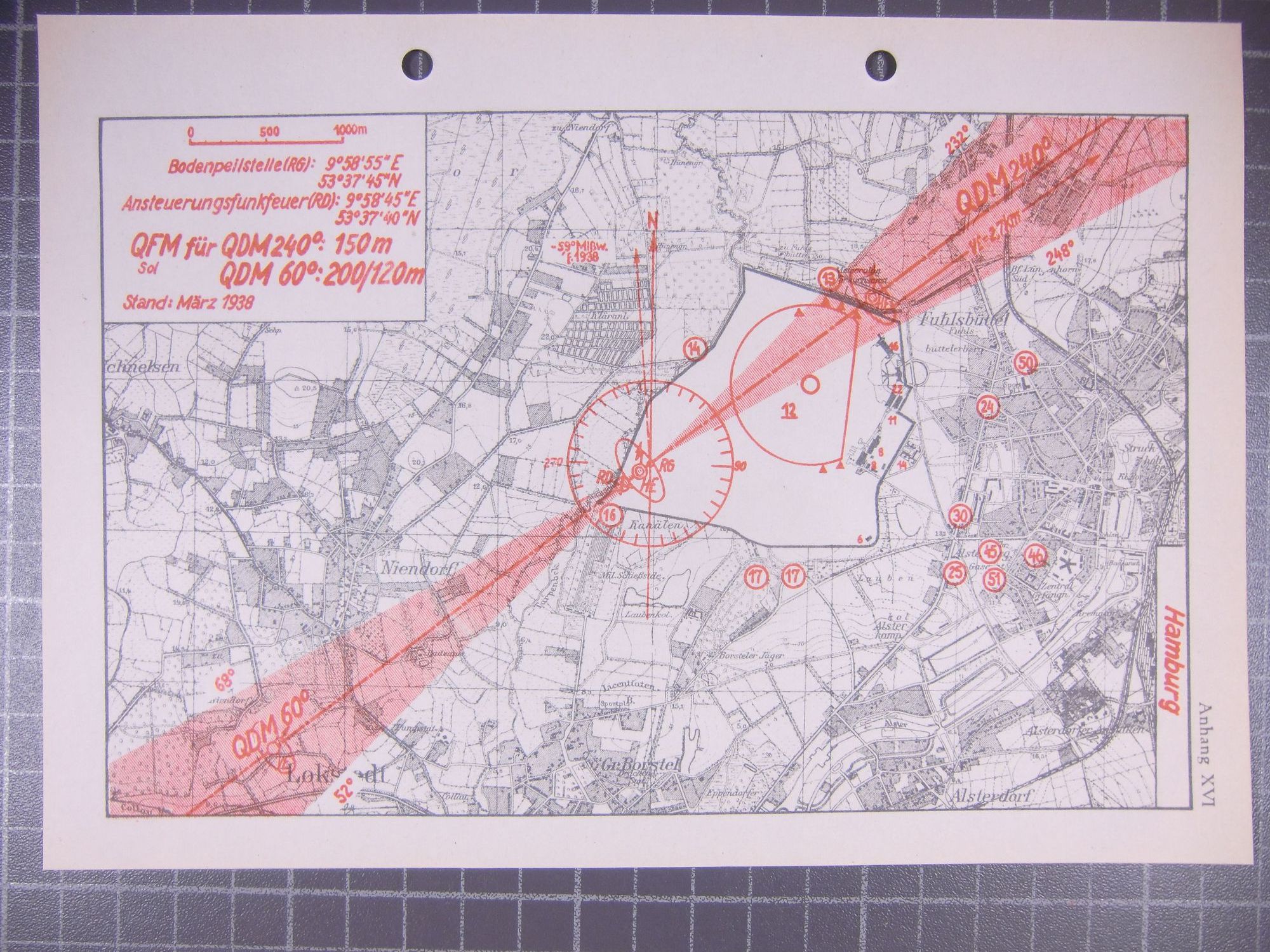

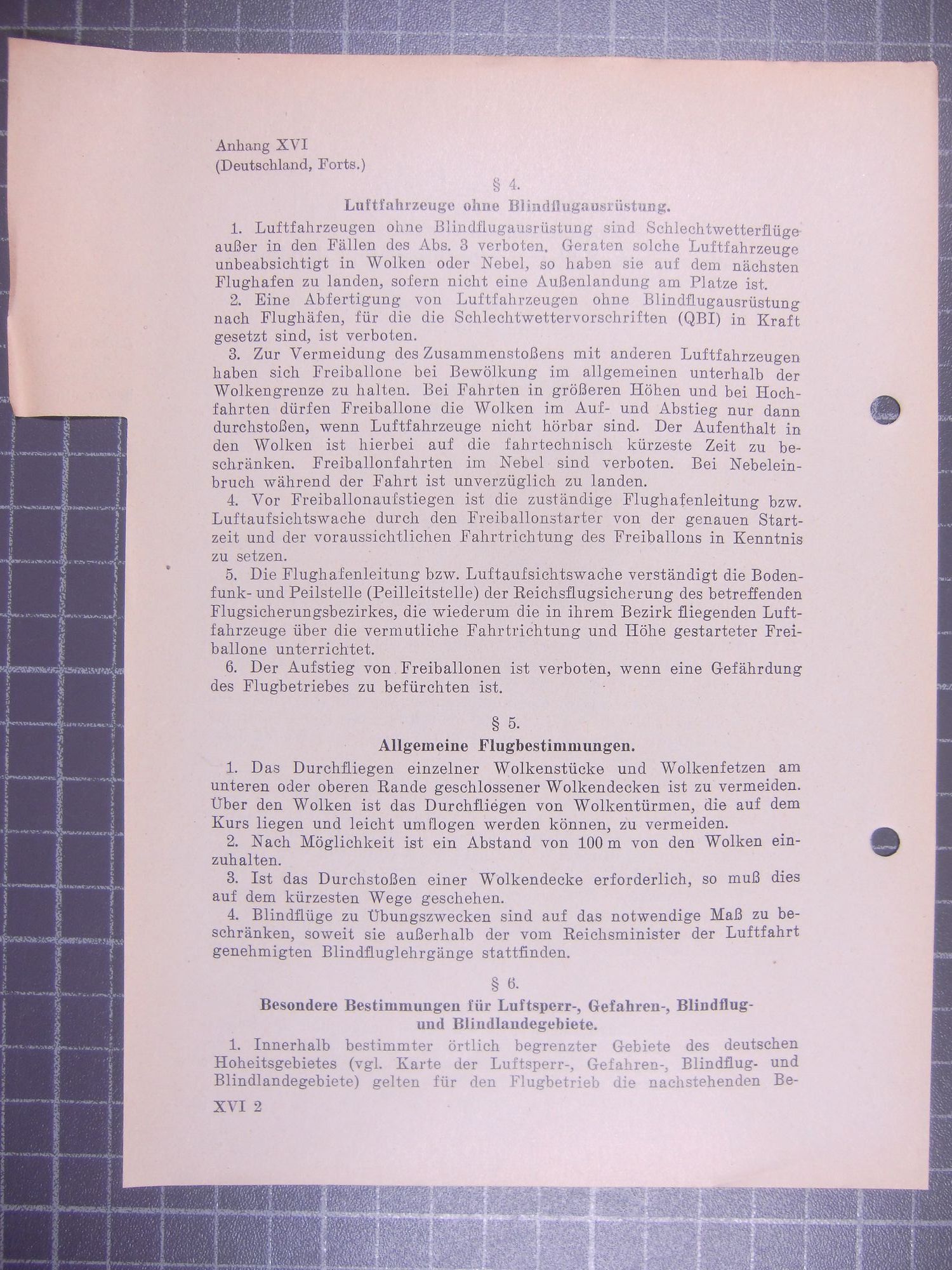

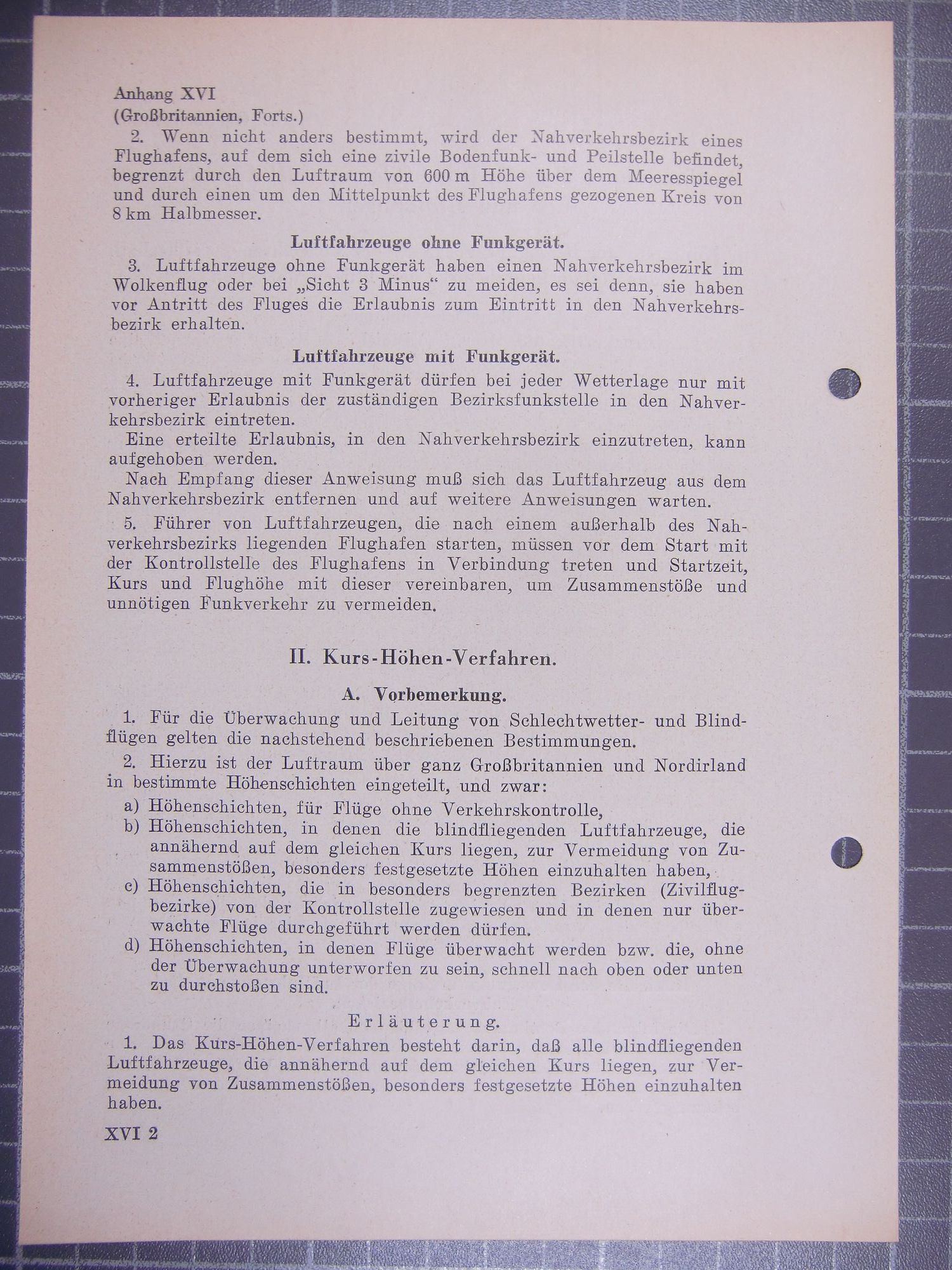

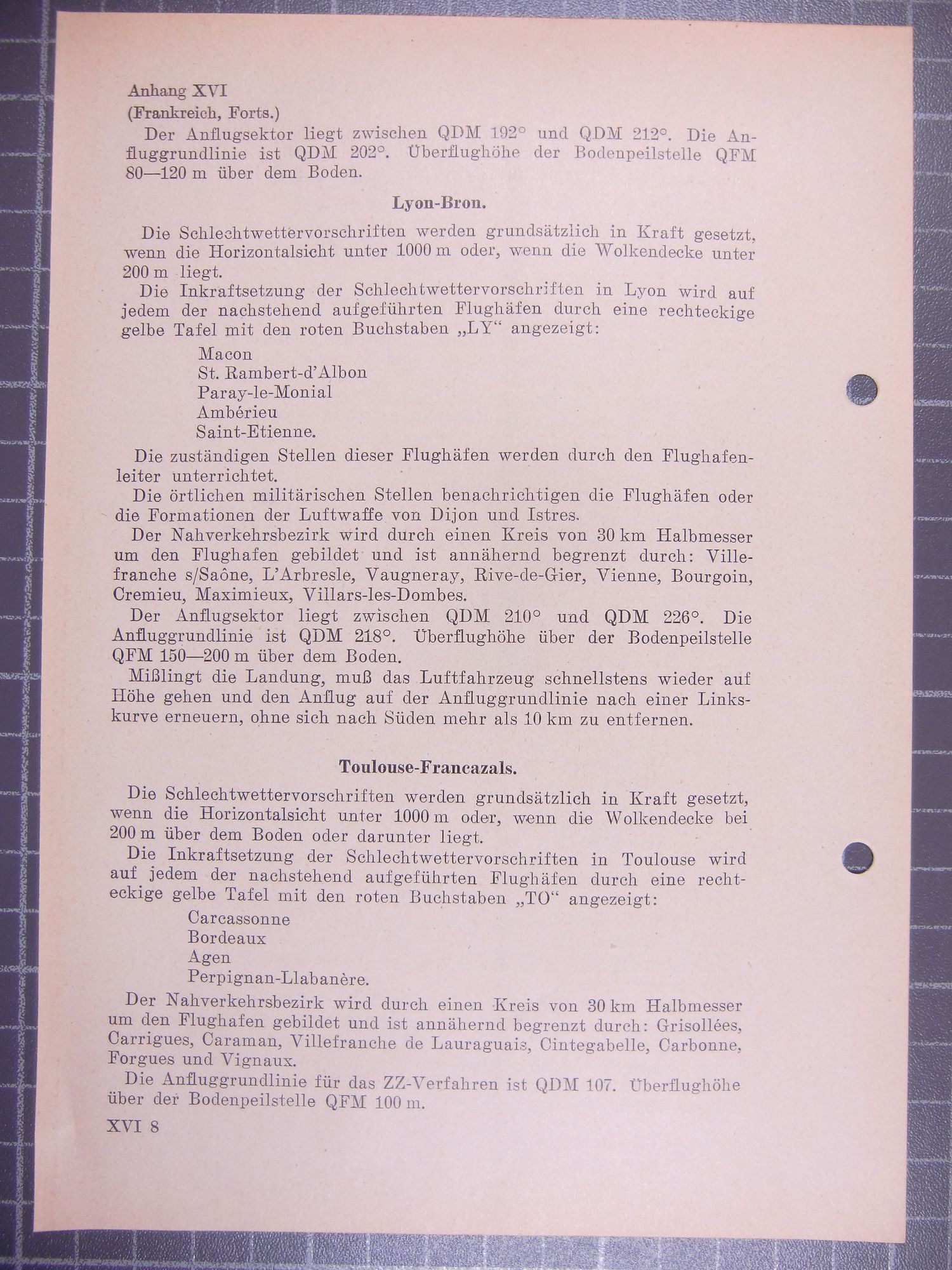

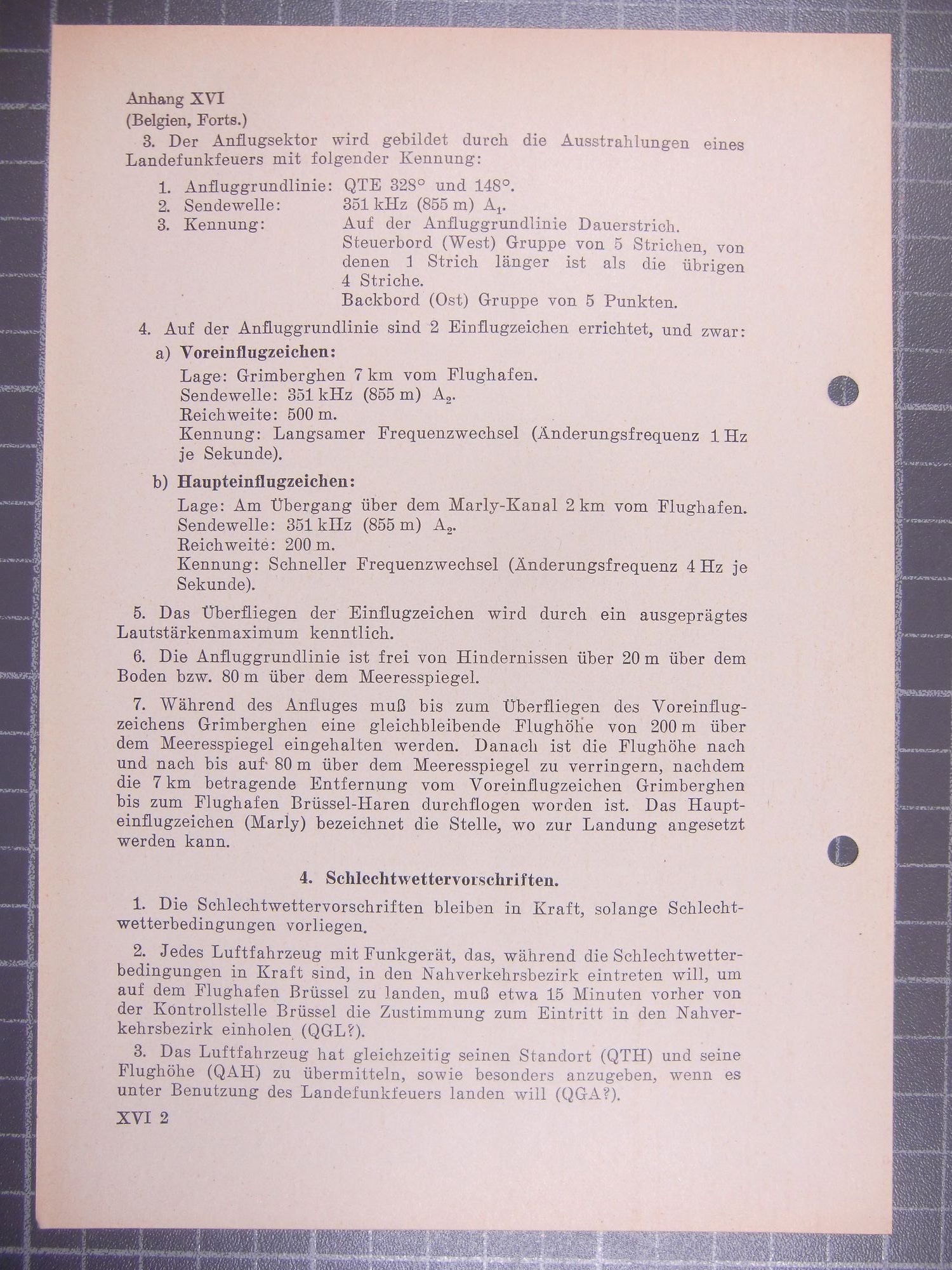

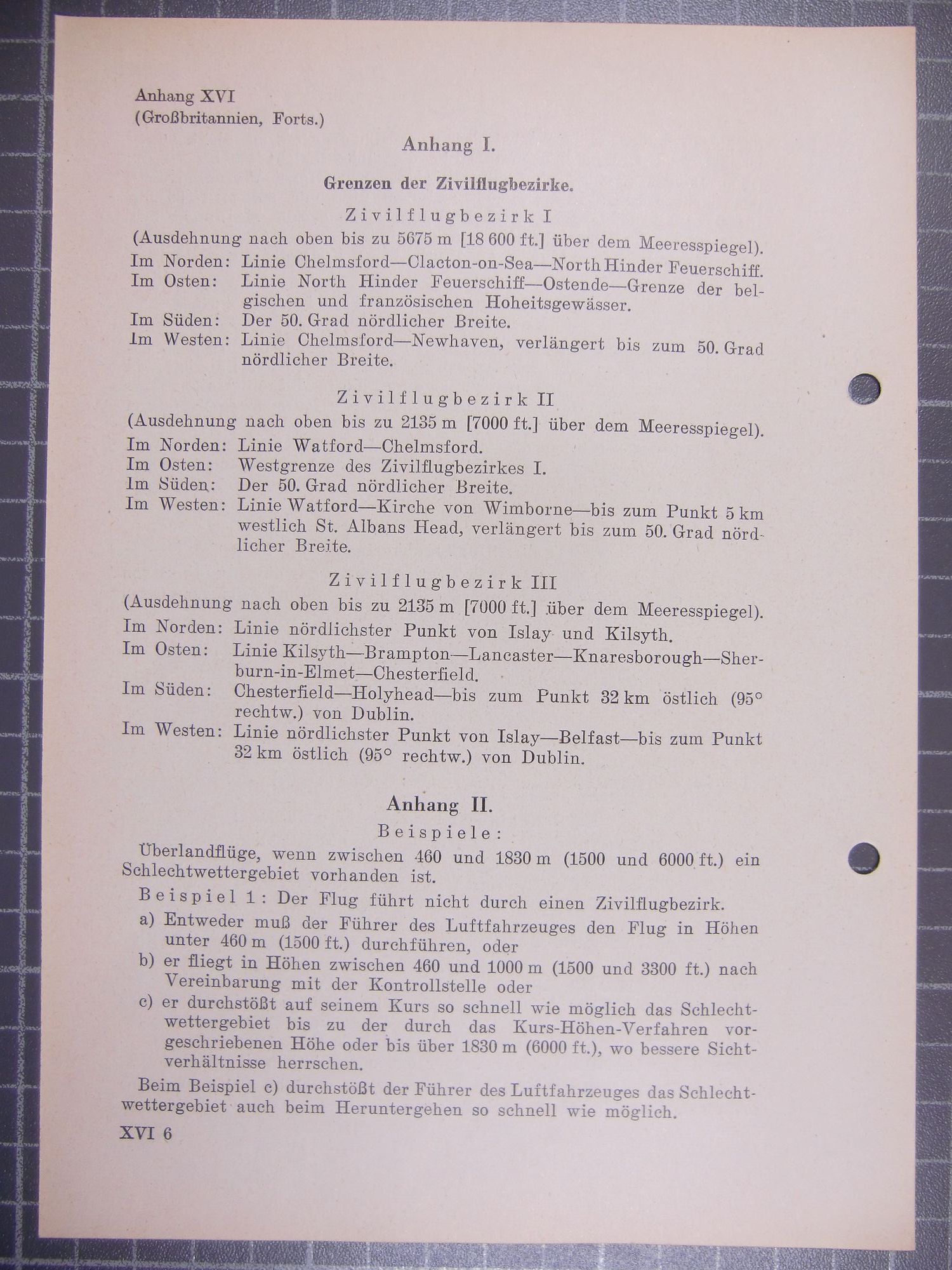

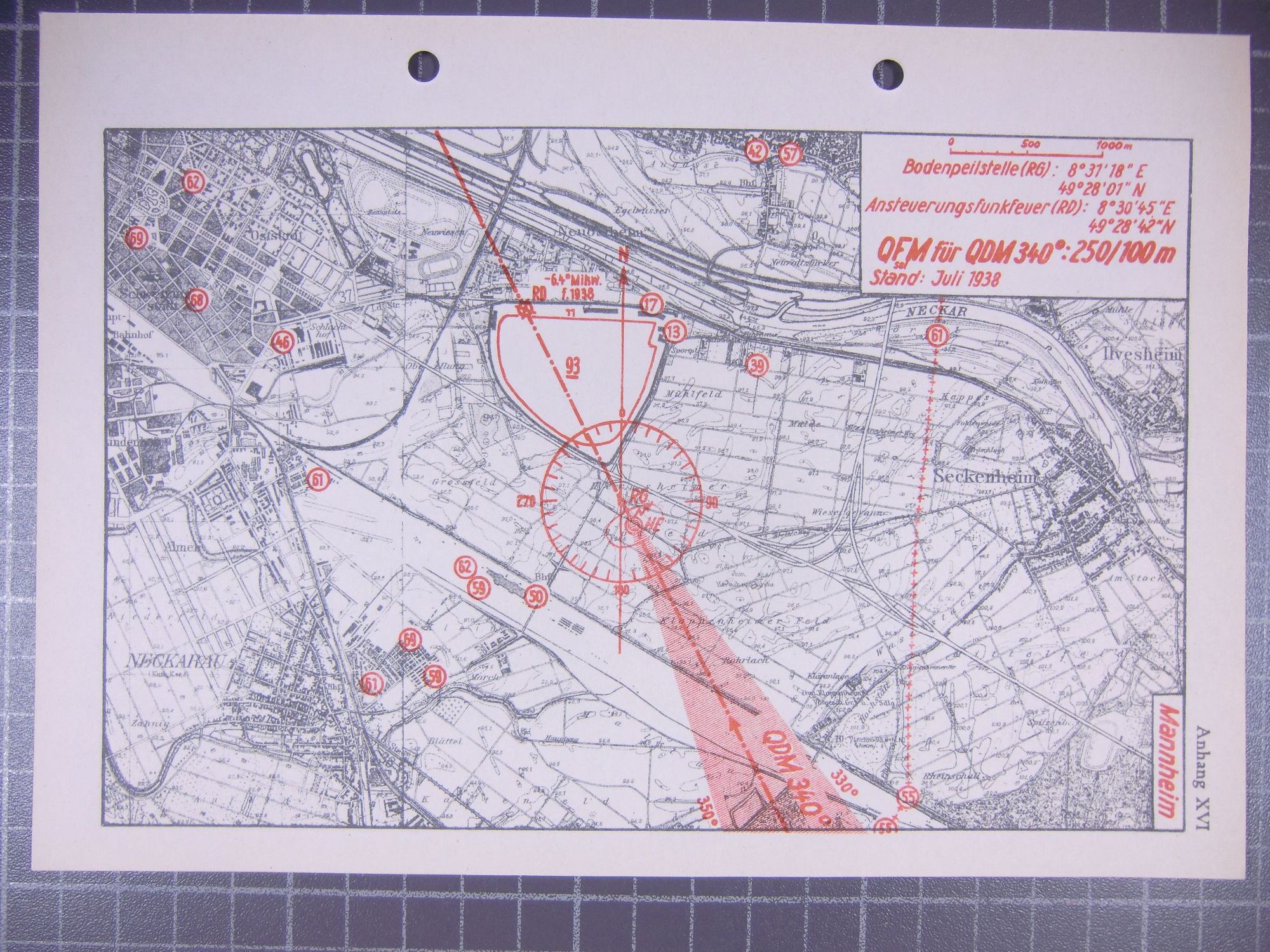

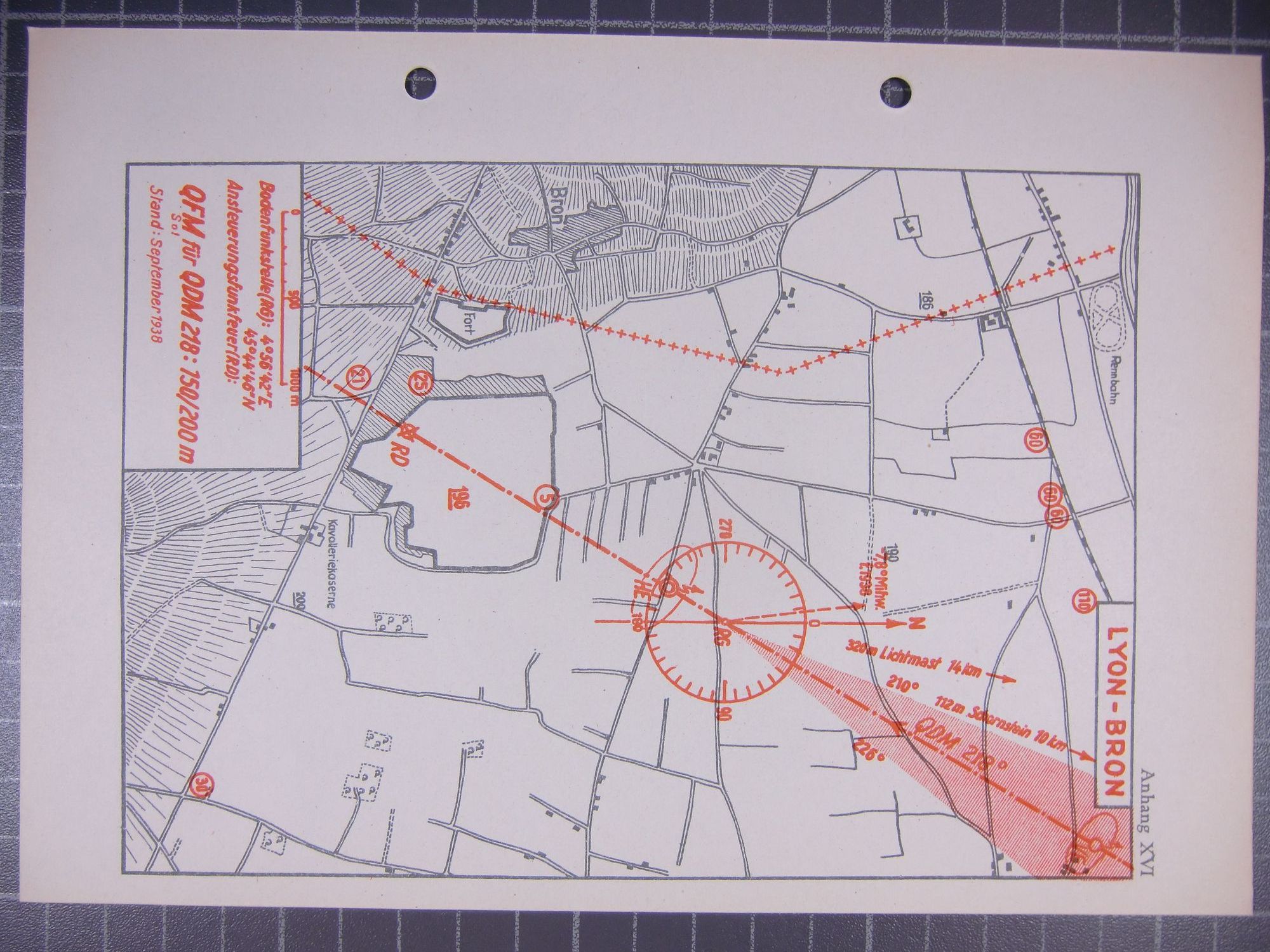

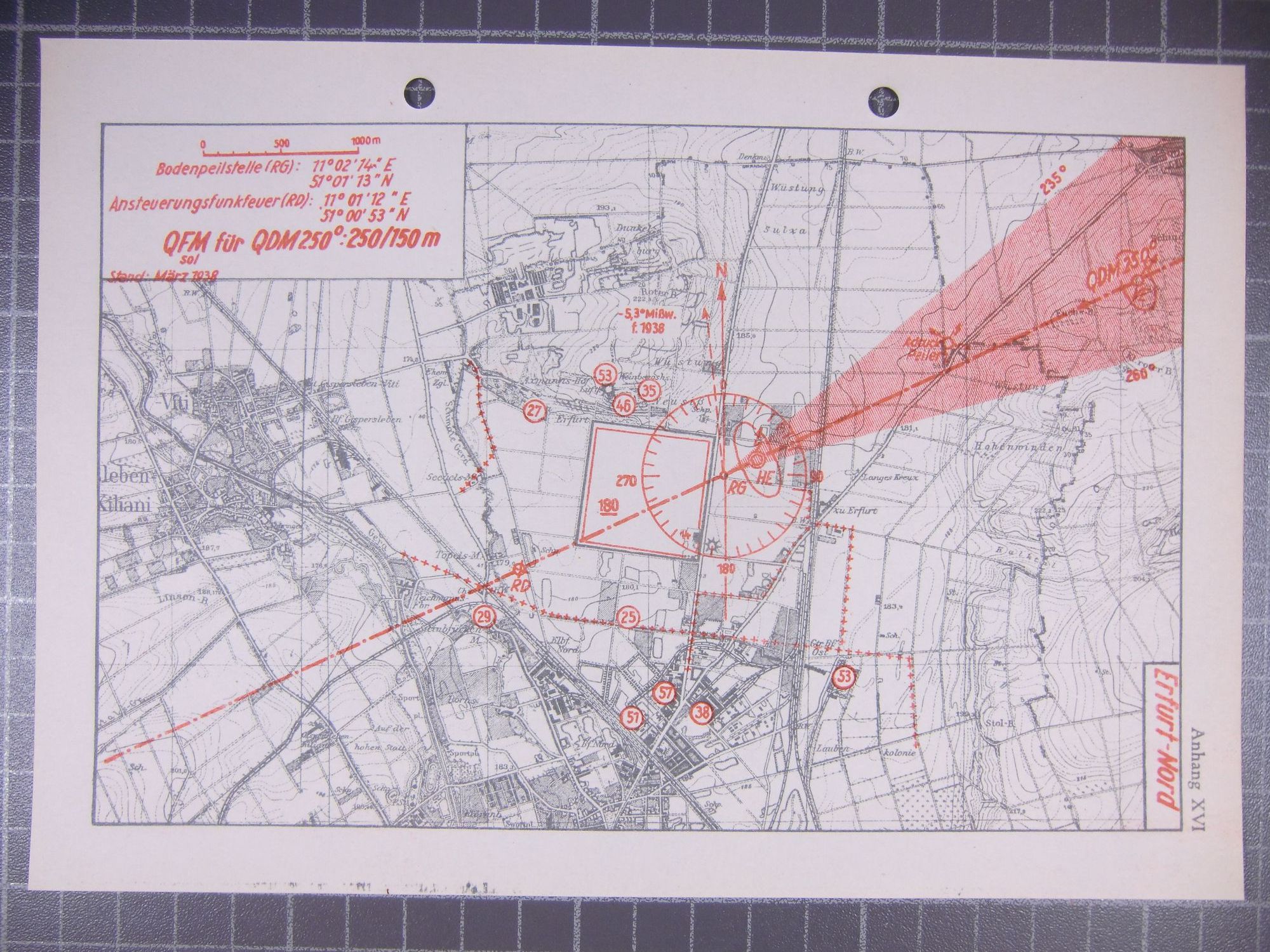

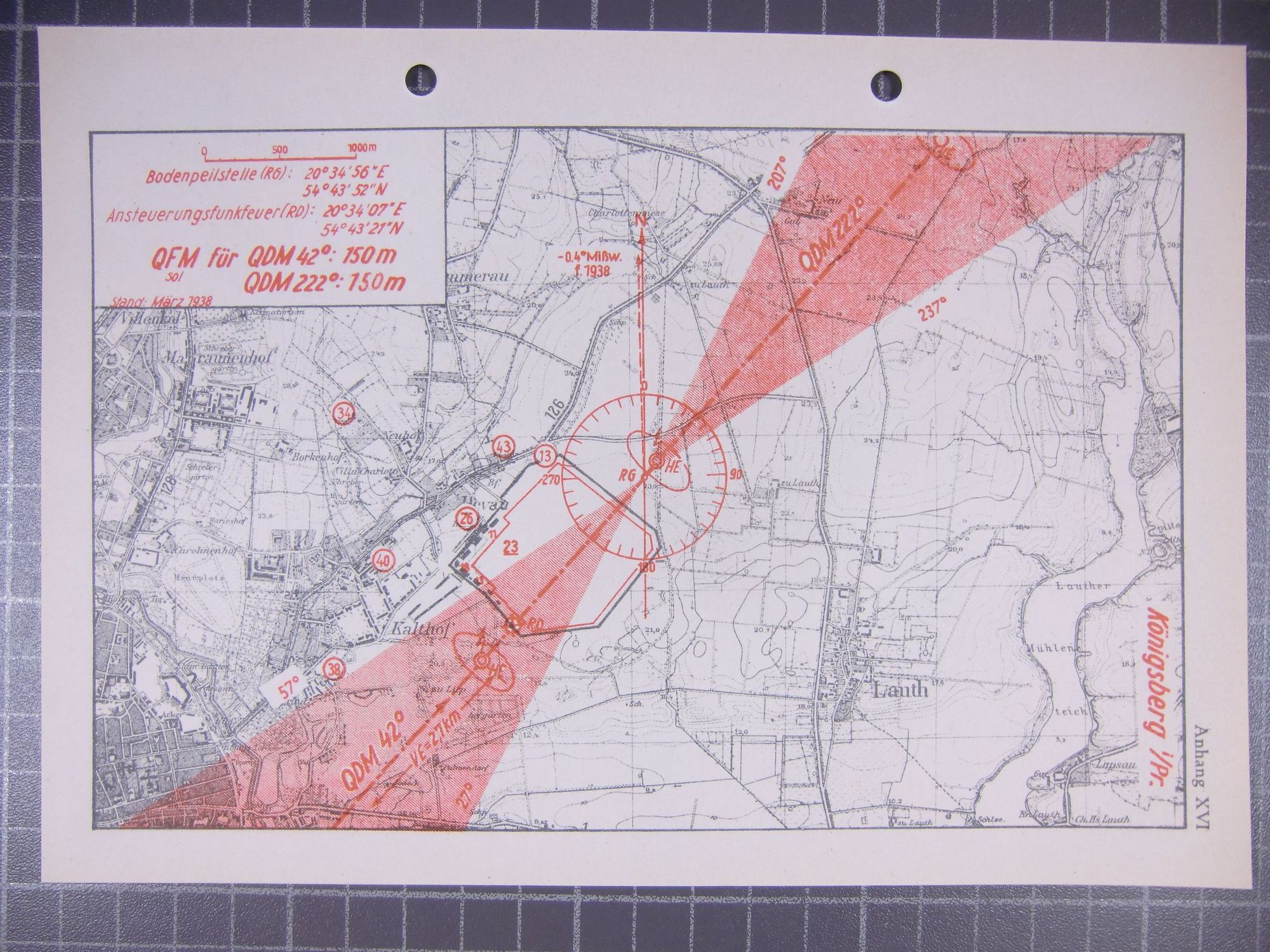

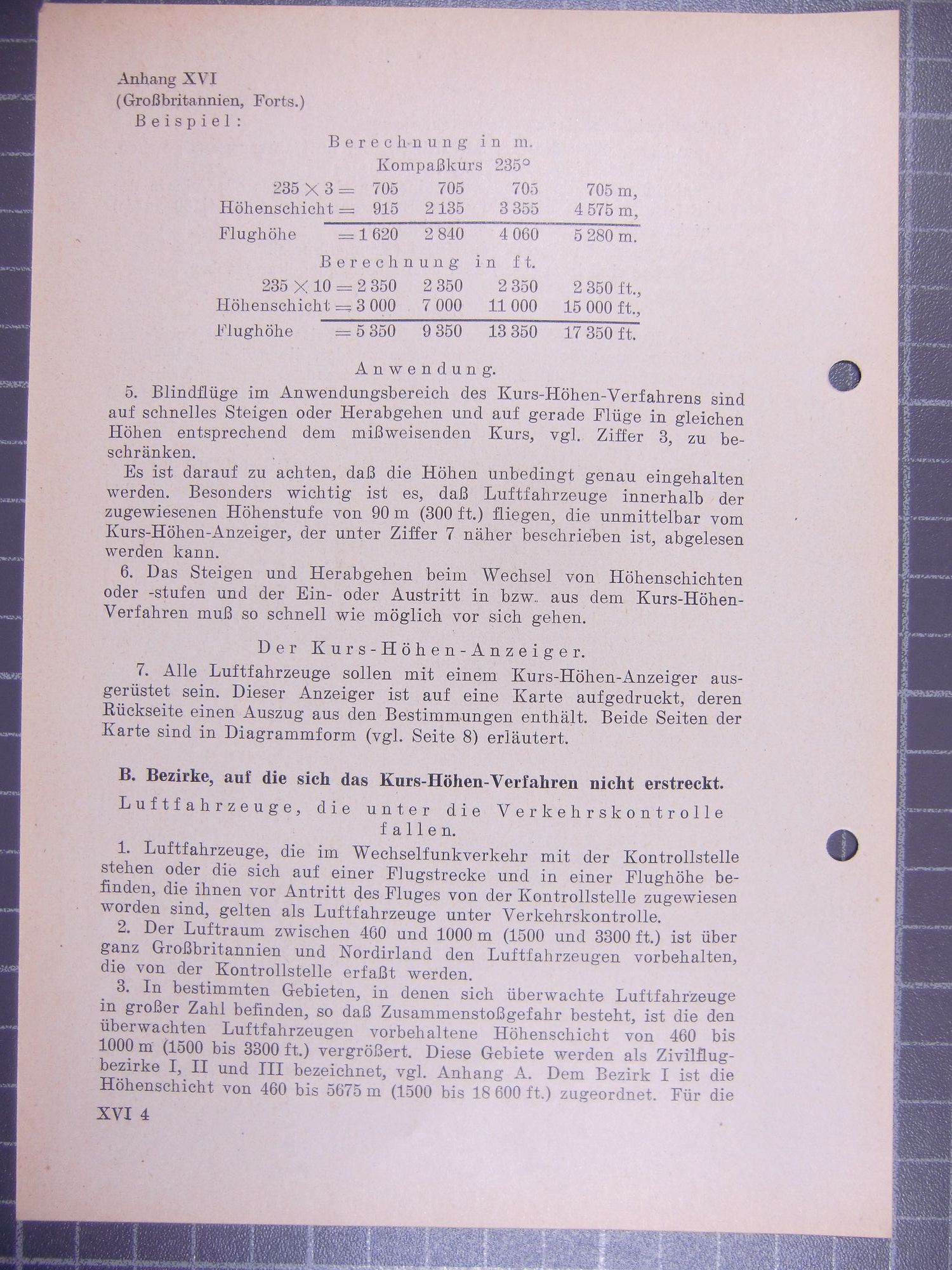

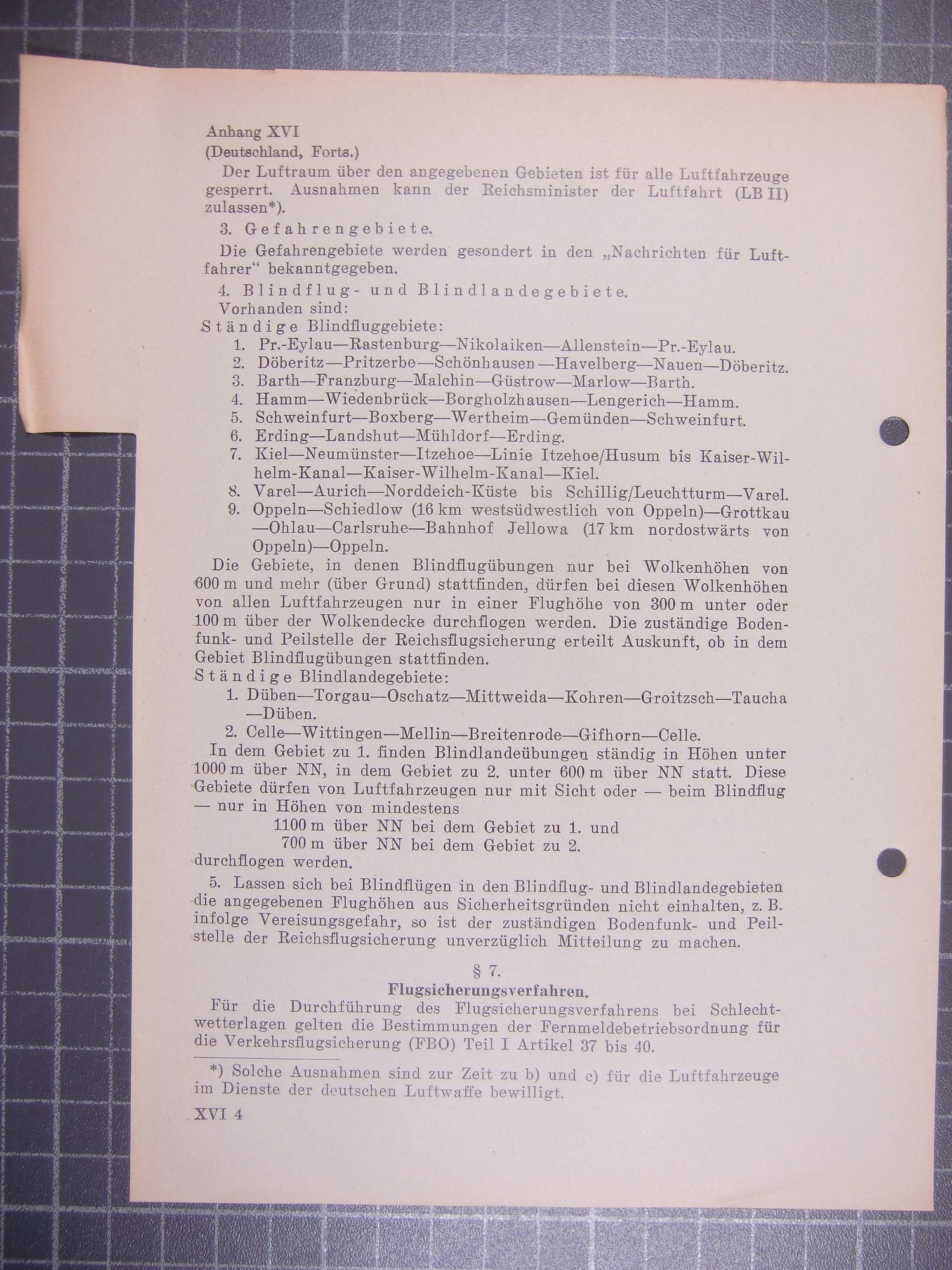

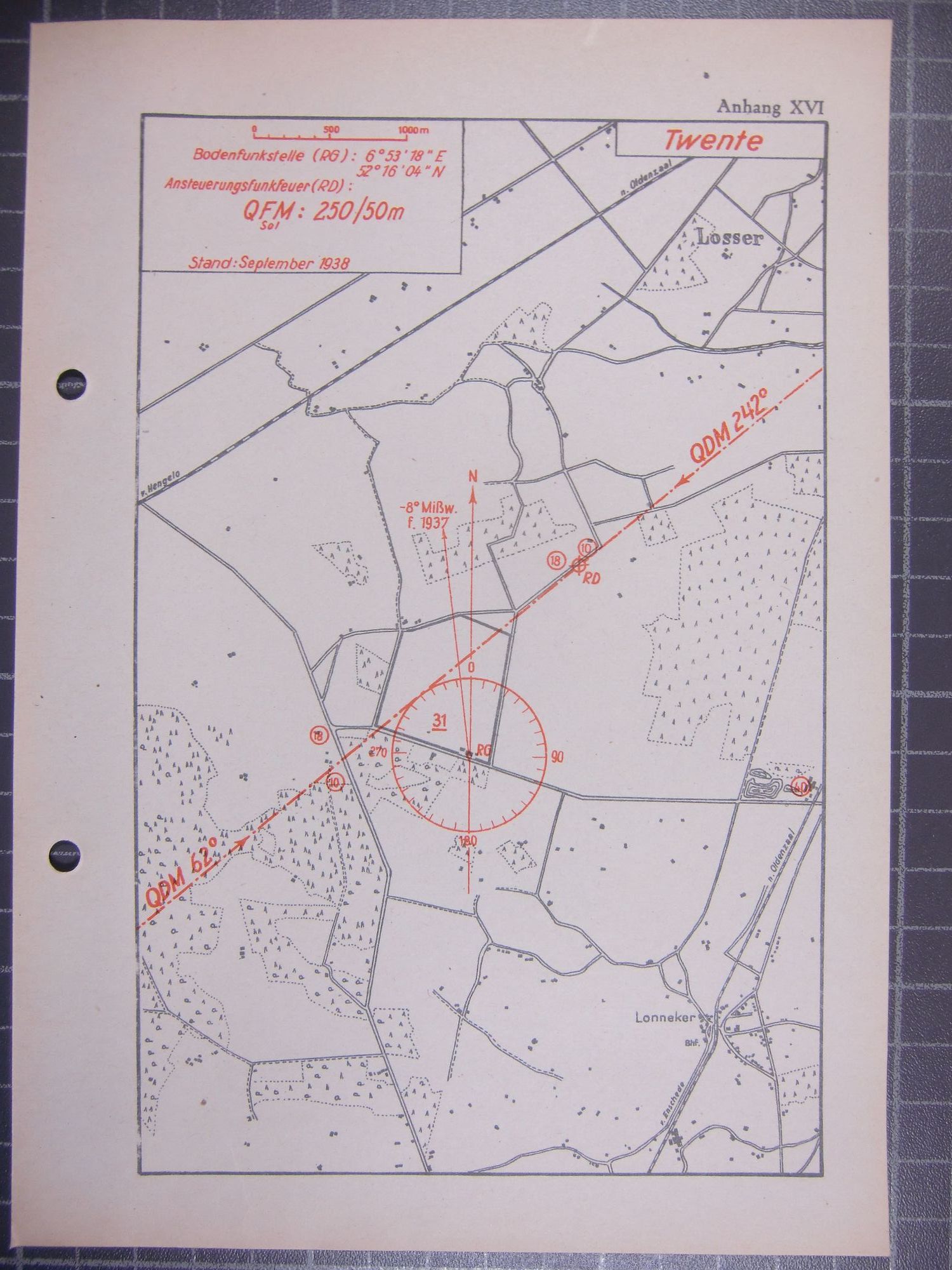

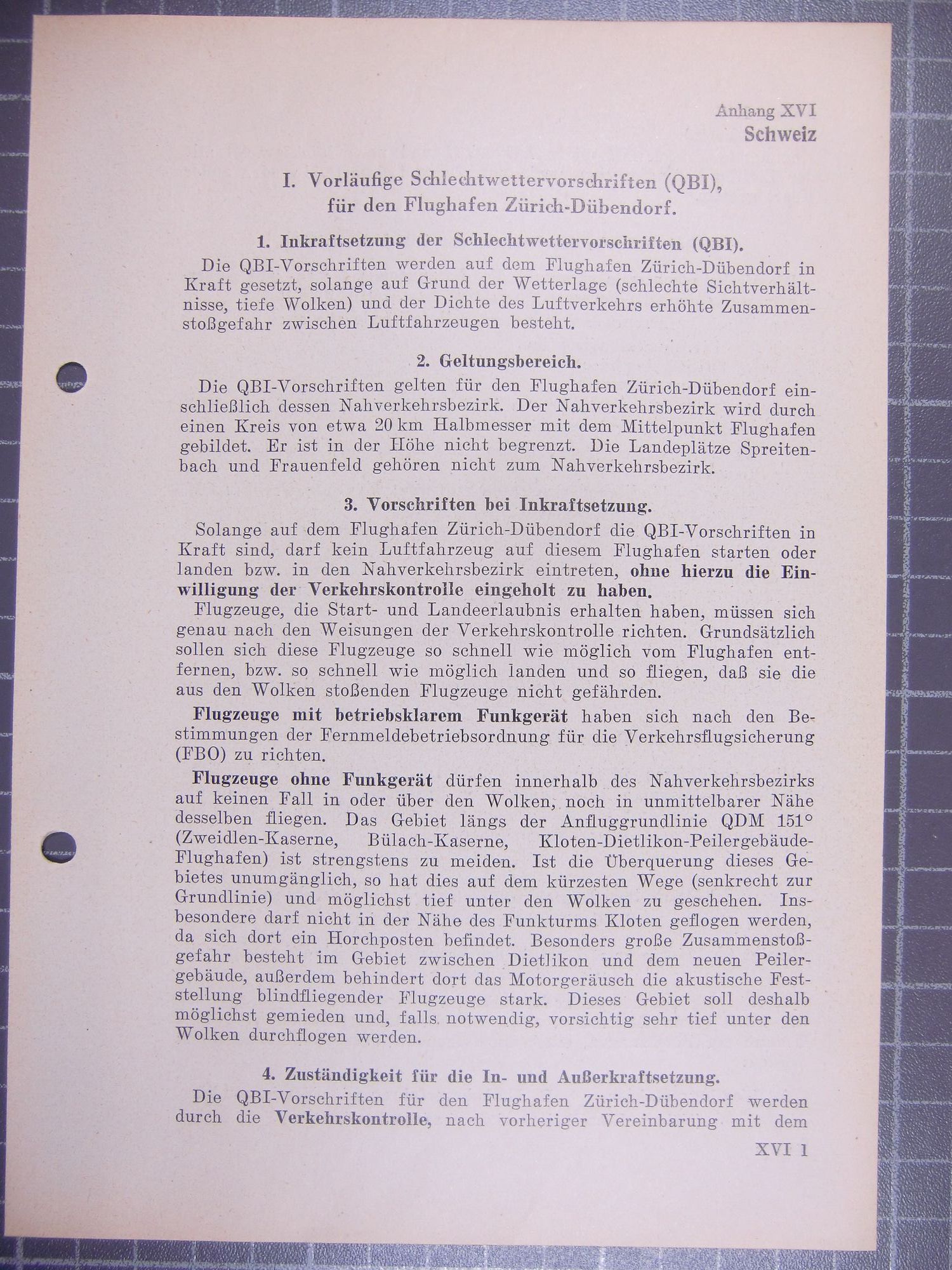

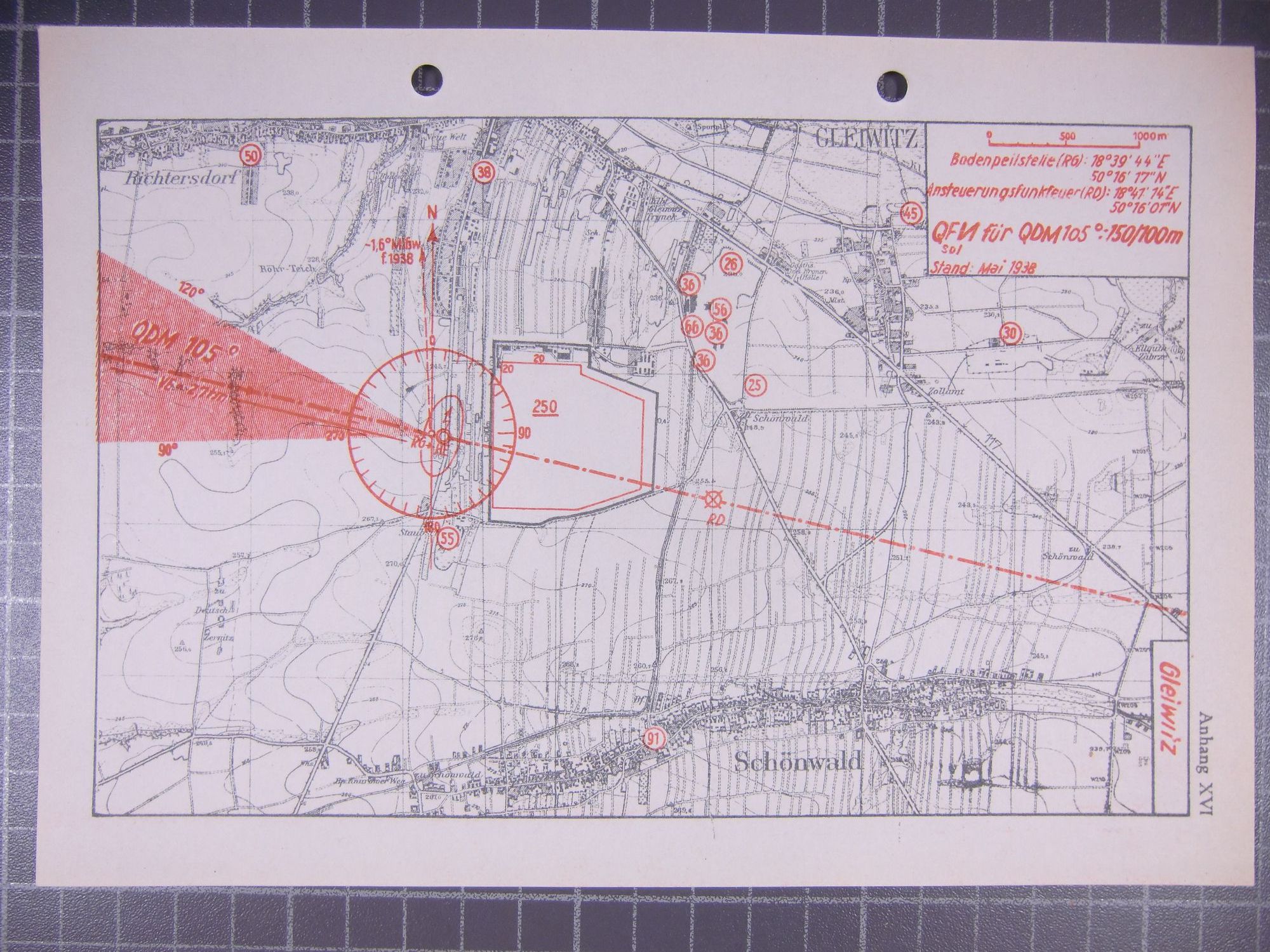

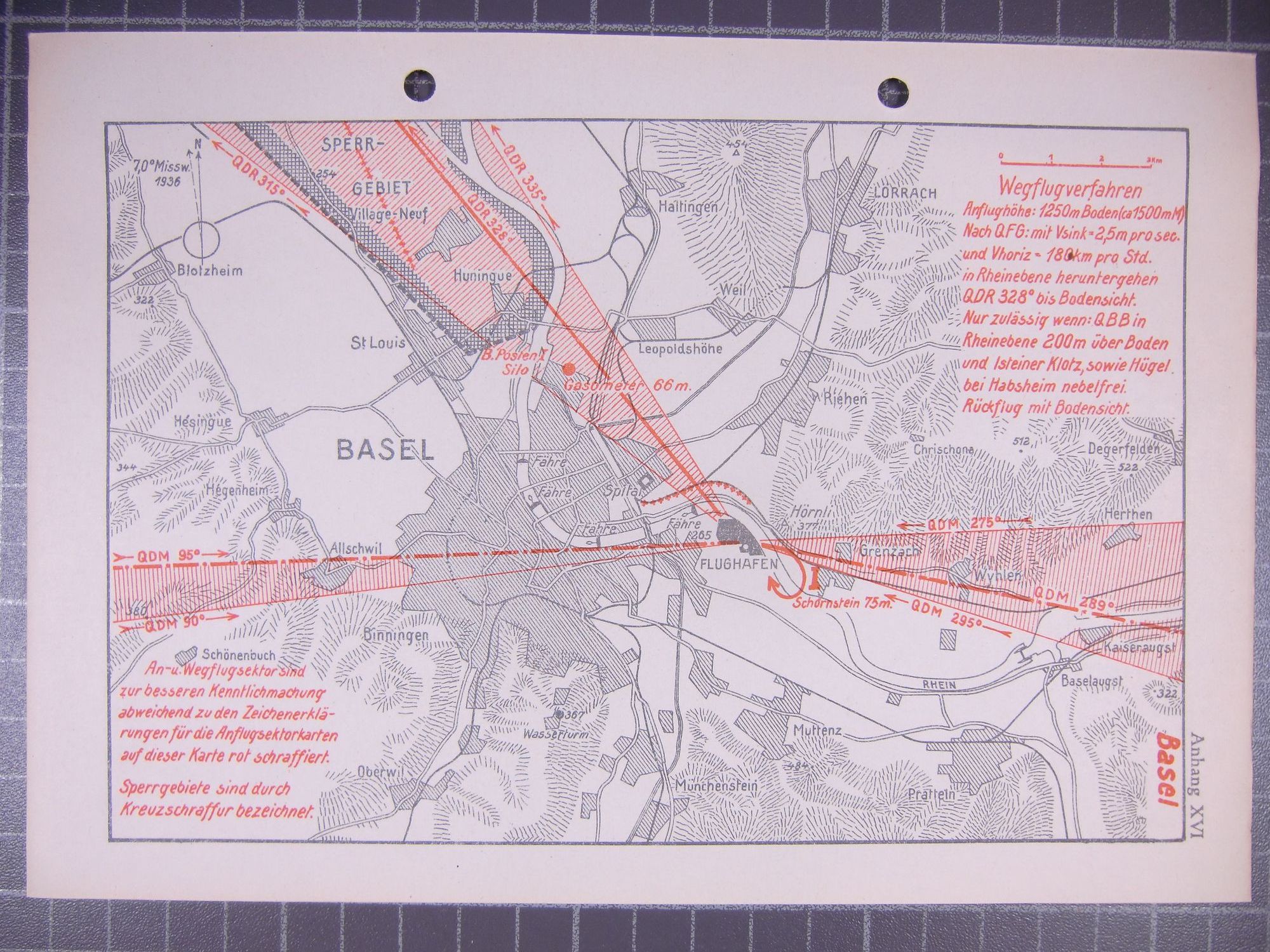

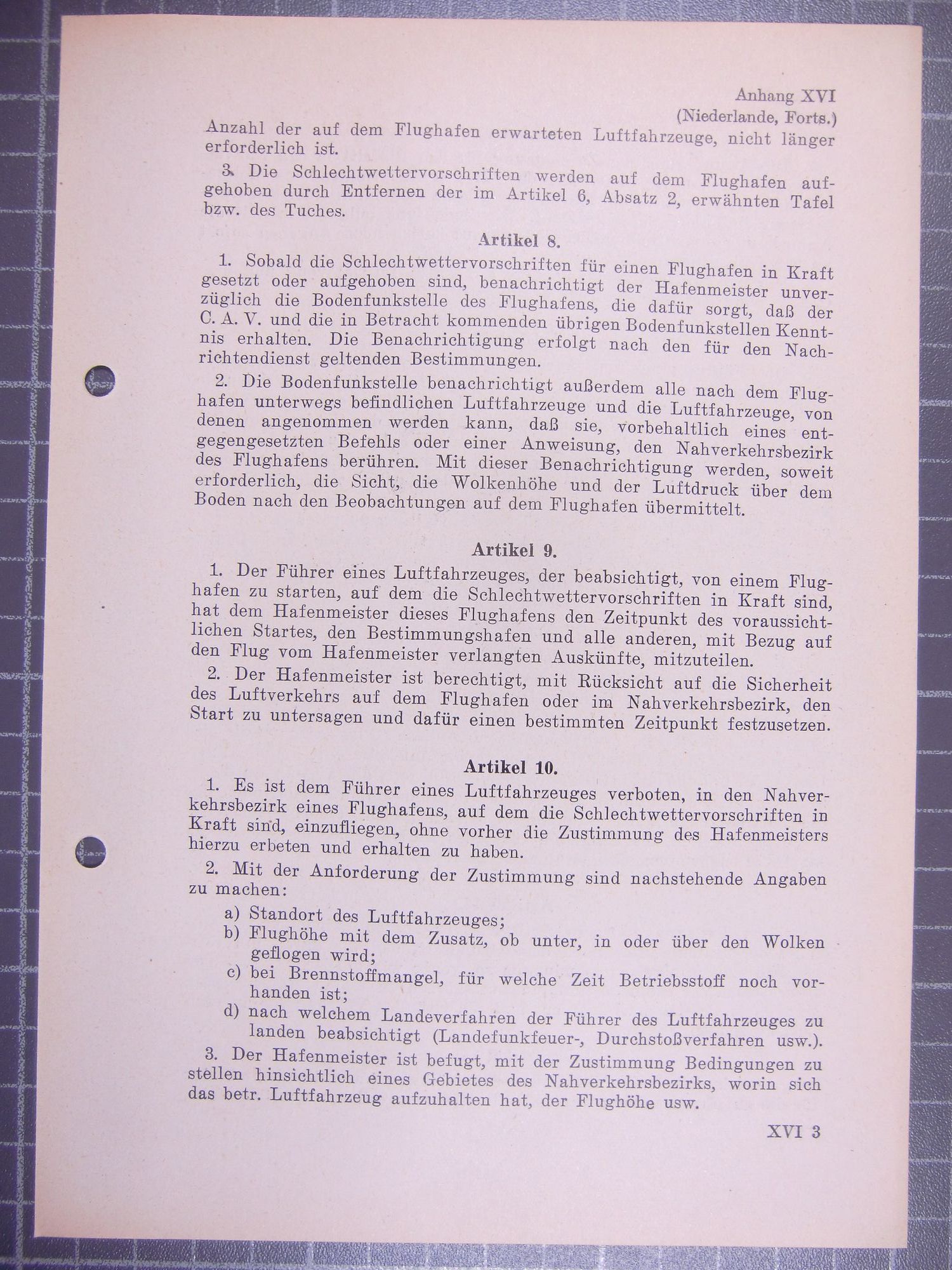

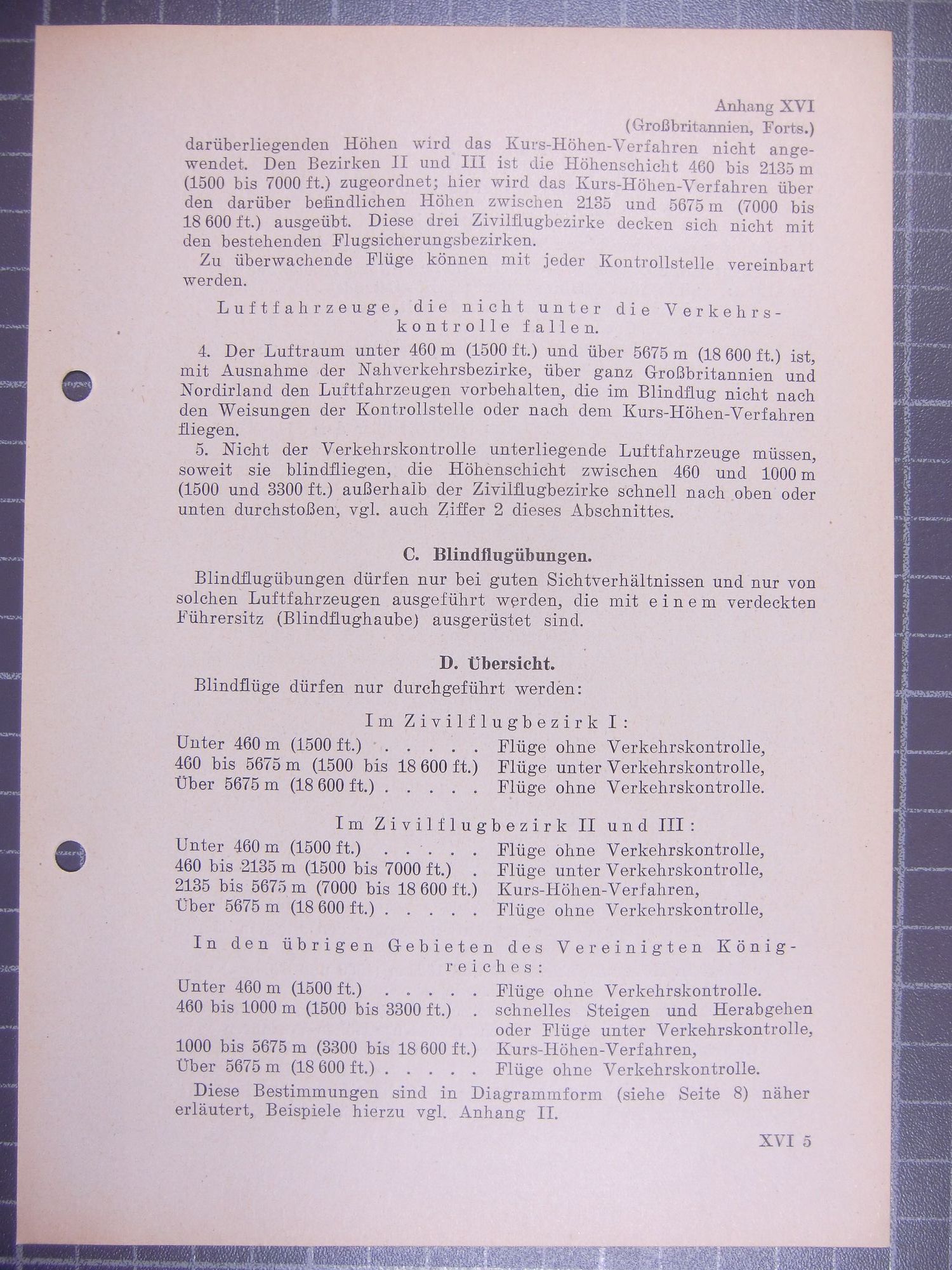

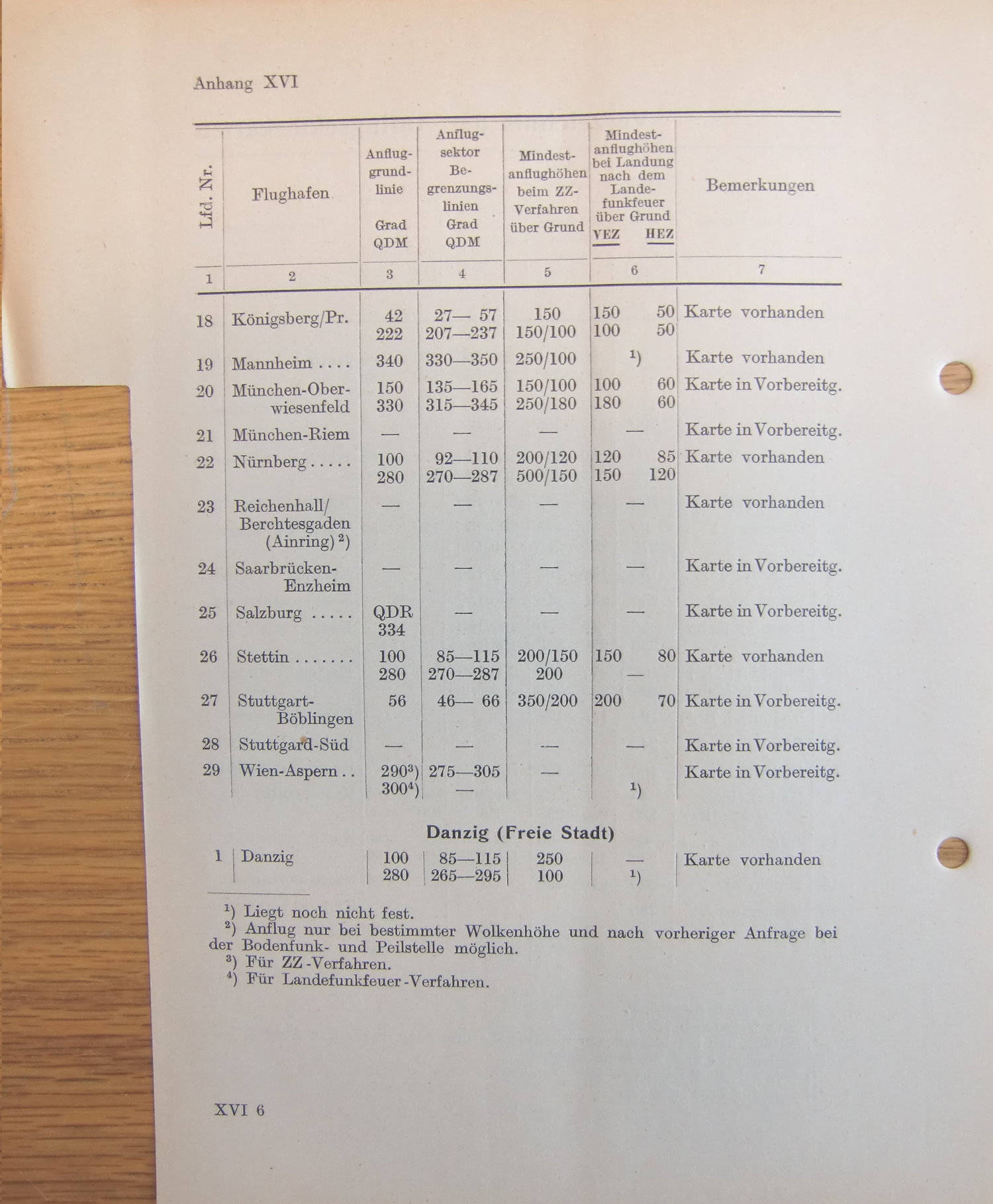

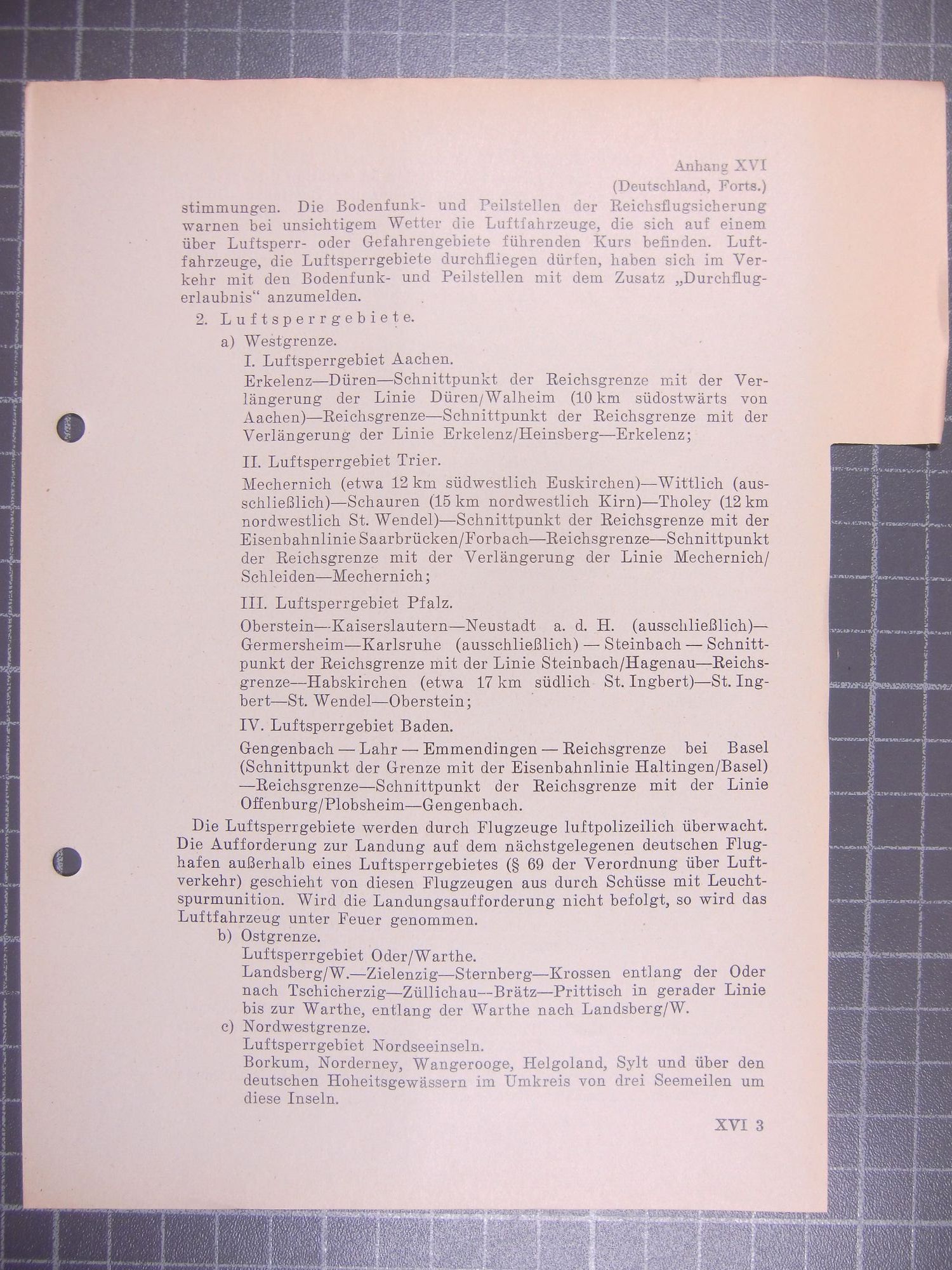

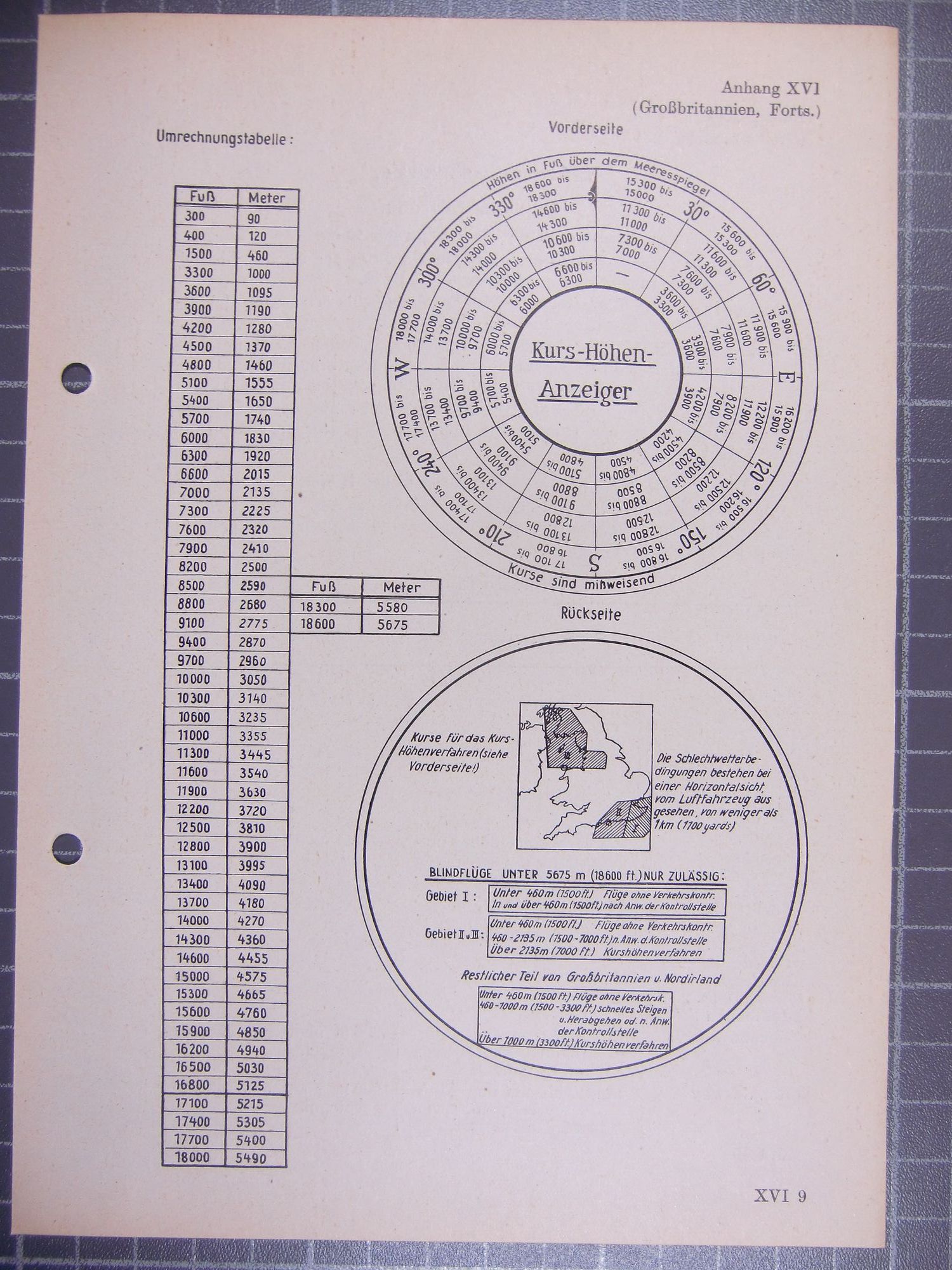

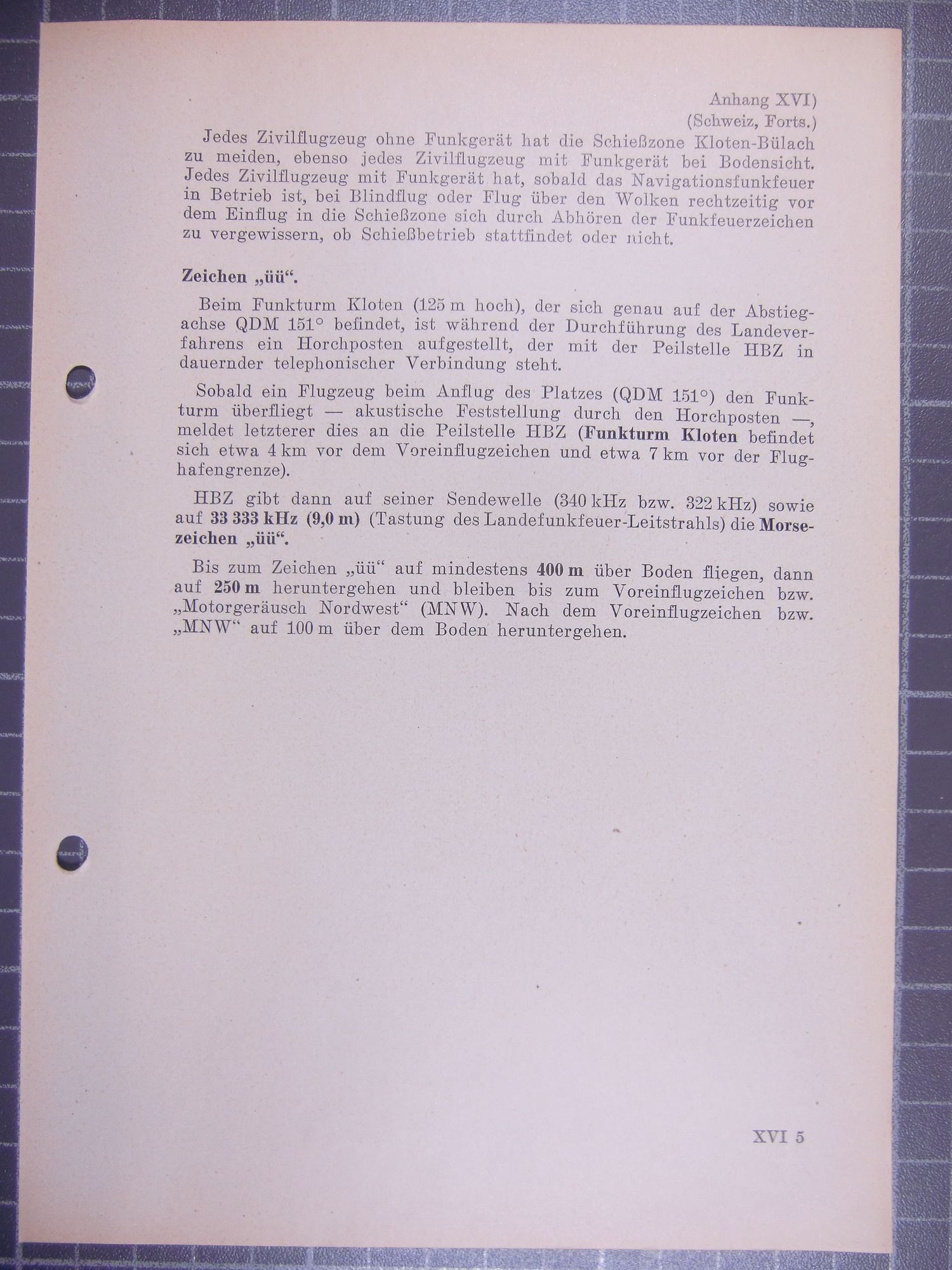

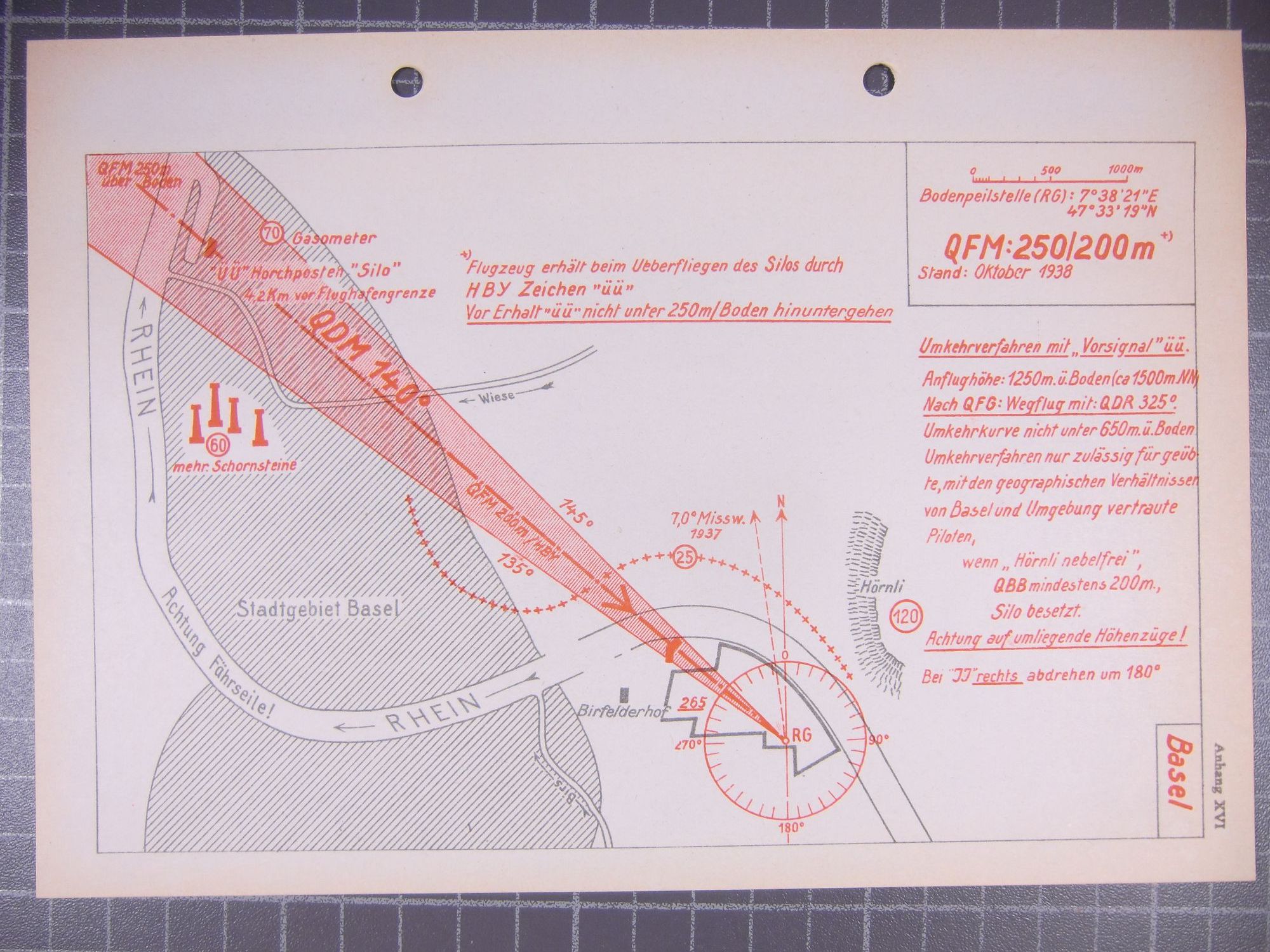

• p001 text Germany • p002 text .. • p003 text .. • p004 text .. • p005 text .. • p006 text .. • p007 text Chart List • p008 text Chart List • p009 map Germany • p010 chart Legend • p011 chart Bremen • p012 chart Breslau • p013 chart Dresden • p014 chart Erfurt-Nord • p015 chart Essen-Mülheim • p016 chart Freiburg • p017 chart Gleiwiz • p018 chart Halle-Leipzig • p019 chart Hamburg • p020 chart Hannover • p021 chart Köln • p022 chart Königsberg • p023 chart Mannheim • p024 chart Nürnberg • p025 chart Reichenhall-Berchtesgaden • p026 chart Stettin • p027 chart Danzig	• p028 text Belgium • p029 text .. • p030 text .. • p031 text .. • p032 text .. • p033 text .. • p034 map Belgium • p035 chart Brüssel • p036 text Denmark • p037 chart Copenhagen-Kastrup • p038 text France • p039 text .. • p040 text .. • p041 text .. • p042 text .. • p043 text .. • p044 text .. • p045 text .. • p046 text .. • p047 text .. • p048 map France • p049 chart Paris-Le Bourget • p050 chart Dijon-Longvic • p051 chart Lyon-Bron • p052 chart Strasbourg-Entzheim • p053 chart Tours-Parcay-Meslay	• p054 text Great Britain • p055 text .. • p056 text .. • p057 text .. • p058 text .. • p059 text .. • p060 text .. • p061 text .. • p062 text .. • p063 text .. • p064 chart Liverpool • p065 text the Netherlands • p066 text .. • p067 text .. • p068 text .. • p069 text .. • p070 text .. • p071 chart Amsterdam • p072 chart Eelde • p073 chart Eindhoven • p074 chart Rotterdam • p075 chart Twente • p076 text Sweden • p077 text ..	• p078 text Switzerland • p079 text .. • p080 text .. • p081 text .. • p082 text .. • p083 text .. • p084 chart Basel • p085 chart Basel • p086 chart Basel • p087 chart Zürich-Dübendorf • p088 chart Zürich-Dübendorf • p089 text Czechoslovakia • p090 text .. • p091 text .. • p092 text .. • p093 text .. • p094 text .. • p095 text Hungary • p096 text .. • p097 text .. • p098 text .. • p099 chart Budapest-Budaörs

Remarks:

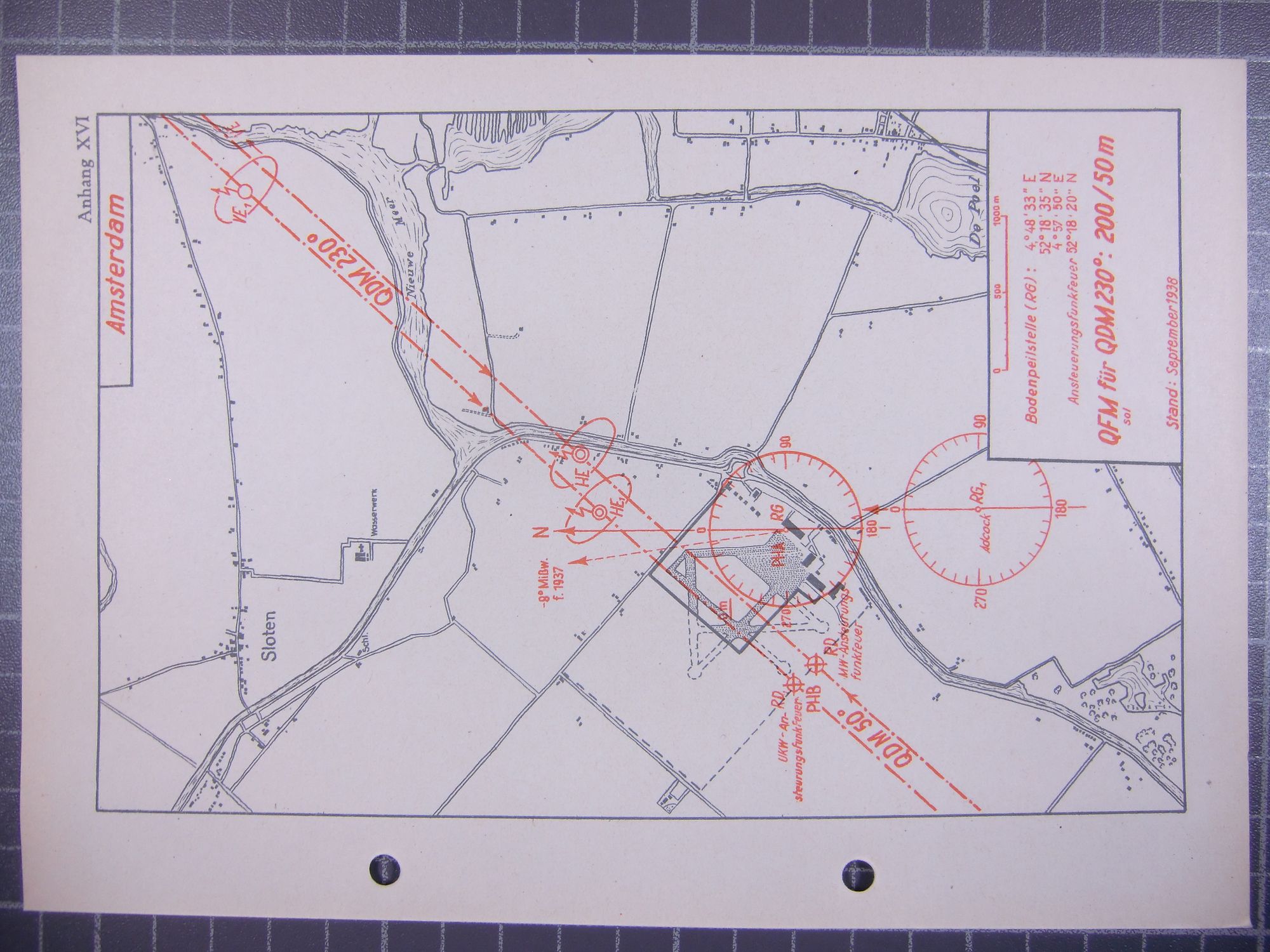

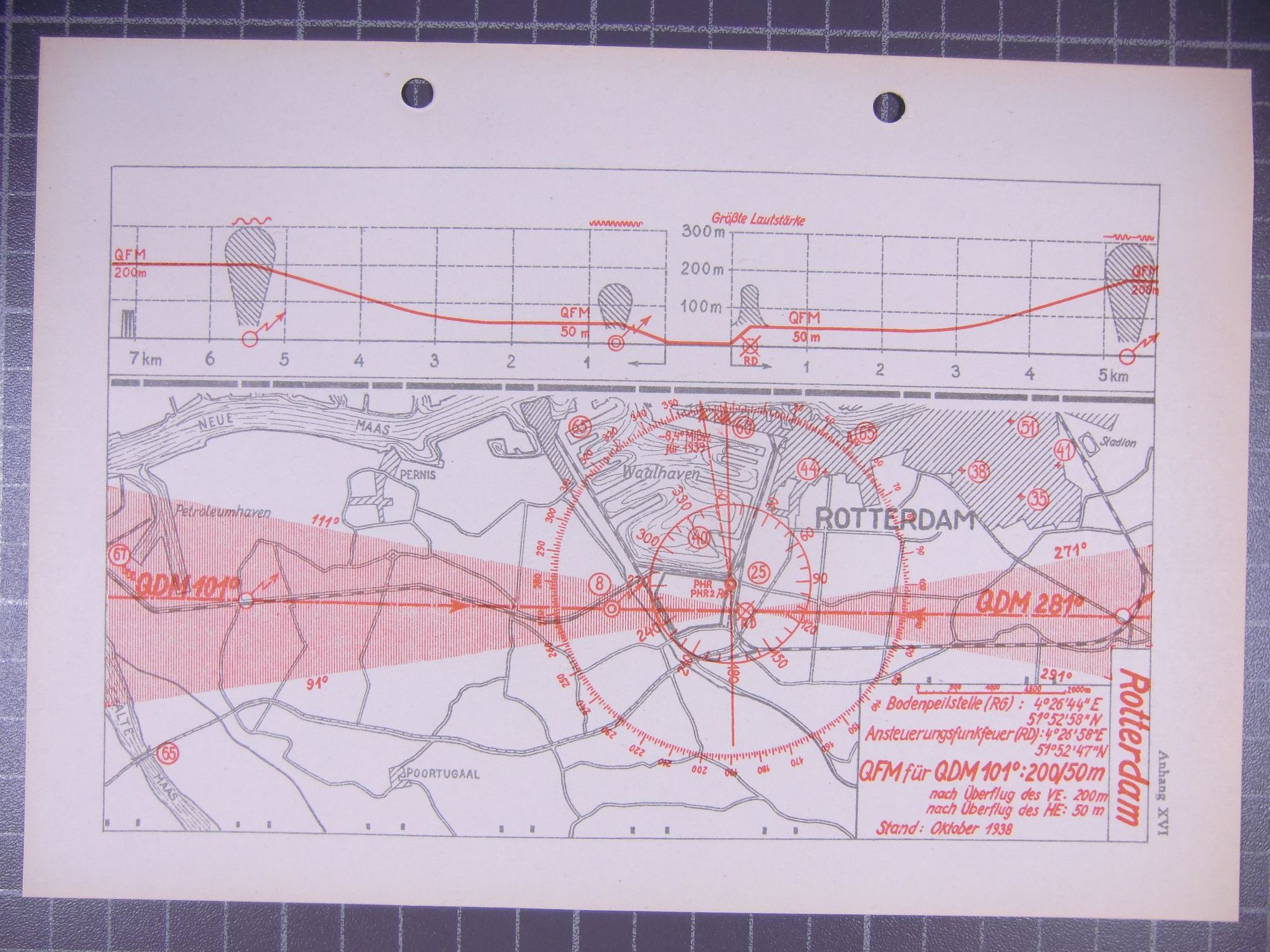

Only Amsterdam had asphalt runways according to the charts.
All other airfields had grass field when the charts were made, pre 1938. Correct?

Charts for several large airports - Berlin, München, Frankfurt,... - were in preparation, see Germany Chart list.

Links. References.

• My earlier webpages on Lorenz/SBA systems, in Swedish. Use web translate!
  • Lorenz system, SBA
  • Lorenz system, airports

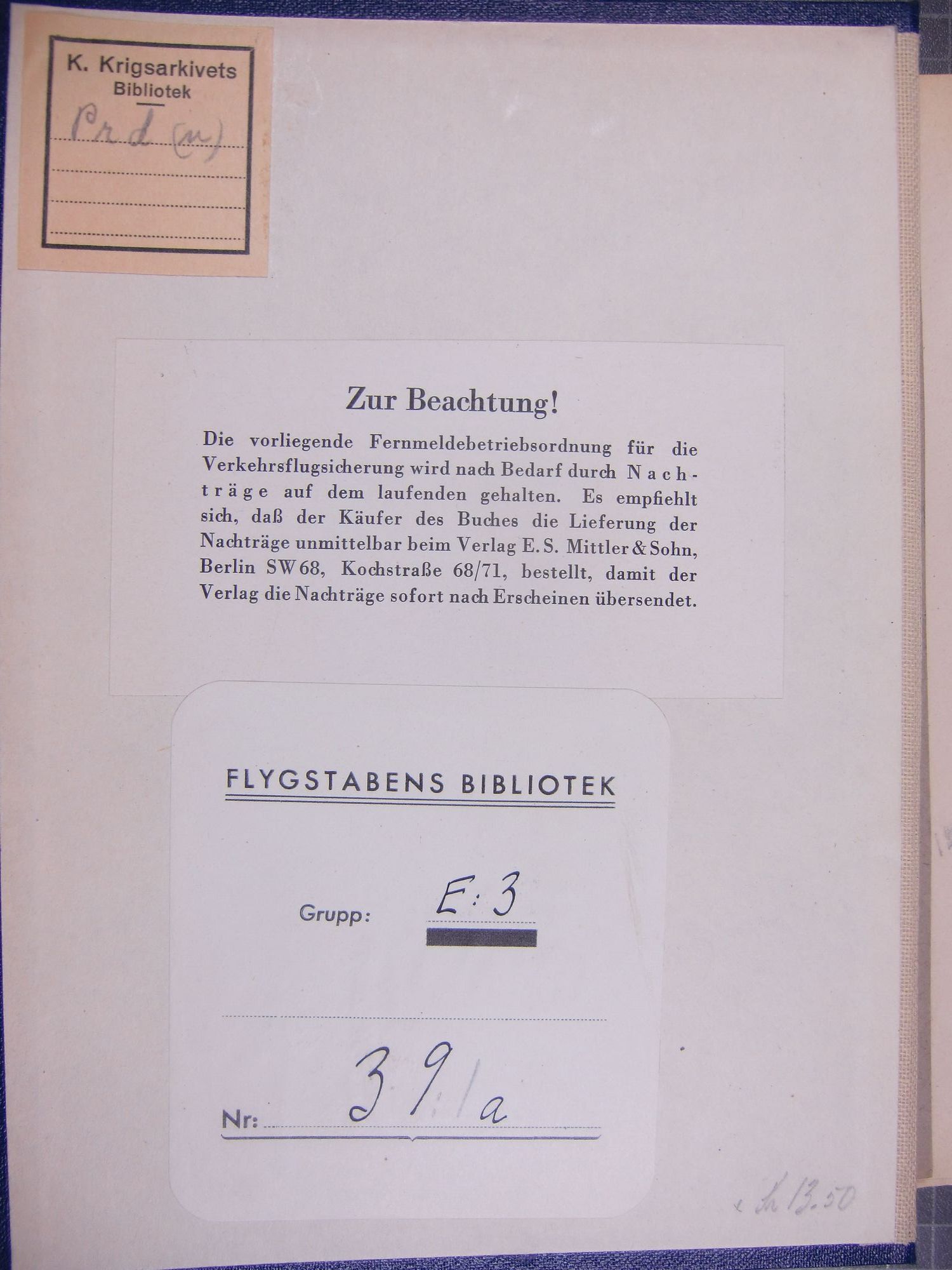

• a. Military Archives, Krigsarkivet Stockholm
    has a well-preserved copy of FBO 1938, in its reference library, Pcd(8).
• b. Flugfunkwesen Teil II, Karl Möbius, 1938. Contains many facts on radio, direction finding, blind landing.
     Remark. Teil I only contains general radio techniques.
• c. "Reichsverband der Deutschen Luftfahrt-Industrie, auf der Luftfahrt-Ausstellung Stockholm 1936"
    A large catalogue for German companies at ILIS 1936, the International Aviation Exhibition in Stockholm.



• Military Airfields in Europe - large collection of historic maps, facts, photos.
  To a large part based on "DoD" = US Department of Defence Archive.
  Also includes landing charts and radio beacons for civilian aviation.
  About Sweden:
  • Sweden: Air Bases and Military Airfields
  • Historical approach and aerodrome charts - Sweden
  • Historical radio beacons, Sweden 1950s
• "Flughandbuch für das Deutsche Reich", 1932 - German airports,
  - scanned into a pdf-file, at Lower Silesian Digital Library, Poland, www.dbc.wroc.pl
• "Internationale Flughandbuch. Atlas 1931", amazon, price £16, paperback, 443 pages.
  Airports included, see list at: • www.pennula.de/airport
  - pennula.de is a large webbsite with historic facts, maps, etc.
  - Airports in Sweden, only 4: Stockholm Lindarängen, Göteborg Torslanda, Malmö Bullofta, Kalmar Ängö.



Page updated 22 Jan 2020, published 13 Jan 2020, Bo Justussson, Stockholm
